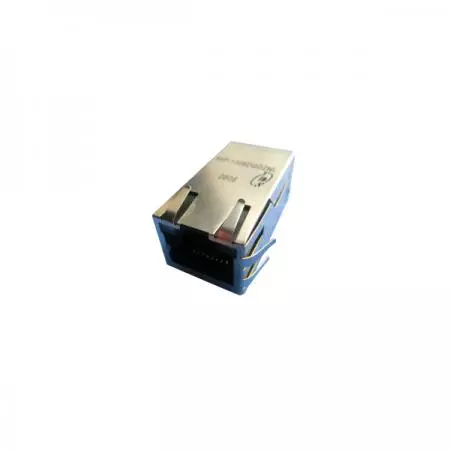

Single Port 2.5G Base-T RJ45 Jack With Magnetics EMI Shielding 1500Vrms Isolation And Optional LED
‹ › Single Port 2.5G Base-T RJ45 Jack with Magnetics EMI Shielding 1500Vrms Isolation and Optional LED
56F(2.5G) Series
2.5GBASE-T 2.5GbE Shielded Magnetic Jack | Tab-Up Design | 1.5KV Isolated | Integrated LED Option For HUB and Telecom equipment
2.5G Base-T Tab up RJ45 Connector with single port. The 12 pin signal pin version is optional. 56F-2.5G series is available in optional LED. Internal magnetics are 100% electrically tested for HI-POT and functionality. Suitable for CAT 5 and 6 Fast Ethernet cables or better UTP.
Designed for specialized mechanical layouts in telecommunications and wireless networks, our Extended Length RJ45 MagJack delivers superior LAN magnetics RJ45 performance. This Compact 2.5G RJ45 connector serves as a High reliability 2.5G MagJack, featuring an Integrated 2.5G Lan filter RJ45 and RJ45 with 2.5G transformer. As a versatile RJ45 ICM, it includes Optional LED 2.5G RJ45 configurations to suit diverse HUBs and VoIP systems. Trust our Custom 2.5G RJ45 magnetics, OEM RJ45 magjack, and ethernet RJ45 connector with magnetics to provide robust, high-speed data transmission for professional IP cameras.
The RJ45 connector products of Yuan Dean are RoHS-compliant, and can be customized for products.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
Features
- 1x1 Tab-UP, 1" Long RJ45 with internal magnetics.
- 12pin signal pin versions available.
- Available with LEDs.
- Suitable for CAT 5 & 6 fast ethernet cable or better UTP.
- Internal magnetics are 100% electrically tested for HI-POT and functionality.
Applications
- Telecom equipment.
- HUB.
- Wireless router station.
- VoIP device.
- Video camera.
Electrical Specifications@25°C; Operating Temperature -40°C to 85°C
| Part Number | Turns Ratio (±3%) | LEDs | Insertion Loss (dB MAX) | Return Loss (dB MIN) | Crosstalk (dB TYP) | ||
|---|---|---|---|---|---|---|---|
| L/R | 1-200 MHz | 1-40 MHz | 40-200 MHz | 1-125 MHz | 125-200 MHz | ||
| 56F- 1804DDDZ2NL | 1CT: 1CT | G&O/ G&O | -2.0 | -20 | -20+15log(f/40MHz) | -30 | -25 |
| Part Number | CDMR (dB TYP) | CMR (dB TYP) | DCMR (dB TYP) | Hipot (Vrms) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 1 MHz | 50 MHz | 100 MHz | 200 MHz | 1-50 MHz | 125 MHz | 200 MHz | 10 MHz | 10-200 MHz | @60Hz | |
| 56F- 1804DDDZ2NL | -30 | -30 | -27 | -24 | -35 | -30 | -27 | -48 | -48+19log(f/10MHz) | 1500 |
Certification

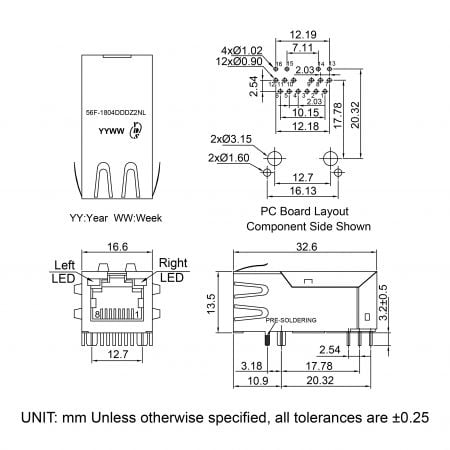

- Mechanicals and Dimensions Related Products Files Download
-
-
