100/1000Base-T Gigabit RJ45 Jack | 2250VDC Isolated | Through Hole Magnetics
‹ › 100/1000Base-T Gigabit RJ45 Jack | 2250VDC Isolated | Through Hole Magnetics
48F Series
Gigabit Magnetic Connector | 1G Base-T | 2250 VDC Isolation | TAB DOWN | Single Port DIP For Telecom、HUB、Wireless router station and VoIP device equipment

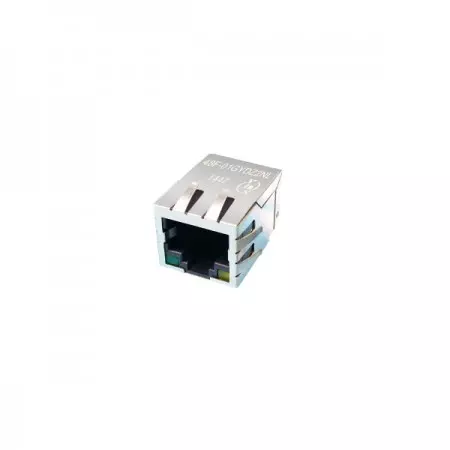

Single port 100/1000 Base-T Tab down RJ45 jack with magnetics. Minimum 2250VDC isolation for this product. 350 μH minimum OCL with 8 mA bias current. 48F series has passed UL 60950-1 safety certification.
As a professional provider, we offer Magnetic RJ45 Connector and RJ45 Modular Jack with Filter solutions. Our product range includes RJ45 Magnetic Module, Integrated 1G Base-T Magnetics, and Single Port Gigabit MagJack. These RoHS/REACH Compliant Gigabit RJ45 MagJack and RJ45 Jack with Integrated Filter components feature Gigabit RJ45 with LED and are UL 60950-1 Certified RJ45 Jack. We also provide Custom Gigabit RJ45 Connector designs for telecom equipment, HUBs, wireless networks, VoIP, and cameras.
The RJ45 connector products of Yuan Dean are RoHS-compliant, and can be customized for products.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
Features
- Single port Tab-Down with internal magnetics for 1000Base-T.
- 350uH minimum OCL with 8mA bias current.
- Internal magnetics options available.
- Minimum 2250VDC isolation.
- Recognized by UL 60950-1.
Applications
- Telecom equipment.
- HUB.
- Wireless router station.
- VoIP device.
- Video camera.
Electrical Specifications@25°C; Operating Temperature 0°C to 70°C
| Part Number | Turns Ratio (±5%) | Insertion Loss (dB MAX) | Return Loss (dB MIN @100W ± 15Ω) | |||
|---|---|---|---|---|---|---|
| 0.3-100MHz | 1-30 MHz | 40 MHz | 50 MHz | 60-80 MHz | ||
| 48F-01ND2NL | 1CT: 1CT | -1.2 | -16 | -13.5 | -11.5 | -10 |
| 48F-01GYDS2NL | 1CT: 1CT | -1.2 | -16 | -13.5 | -11.5 | -10 |
| 48F-01GYDP2NL | 1CT: 1CT | -1.2 | -16 | -13.5 | -11.5 | -10 |
| Part Number | Differential to Common Mode Rejection (dB MIN) | Cross Talk (dB MIN) | Hipot (VDC) | ||||
|---|---|---|---|---|---|---|---|
| 30 MHz | 60 MHz | 100 MHz | 30 MHz | 60 MHz | 100 MHz | ||
| 48F-01ND2NL | -35 | -32 | -30 | -40 | -36 | -30 | 2250 |
| 48F-01GYDS2NL | -35 | -32 | -30 | -40 | -36 | -30 | 2250 |
| 48F-01GYDP2NL | -35 | -32 | -30 | -40 | -36 | -30 | 2250 |
Certification

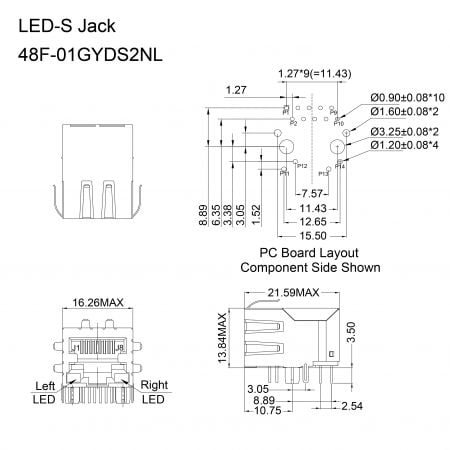

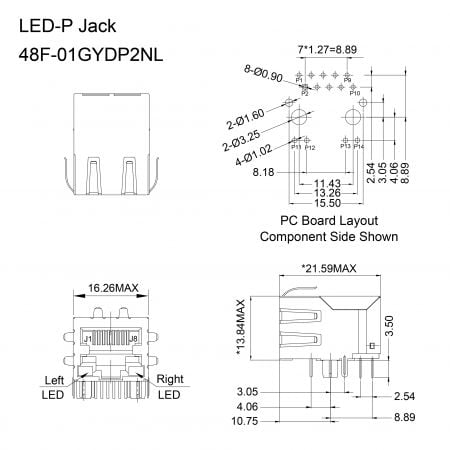

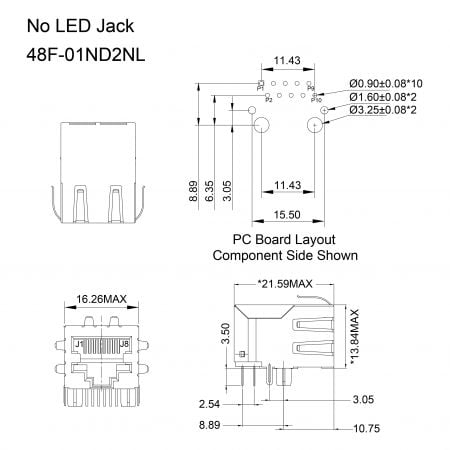

- Mechanicals and Dimensions Related Products Files Download
-
-
