Single Port 10G Base-T RJ45 Jack With Magnetics EMI Shielding 1500Vrms Isolation And Optional LED

Single Port 10G Base-T RJ45 Jack With Magnetics EMI Shielding 1500Vrms Isolation And Optional LED ‹ ›
Single Port 10G Base-T RJ45 Jack With Magnetics EMI Shielding 1500Vrms Isolation And Optional LED
Product Features

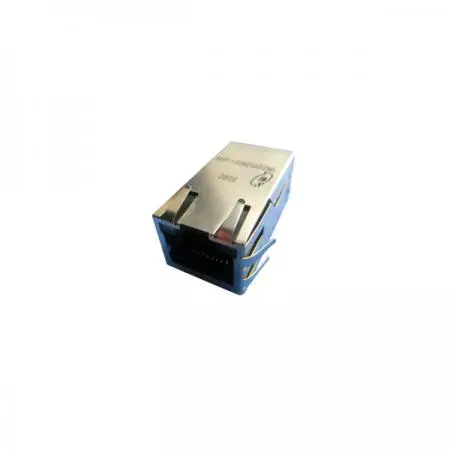

Single Port 10G Base-T RJ45 Jack with Magnetics EMI Shielding 1500Vrms Isolation and Optional LED

56F(10G) Series

10GBASE-T 10GbE Shielded Magnetic Jack | Tab-Up Design | 1.5KV Isolated | Integrated LED Option For HUB and Telecom equipment

10G Base-T single port Tab up RJ45 jack with magnetics. The 16 pin signal pin version is optional. 56F-10G series is available in optional LED. Internal magnetics are 100% electrically tested for HI-POT and functionality. Suitable for CAT 5 and 6 Fast Ethernet cables or better UTP.

Upgrade your network performance with our Integrated 10G Lan filter RJ45 technology, specifically engineered for high-bandwidth telecommunications and IP cameras. This Industrial grade 10G RJ45 solution acts as a High reliability 10G MagJack, featuring an Optional LED 10G RJ45 and RJ45 with 10G transformer within a Compact 10G RJ45 connector housing. Our RJ45 ICM (Integrated Connector Module) is the preferred OEM RJ45 magjack for VoIP and wireless networks. Trust our Custom 10G RJ45 magnetics and ethernet RJ45 connector with magnetics to deliver seamless 10Gbps connectivity for modern HUBs and networking devices.

The RJ45 connector products of Yuan Dean are RoHS-compliant, and can be customized for products.

Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!

Single Port 10G Base-T RJ45 Jack with Magnetics(56F-10G Series) | Shielded 10 Gigabit RJ45 with Integrated Magnetics | High Speed 10GbE RJ45 Connector
Features
  • 1x1 Tab-UP, 1" Long RJ45 with internal magnetics.
  • 16pin signal pin versions available.
  • Available with LEDs.
  • Suitable for CAT 5 & 6 fast ethernet cable or better UTP.
  • Internal magnetics are 100% electrically tested for HI-POT and functionality.
Applications
  • Telecom equipment.
  • HUB.
  • Wireless router station.
  • VoIP device.
  • Video camera.
Electrical Specifications@25°C; Operating Temperature 0°C to 70°C
Part Number Turns Ratio
(±3%)		 LEDs Insertion Loss
(dB MAX)		 Return Loss
(dB MIN)		 Crosstalk
(dB TYP)		 DCMR
(dB TYP)		 Hipot
(Vrms)
L/R 1-100
MHz		 100-400
MHz		 1-100
MHz		 100-200
MHz		 200-400
MHz		 400-500
MHz		 1-100
MHz		 100-500
MHz		 1-250
MHz		 250-500
MHz		 @60Hz
56F-1602DGD2NL 1CT: 1CT G&Y/G -2.0 -3.0 -13 -10 -7 -6 -28 -19 -30 -22 1500
56F-1604DGD2NL 1CT: 1CT G&Y/G -2.0 -3.0 -13 -10 -7 -6 -28 -19 -30 -22 1500
Electrical Specifications@25°C; Operating Temperature -40°C to 85°C
Part Number Turns Ratio
(±3%)		 LEDs Insertion Loss
(dB MAX)		 Return Loss
(dB TYP)		 Crosstalk
(dB TYP)		 CMR
(dB TYP)		 Hipot
(Vrms)
L/R 1-400
MHz		 1-40
MHz		 40-500
MHz		 1-100
MHz		 100-500
MHz		 1-250
MHz		 250-500
MHz		 @60Hz
56F-1601DGDZ2NL 1CT: 1CT G&Y/G -2.0 -22 -17+18.27log(f/100MHz) -30 -20 -30 -22 1500
Certification

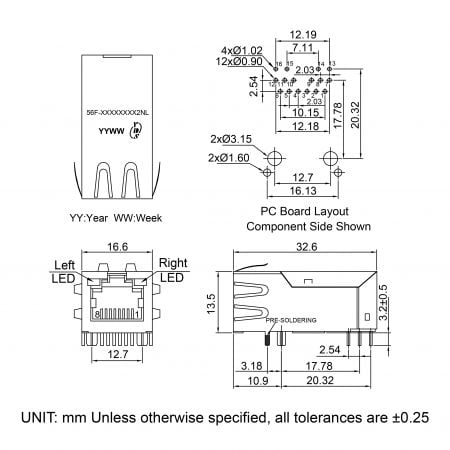

Mechanicals and Dimensions Related Products Files Download
