Home » Products » RJ45 Connector » 1 x 1 Integrated » RJ45 Jack With Magnetics, 10 Base-T, Single Port

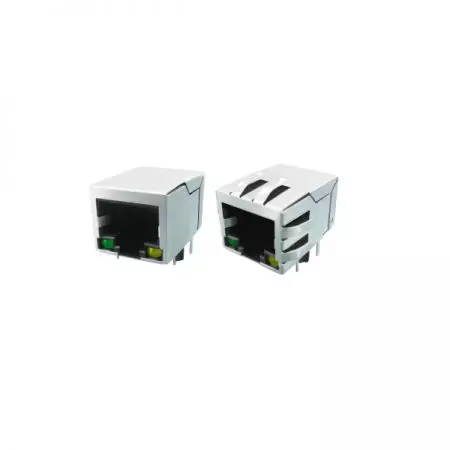

RJ45 Jack With Magnetics, 10 Base-T, Single Port

RJ45 Jack With Magnetics, 10 Base-T, Single Port ‹ ›
RJ45 Jack With Magnetics, 10 Base-T, Single Port
Product Features

RJ45 Jack with Magnetics, 10 Base-T, Single Port

12F/14F-1X Series

RJ45 Connector With 10 Base-T Magnetics For Telecom、HUB and Wireless router equipment

Single port 10 Base-T RJ45 connector integrated with filter features Tab down type and short-circuit protection. Size of 12F/14F-1X series same as RJ45 connector to save PCB board space. The operating temperature range is from 0°C to +70°C, and the storage temperature range is from -40°C to +85°C.

10 Base-T RJ45 Connectors with integrated transformers. Our MagJack and RJ45 modular jacks with filters (8P8C magnetic jacks) provide reliable Ethernet solutions for cameras, telecom/datacom, VoIP equipment, and HUBs.

The RJ45 connector products of Yuan Dean are RoHS-compliant, and can be customized for products.

Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!

Single Port 10 Base-T RJ45 Jack With Magnetics(12F/14F-1X Series) | Industrial Grade RJ45 | Filtered RJ45 Jack
Features
  • RJ45 connector integrated with filter.
  • Size same as RJ-45 connector to save PCB board space.
  • Reduce EMI radiation, Improve EMI performance.
  • Operating temperature range: 0°C to +70°C.
  • Storage temperature range: -40°C to +85°C.
Applications
  • Telecom equipment.
  • HUB.
  • Wireless router station.
  • VoIP device.
  • Video camera.
Electrical Specifications@25°C; Operating Temperature 0°C to 70°C
Part
Number		 Insertion Loss
(dB MAX.)		 Attenuation
TX / RX (dB MIN)		 Return Loss
TX & RX @100Ω ± 15Ω
(dB MIN)		 Cross Talk
(dB MIN)		 CMR
(dB MIN)		 Mech. Turns Ratio
TX / RX
(± 5%)
1-10
MHz		 20
MHz		 25
MHz		 30
MHz		 40
MHz		 1-10
MHz		 5-10
MHz		 1-10
MHz		 30
MHz
14F-
10NW2NL		 -1.0 -7 / -5 -18/-11 -28/-16 -33/-26 - -13.5 -30 -30 A 1CT: 1.41/
1CT: 1
12F-
10EGYDSNW2NL		 -1.0 -5/-4.2 -18/-11 -28/-16 -33/-26 - -14 -30 -30 B 1CT: 1CT
12F-
11YGD2NL		 -1.0 - - -30/-18 - -15 - -30 - C 1CT: 1.41CT/
1CT: 1CT
12F-
15BPND2NL		 -1.0 -7/-6 -19/-14 -30/-20 -32/-31 - -15 -30 - D 1CT: 1CT
Certification

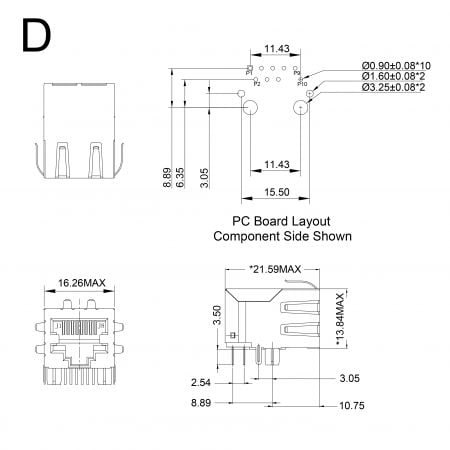

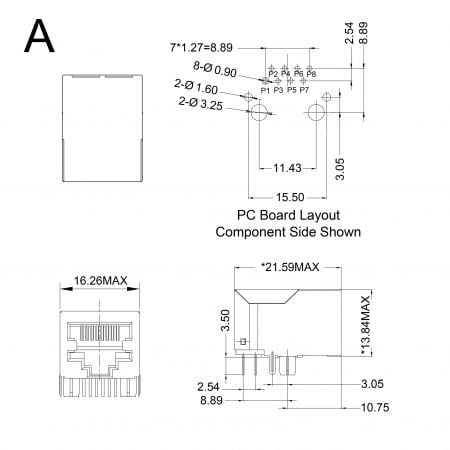

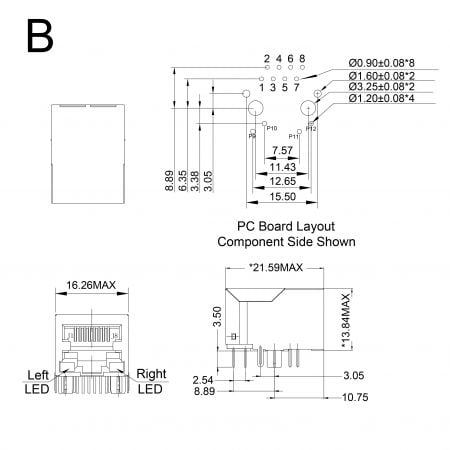

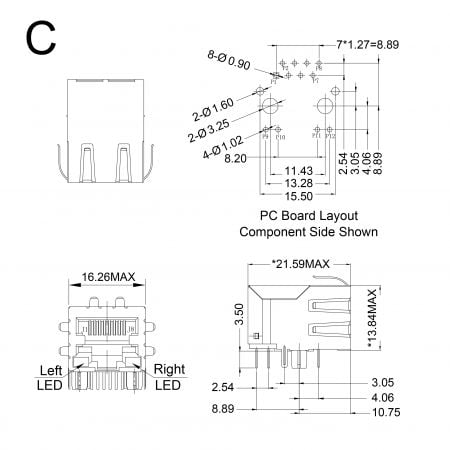

Mechanicals and Dimensions Related Products Files Download
