SMD6 T3/DS3/E3/STS-1 Interface Transformer, 1500Vrms Isolated
‹ › SMD6 T3/DS3/E3/STS-1 Interface Transformer, 1500Vrms isolated
15TB Series

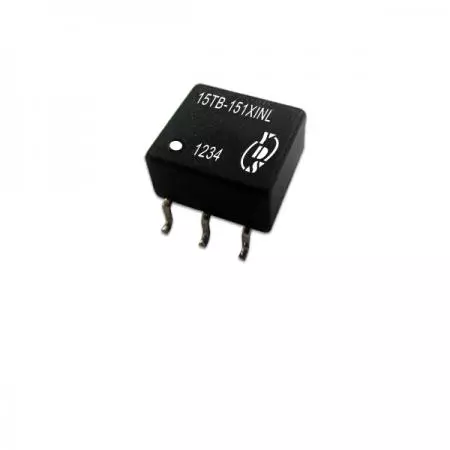

SMD6 T3/DS3/STS-1 Interface Transformer, 1.5KVrms isolated For industrial control and telecom equipment
1.5K Vrms isolation voltage T3/DS3/STS-1 interface telecom transformer has fast rise time compatible with standards. There are through hole and surface mount packages to choose from. Models with 1500 Vrms isolation reinforced insulation per BABT EN41003/EN60950. 15TB series is recognized by UL 1950.
High-performance telecom interface transformers and wideband line transformers for central office switching. These high reliability SMD telecom transformers and industrial grade magnetics are RoHS/REACH compliant, providing superior line interface unit magnetics for networking, computers, and telecommunications.
Yuan Dean can provide high efficiency production solutions and customized products.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
Features
- Return loss meets requirements.
- Through hole and surface mount packages available.
- Models with 1500Vrms isolation reinforced insulation per BABT EN41003/EN60950.
- Recognized by UL 1950.
Applications
- computer equipment.
- Internet equipment.
- industrial control.
- telecom equipment.
Test Conditions
- Inductance----------------100KHz/0.1V.
- Leakage Inductance----100KHz/0.1V.
Electrical Specifications@25°C; Operating Temperature -40°C to 85°C
| Part Number | Turns Ratio (± 3%) | OCL Primary (mH min.) | LL (uH max) | Cw/w (pF max) | Isolation Voltage (Vrms min) | Package Schematic | Primary Pins |
|---|---|---|---|---|---|---|---|
| 15TB-1011XENL | 1:1 | 100 | 0.11 | 10 | 1500 | E | 1-3 |
| 15TB-801XMNL | 1CT:1CT | 800 | 0.35 | 30 | 1500 | M | 1-3 |
Certification

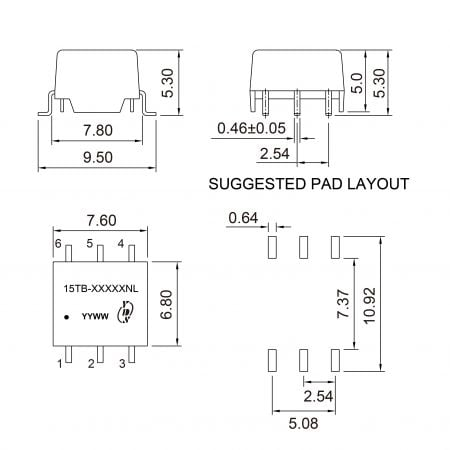

- Mechanicals and Dimensions Related Products Files Download
-
-
