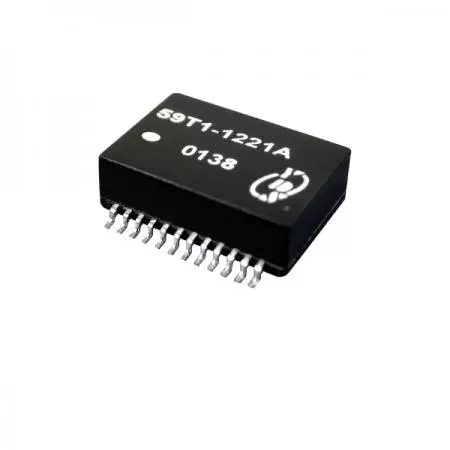

SMD24 Quad Ports T1/E1/ISDN-PRI Interface Transformer With 1500Vrms Isolation
‹ › SMD24 Quad Ports T1/E1/ISDN-PRI Interface Transformer with 1500Vrms Isolation
59T1 Series
4-Port T1/E1/PRI Magnetic Module | 1.5KV Isolated | 24-Pin SMD Surface Mount | Transceiver Line Interface For industrial control and Internet equipment
Surface mount telecom transformer has dual port line interface modules for estate sensitive T1,E1,Pri ISDN and CEPR applications. 59T1 series features 1500Vrms isolation voltage and is recognized by UL 1950.
Our High Density T1/E1 Magnetic Solution is specifically engineered for modern computer equipment and industrial control, acting as a reliable transformer for communication equipment. This surface mount telecom transformer range includes Dual Port T1/E1 Telecom Transformer Module and Quad Magnetic Module for T1/E1 options to optimize networking devices. Each T1/E1/CEPT/ISDN-PRI Transformer is a UL 1950 Certified Telecom Transformer, ensuring top-tier safety as an SMD T1/E1 Isolation Transformer. Whether you need RoHS Compliant T1/E1 Magnetics, Custom T1/E1 Magnetic Modules, or a Telecom Isolation Transformer for ISDN-PRI, our solutions provide the precision required for telecommunications.
Yuan Dean can provide high efficiency production solutions and customized products.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
Features
- Isolation Voltage:1500Vrms.
- Recognized By UL 1950.
Applications
- computer equipment.
- Internet equipment.
- industrial control.
- telecom equipment.
Electrical Specifications@25°C; Operating Temperature 0°C to 70°C
| Part Number | Turns Ratio (± 5%) | OCL (mH min.) | LL (uH MAX) | Cw/w (pF MAX) | DCR Pri (Ω Max) | Primary Pins | ||
|---|---|---|---|---|---|---|---|---|
| TX | RX | TX | RX | |||||
| 59T1-152AD1NL | 1CT : 2CT | 1CT : 2CT | 1.5 | 0.5 | 35 | 0.8 | 4-6,10-12 | 1-3,7-9 |
| 59T1-152BD1NL | 1CT : 2.42CT | 1CT : 2.42CT | 1.5 | 0.5 | 35 | 0.8 | 4-6,10-12 | 1-3,7-9 |
| 59T1-152CD1NL | 1CT : 1.36CT | 1CT : 1.36CT | 1.5 | 0.5 | 35 | 0.8 | 4-6,10-12 | 24-22,18-16 |
| 59T1-152DD1NL | 1CT : 2CT | 1CT : 2CT | 1.5 | 0.5 | 35 | 0.8 | 1-3,10-12 | 21-19,18-16 |
| 59T1-152ED1NL | 1CT : 1.36CT | 1CT : 2CT | 1.5 | 0.5 | 35 | 0.8 | 4-6,10-12 | 24-22,18-16 |
Certification

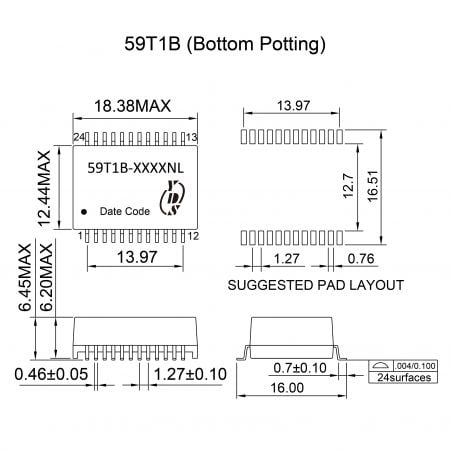

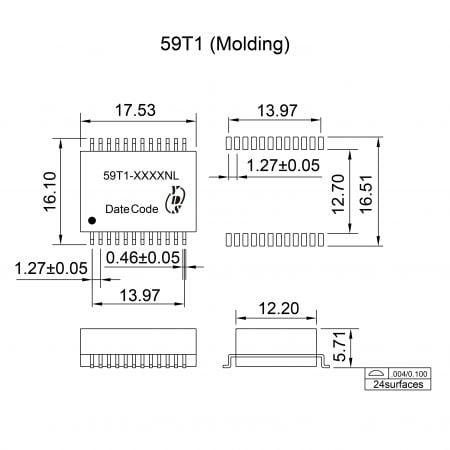

- Mechanicals and Dimensions Related Products Files Download
-
-
