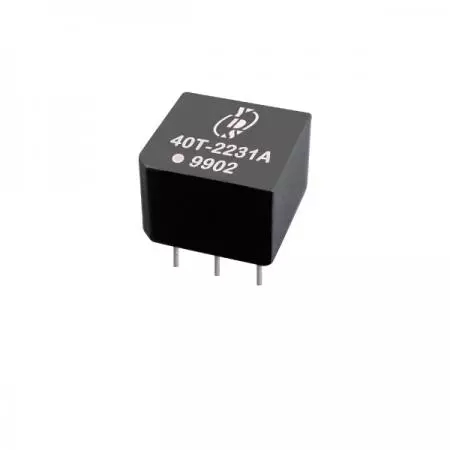

ISDN-S0 Interface Transformer, 2KVrms Isolation, DIL Package

ISDN-S0 Interface Transformer, 2KVrms Isolation, DIL Package ‹ ›
ISDN-S0 Interface Transformer, 2KVrms Isolation, DIL Package
Product Features

ISDN-S0 Interface Transformer, 2KVrms Isolation, DIL Package

40T Series

DIL6、DIL7、DIL8 Isolated Transformer For telecom ISDN-S0 Interface equipment

Telecom transformer is designed for ISDN applications.

40T series has excellent longitudinal balance and 2KVrms isolation voltage. This series is recognized by UL 1950.

As a professional ISDN Transformer Manufacturer, we offer Industrial Grade THT ISDN Transformer in a DIL Package Telecom Transformer. Our High Reliability Telecom Transformer and Digital Network Interface Transformer are UL 1950 Certified Transformer and Safety Isolated Telecom Transformer, featuring Lead-Free ISDN Magnetics. These RoHS/REACH Compliant Telecom Transformer solutions are ideal for computer equipment, networking, industrial control, and telecom devices.

Yuan Dean can provide high efficiency production solutions and customized products.

Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!

ISDN-S0 Interface 2KVrms Isolation Telecom Product(40T Series) | High isolation telecom transformer | High reliability telecom components
Features
  • Excellent longitudinal balance.
  • 2KVrms voltage isolation.
  • Recognized by UL 1950.
Applications
  • computer equipment.
  • Internet equipment.
  • industrial control.
  • telecom equipment.
Test Conditions
  • Inductance ------------------10KHZ/200mV.
  • Leakage Inductance --------100KHZ/1V.
  • Interwinding Capacitance --1MHZ/1V.
Electrical Specifications@25°C
Part Number Ratio
(± 2%)		 OCL Pri.
(mH min.)		 LL Sec.
(uH max.)		 CW/W
(pf max.)		 CD Pri.
(pf max.)		 DCR Pri.
(Ω ± 15%)		 DCR Sec.
(Ω ± 15%)		 Δ Idc
(mA max.)
40T-2231ANL 1CT:1CT 22 5 100 40 2.4 2.4 1
40T-2232BNL 1CT:1.8CS 22 15 100 140 2.5 4.2 1
40T-2233ANL 1CT:2CT 22 15 100 80 2.3 4.0 1
40T-2234BNL 1CT:2.5CS 22 20 100 290 2.5 5.8 1
40T-2235CNL 1CS:2.5CS 22 15-40 100 290 2.5 5.8 1
40T-2236ANL 1CT:2CT 22 11 100 180 2.5 5.0 1
Certification

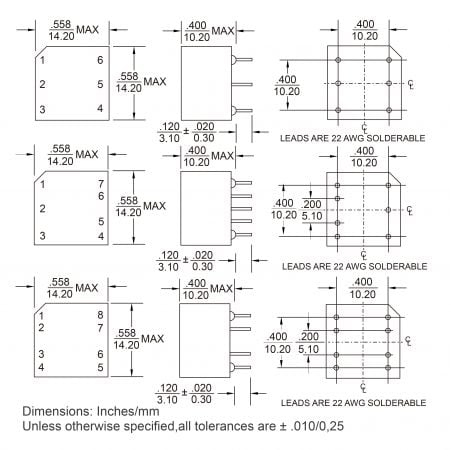

Mechanicals and Dimensions Related Products Files Download
