50T Series

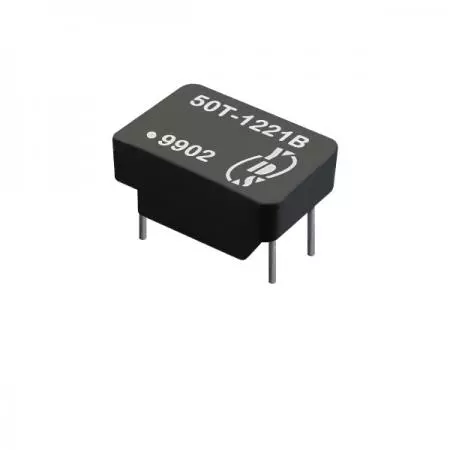

T1 Carrier Magnetic Transformer | 1.5KV Isolation | 6-Pin DIL/DIP For T1/CEPT Telecom applications
T1 carrier interface 1.5KVrms isolation transformer is designed for T1/CEPT telecom applications. 50T series features compact single and dual packages. This series is designed to meet CCITT 7 & FCC and is recognized by UL 1950.
As a professional telecom transformer manufacturer, we provide the 50T Series with high reliability communication transformer solutions. This PCB Mount Transformer range includes T1 isolation transformer and CEPT isolation transformer options, serving as a precise T1 line interface transformer or telecom interface transformer. Our RoHS compliant transformer is the trusted transformer for telecom equipment, transformer for communication equipment, and telecom signal transformer for telecommunications, HUBs, wireless networks, VoIP, and IP cameras.
Yuan Dean can provide high efficiency production solutions and customized products.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
Features
- For T1/CEPT Telecom applications.
- Designed to meet CCITT 7 & FCC.
- Recognized by UL 1950.
Applications
- computer equipment.
- Internet equipment.
- industrial control.
- telecom equipment.
Test Conditions
- Inductance ------------------100KHZ/200mV.
- Leakage Inductance --------100KHZ/200mV.
- Interwinding Capacitance –100KHZ/200mV.
Electrical Specifications@25°C
| Part Number | Turns Ratio (± 5%) | OCL Pri. (mH min.) | LL (uH max.) | CW/W (pf max.) | DCR Pri. (Ω max.) | DCR Sec. (Ω max.) | Primary Pins |
|---|---|---|---|---|---|---|---|
| 50T-1221BNL | 1:1:1(1:2CS) | 1.20 | 0.50 | 25 | 0.70 | 0.70&0.70 | 1-2 |
| 50T-1221DNL | 1CT:3CT | 1.20 | 0.50 | 30 | 0.70 | 1.60 | 1-5 |
| 50T-1221ANL | 1:1 | 1.20 | 0.50 | 25 | 0.70 | 0.70 | 1-2 |
| 50T-1221CNL | 1CT:1 | 1.20 | 0.80 | 25 | 0.70 | 0.70 | 1-5 |
| 50T-1222ANL | 1:1.36 | 1.20 | 0.80 | 35 | 0.70 | 0.80 | 5-6 |
| 50T-3012BNL | 1.26CS:1 (1:1:1.58) | 0.30 | 0.60 | 30 | 0.80 | 0.60 | 1-4 |
| 50T-8013BNL | 1CS:1 | 0.80 | 0.60 | 30 | 0.80 | 0.60 | 1-4 |
| 50T-8014BNL | 1CS:1.31 | 0.80 | 0.40 | 30 | 0.80 | 0.60 | 1-4 |
| 50T-1122DNL | 1CT:2CT | 1.20 | 0.55 | 30 | 0.70 | 1.20 | 1-5 |
| 50T-1222CNL | 1:2CT | 1.20 | 0.50 | 40 | 0.70 | 1.30 | 2-6 |
| 50T-5011ENL | 1:4CT | 0.50 | 1.00 | 40 | 0.50 | 1.50 | 1-5 |
| 50T-1222ENL | 1:1.14CT | 1.20 | 0.80 | 35 | 0.70 | 0.80 | 1-5 |
| 50T-1523CNL | 1:1.15CT | 1.50 | 0.60 | 35 | 0.70 | 0.90 | 2-6 |
| 50T-1524CNL | 1:1/1.26 | 1.50 | 0.40 | 40 | 0.70 | 0.90 | 2-6 |
| 50T-1222DNL | 1CT:2CT | 1.20 | 0.50 | 30 | 0.70 | 1.20 | 1-5 |
| 50T-1223ENL | 1:2.3CT | 1.20 | 0.80 | 35 | 0.70 | 1.40 | 1-5 |
| 50T-1224ENL | 1:1.36CT | 1.20 | 0.80 | 35 | 0.70 | 0.90 | 1-5 |
| 50T-1223DNL | 1CT:1CT | 1.20 | 0.80 | 25 | 0.80 | 0.80 | 1-5 |
| 50T-7011CNL | 1CT:1 | 0.70 | 0.70 | 20 | 0.20 | 0.80 | 1-5 |
| 50T-7014ENL | 1:1.36CT | 0.70 | 0.70 | 20 | 0.50 | 0.40 | 1-5 |
| 50T-1225CNL | 1:1.5CT | 1.20 | 0.60 | 30 | 0.70 | 1.00 | 2-6 |
| 50T-1224DNL | 1:1.26CT | 1.20 | 0.80 | 60 | 0.90 | 1.00 | 2-6 |
Certification

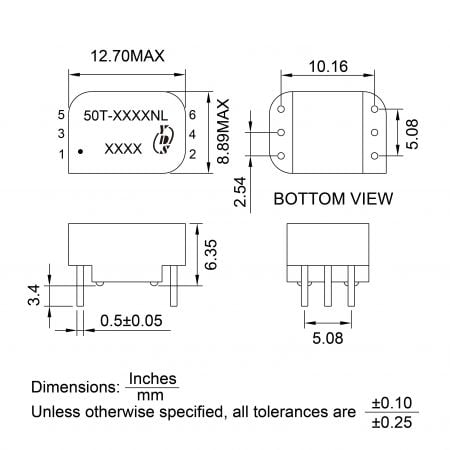

- Mechanicals and Dimensions Related Products Files Download
-
-
