ISDN-S0 Interface SMD16/DIL16 Transformer, 2KVrms Isolation
‹ › ISDN-S0 Interface SMD16/DIL16 Transformer, 2KVrms Isolation
41T/43TB Series

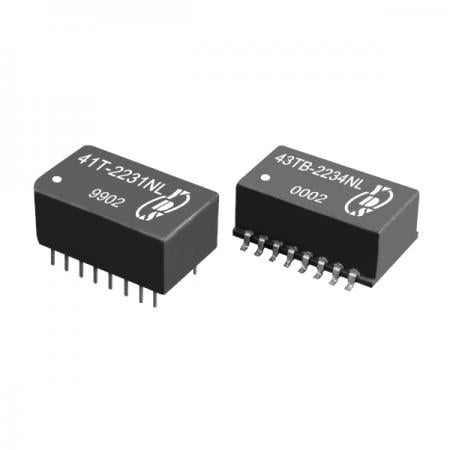

16PIN SMD16/DIL16 Isolated Transformer For telecom ISDN-S0 Interface equipment
ISDN-S0 interface telecom transformer with SMD & through hole package. The products of 41T&43TB series have excellent longitudinal balance and 2KVrms isolation voltage. This product is Recognized by UL 1950.
As a professional ISDN Transformer Manufacturer, we offer Industrial Grade ISDN Transformer and SMD/DIL Package Telecom Transformer solutions. Our Safety Isolated Telecom Transformer, Digital Network Interface Transformer, and UL 1950 Certified Transformer feature Lead-Free SMD/DIL ISDN Transformer technology. These High Reliability Telecom Magnetics are RoHS/REACH Compliant Telecom Transformer products, ideal for computer equipment, networking, industrial control, and telecom devices.
Yuan Dean can offer transformers designed for ISDN application. We can provide high efficiency production solutions and customized products.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
Features
- Excellent longitudinal balance.
- 2KVrms voltage isolation.
- Recognized by UL 1950.
Applications
- computer equipment.
- Internet equipment.
- industrial control.
- telecom equipment.
Test Conditions
- Inductance ------------------10KHZ/200mV.
- Leakage Inductance --------100KHZ/1V.
- Interwinding Capacitance --100KHZ/1V.
Electrical Specifications@25°C; Operating Temperature 0°C to 70°C
| Part Number | Ratio (± 2%) | OCL Pri. (mH min.) | LL Sec. (uH max.) | CW/W (pf max.) | CD Pri. (pf max.) | DCR Pri. (Ω ± 15%) | DCR Sec. (Ω ± 15%) | Δ Idc (mA max.) | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | A&B | A | B | A&B | A | B | A | B | A | B | ||
| 41T/43TB-2231NL | 1:1 | 1:2 | 22 | 5 | 5 | 100 | 42 | 80 | 2.4 | 2.3 | 2.4 | 4.0 | 1 |
| 41T/43TB-2232NL | 1:1 | 1:1 | 22 | 5 | 5 | 100 | 42 | 42 | 2.4 | 2.4 | 2.4 | 2.4 | 1 |
| 41T/43TB-2233NL | 1:1.8 | 1:1.8 | 22 | 15 | 15 | 100 | 140 | 140 | 2.5 | 2.5 | 4.2 | 4.2 | 1 |
| 41T/43TB-2234NL | 1:2 | 1:2 | 22 | 15 | 15 | 100 | 80 | 80 | 2.5 | 2.5 | 4.3 | 4.3 | 1 |
| 41T/43TB-2235NL | 1:2.5 | 1:2.5 | 22 | 8-40 | 8-40 | 100 | 110 | 110 | 2.5 | 2.5 | 5.8 | 5.8 | 1 |
| 41T/43TB-2236NL | 1:2 | 1:2 | 22 | 11 | 11 | 100 | 180 | 180 | 2.4 | 2.4 | 4.4 | 4.4 | 1 |
Certification

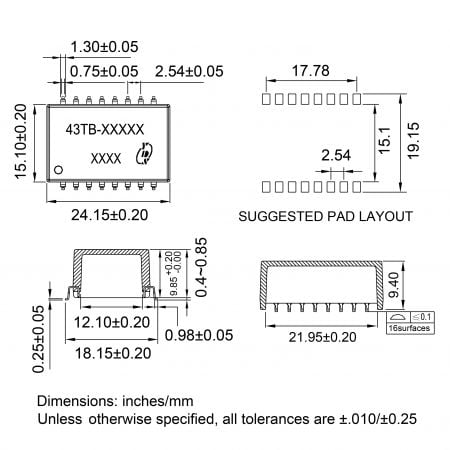

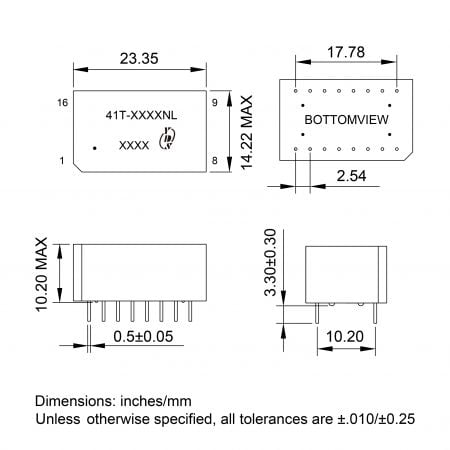

- Mechanicals and Dimensions Related Products Files Download
-
-
