SMD24/32/40 T3/DS3/E3/STS-1 Interface Transformer,1.5KVrms Isolated
‹ › SMD24/32/40 T3/DS3/E3/STS-1 Interface Transformer,1.5KVrms Isolated

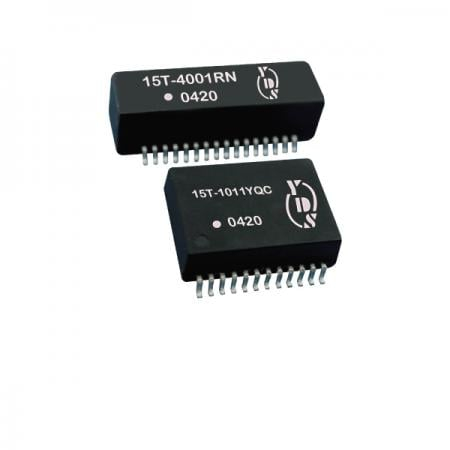

15T-1 Series
Telecom Transformer, SMD Package For industrial control and telecom equipment
Surface mount package telecom transformer has six and eight transformers.15T-1 series features 1500 Vrms isolation voltage, and the return loss meets requirements. This series is recognized by UL 60950-1.
Yuan Dean can provide high efficiency production solutions and customized products.
UL 60950-1 Certified 8-circuit telecom interface transformers and multi-port E3/STS-1 transformers. These high-reliability SMD telecom transformers feature wideband line interface unit magnetics, making them ideal for central office switching, industrial grade telecom magnetics, networking, and computer equipment. RoHS/REACH compliant.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
Features
- Return loss meets requirements.
- Isolation voltage: 1500Vrms.
- Recognized by UL 60950-1.
Applications
- computer equipment.
- Internet equipment.
- industrial control.
- telecom equipment.
Electrical Specifications@25°C
| Part Number | Turns Ratio (± 2%) | OCL Primary (mH min.) | OCL AT -40°C (mH min.) | LL (uH max) | Cw/w (pF max) | HI POT Vrms | Package Schematic | Primary Pins |
|---|---|---|---|---|---|---|---|---|
| 15T-4001RNNL | 1:1 | 40 | - | 0.150 | 10 | 1500 | R/N | 1-2,3-4,5-6, 7-8,9-10,11-12, 13-14,15-16 |
Electrical Specifications@25°C; Operating Temperature -40°C to 85°C
| Part Number | Turns Ratio (± 2%) | OCL Primary (mH min.) | OCL AT -40°C (mH min.) | LL (uH max) | Cw/w (pF max) | HI POT Vrms | Package Schematic | Primary Pins |
|---|---|---|---|---|---|---|---|---|
| 15T-4003XSCNL | 1:2CT & 1:1 | 40 | - | 0.12 | 10 | 1500 | X/S | 40-38,37-36,35-33, 32-31,30-28,27-26, 25-23,22-21 |
Certification

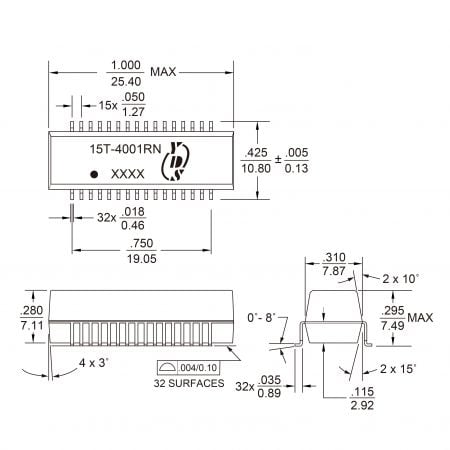

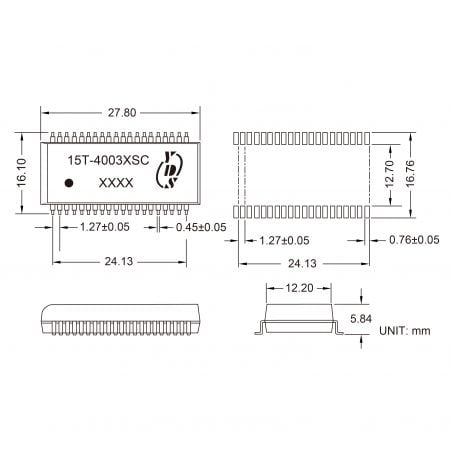

- Mechanicals and Dimensions Related Products Files Download
-
-
