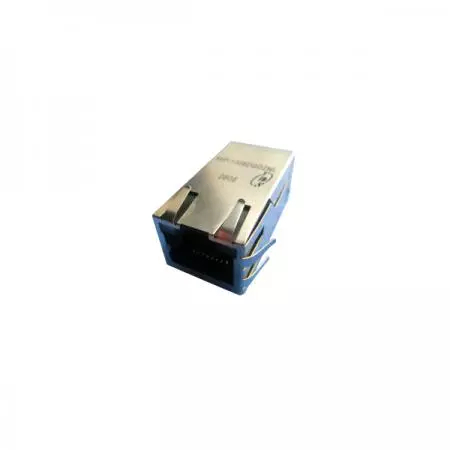

Single Port 5G Base-T RJ45 Jack With Magnetics EMI Shielding Supporting PoE+ TAB UP And Optional LED
‹ › Single Port 5G Base-T RJ45 Jack with Magnetics EMI Shielding Supporting PoE+ TAB UP and Optional LED
56F (5G PoE) Series
5GBASE-T 5GbE Shielded Magnetic Jack | 802.3at PoE+ | Tab-Up Design | Integrated LED Option For HUB and Telecom equipment
5G Base-T single port RJ45 jack with magnetics can be used in PoE and PoE+ applications. 56F(5G PoE) series has Tab up port and is available in 16 pin signal pin version. IEEE 802.3af compliant (350mA/720mA) for CAT 5 and 6 Fast Ethernet cables or better UTP. Internal magnetic 100% electrical test of HI-POT. This product can be selected with LED version.
Empower your high-speed telecommunications and IP cameras with our 5G PoE/PoE/&PoE++ RJ45 Jack, designed for peak ethernet RJ45 connector with magnetics performance. This Industrial grade 5G RJ45 solution functions as a High reliability 5G MagJack, integrating an Optional LED 5G RJ45 and RJ45 with 5G transformer into one Compact 5G RJ45 connector. As a precision-engineered RJ45 ICM, it utilizes Integrated 5G Lan filter RJ45 technology to support demanding wireless networks and HUBs. Whether you need Custom 5G RJ45 magnetics or a specialized OEM RJ45 magjack, our series provides the robust connectivity required for modern VoIP and networking devices.
The RJ45 connector products of Yuan Dean are RoHS-compliant, and can be customized for products.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
Features
- 1x1 Tab-up, 1" long RJ45 with internal magnetics.
- 16pin signal pin versions available.
- Available with LEDs.
- Suitable for CAT 5 & 6 Fast Ethernet Cable or better UTP.
- Internal magnetics are 100% electrically tested for HI-POT and functionality.
- Meet IEEE 802.3af standards with 350mA.
- Meet IEEE 802.3at standards with 720mA.
Applications
- Telecom equipment.
- HUB.
- Wireless router station.
- VoIP device.
- Video camera.
Electrical Specifications@25°C; Operating Temperature 0°C to 70°C
| Part Number | Turns Ratio (± 3%) | LEDs | Insertion Loss (dB MAX) | Return Loss (dB MIN) | ||
|---|---|---|---|---|---|---|
| L/R | 1-125 MHz | 125-250 MHz | 1-40 MHz | 40-250 MHz | ||
| 56F-2001DGD2NL | 1CT: 1CT | G & Y/G | -1.0 | -1.5 | -20 | -20+15log10(f/40MHz) |
| 56F-20012DGD2NL | 1CT: 1CT | G & Y/G | -1.0 | -1.5 | -20 | -20+15log10(f/40MHz) |
| Part Number | Crosstalk (dB TYP) | CDMR (dB TYP) | CMR (dB TYP) | Hipot (Vdc) | POE Current | |
|---|---|---|---|---|---|---|
| 1-125 MHz | 125-250 MHz | 10-250 MHz | 30-250 MHz | @60Hz | ||
| 56F-2001DGD2NL | -30 | -25 | -45+f/35dB | -30 | 2250 | 350mA |
| 56F-20012DGD2NL | -30 | -25 | -45+f/35dB | -30 | 2250 | 720mA |
Electrical Specifications@25°C; Operating Temperature -40°C to 85°C
| Part Number | Turns Ratio (± 2%) | LEDs | Insertion Loss (dB MIN) | Return Loss (dB MIN) | |||
|---|---|---|---|---|---|---|---|
| L/R | 1-50 MHz | 50-125 MHz | 125-250 MHz | 1-40 MHz | 40-250 MHz | ||
| 56F-2001DDDZ2NL | 1CT: 1CT | G/Y & G/Y | -0.5 | -1.2 | -2.0 | -16 | -16+10log10 (f/40MHz) 40<f≤250 |
| Part Number | Crosstalk (dB MIN) | CMR (dB MIN) | DCMR (dB MIN) | Hipot (Vdc) | POE Current | ||
|---|---|---|---|---|---|---|---|
| 1-125 MHz | 1-40 MHz | 40-100 MHz | 100-250 MHz | 1-250 MHz | @60Hz | ||
| 56F-2001DDDZ2NL | -30 | -30 | -28 | -26 | -30 | 2250 | 720mA |
Certification

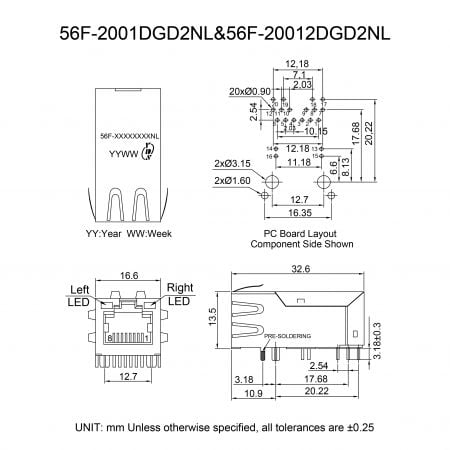

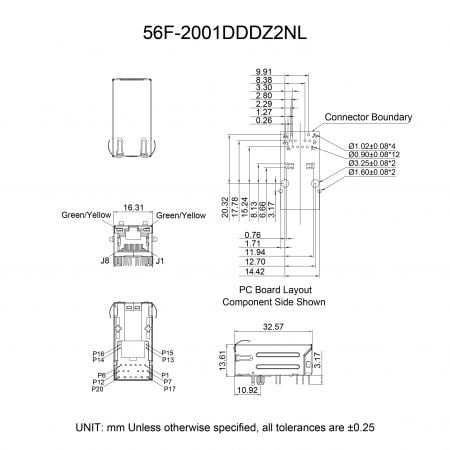

- Mechanicals and Dimensions Related Products Files Download
-
-
