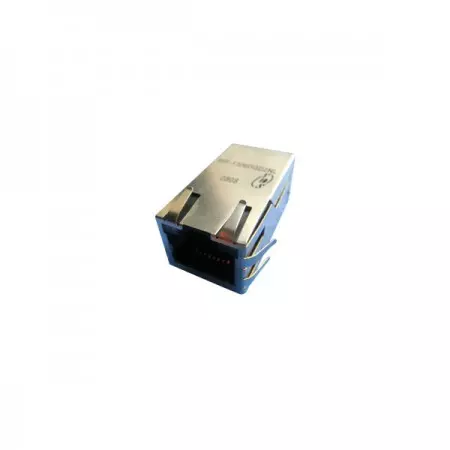

10GBASE-T 10GbE Shielded Magnetic Jack | 802.3bt PoE++ | Tab-Up Design | Integrated LED Option For HUB and Telecom equipment
10G base-T single port RJ45 jack with magnetics for PoE, PoE+ and PoE++ applications. This RJ45 connector has tab up port and is available in 16 pin signal pin version. IEEE 802.3af compliant (350mA), IEEE 802.3at compliant (600mA) and IEEE 802.3bt compliant (1A) for CAT 5 and 6 fast ethernet cables or better UTP. Internal magnetic 100% electrical test of HI-POT. This product can be selected with LED version.
For advanced VoIP and high-power IP cameras, our 10G PoE/PoE/&PoE++ RJ45 Jack provides the ultimate solution for power and data over a single Compact 10G RJ45 connector. This Industrial grade 10G RJ45 features Integrated 10G Lan filter RJ45 technology and RJ45 with 10G transformer, ensuring a High reliability 10G MagJack experience. As a versatile RJ45 ICM, it includes Optional LED 10G RJ45 configurations to meet diverse networking needs. Whether you require Custom 10G RJ45 magnetics, a specific OEM RJ45 magjack, or a robust ethernet RJ45 connector with magnetics, our 56F-10G PoE series delivers top-tier performance for modern HUBs and wireless networks.
The RJ45 connector products of Yuan Dean are RoHS-compliant, and can be customized for products.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
Features
- 1x1 Tab-up, 1" long RJ45 with internal magnetics.
- 16pin signal pin versions available.
- Available with LEDs.
- Suitable for CAT 5 & 6 fast ethernet cable or better UTP.
- Internal magnetics are 100% electrically tested for HI-POT and functionality.
- Meet IEEE 802.3af standards with 350mA.
- Meet IEEE 802.3at standards with 600mA.
- Meet IEEE 802.3bt standards with 1A.
Applications
- Telecom equipment.
- HUB.
- Wireless router station.
- VoIP device.
- Video camera.
Electrical Specifications@25°C; Operating Temperature 0°C to 70°C
| Part Number | Turns Ratio (± 5%) | LEDs | Insertion Loss (dB MAX) | Return Loss (dB MIN) | |||
|---|---|---|---|---|---|---|---|
| L/R | 1-400 MHz | 1-100 MHz | 100-200 MHz | 200-400 MHz | 400-500 MHz | ||
| 56F-16061DDD2NL | 1CT: 1CT | Y&G/G&Y | -2.0 | -13 | -10 | -7 | -6 |
| 56F-16062DDD2NL | 1CT: 1CT | Y&G/G&Y | -2.0 | -13 | -10 | -7 | -6 |
| Part Number | Crosstalk (dB TYP) | CDMR (dB TYP) | Hipot (Vrms) | POE Current | ||
|---|---|---|---|---|---|---|
| 1-100 MHz | 100-500 MHz | 1-250 MHz | 250-500 MHz | @60Hz | ||
| 56F-16061DDD2NL | -40 | -30 | -30 | -22 | 1500 | 350 mA |
| 56F-16062DDD2NL | -40 | -30 | -30 | -22 | 1500 | 600 mA |
Electrical Specifications@25°C; Operating Temperature -40°C to 85°C
| Part Number | Turns Ratio (± 5%) | LEDs | Insertion Loss (dB MAX) | Return Loss (dB TYP) | Crosstalk (dB MIN) | ||
|---|---|---|---|---|---|---|---|
| L/R | 1-400 MHz | 1-100 MHz | 100-500 MHz | 1-100 MHz | 100-500 MHz | ||
| 56F-1606GGDZ2NL | 1CT: 1CT | G/G | -2.0 | -22 | -22+18.27log (f/100MHz) | -28 | -19 |
| Part Number | CMR (dB MIN) | CDMR (dB MIN) | Hipot (Vrms) | POE Current | |||
|---|---|---|---|---|---|---|---|
| 1-100 MHz | 100-300 MHz | 300-500 MHz | 1-250 MHz | 250-500 MHz | @60Hz | ||
| 56F-1606GGDZ2NL | -35 | -30 | -25 | -30 | -22 | 2250 | 1A |
Certification

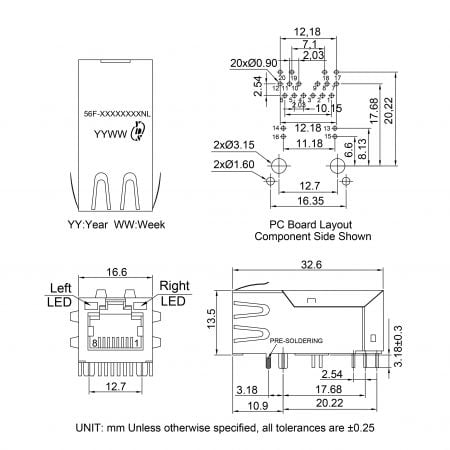

- Mechanicals and Dimensions Related Products Files Download
-
-
