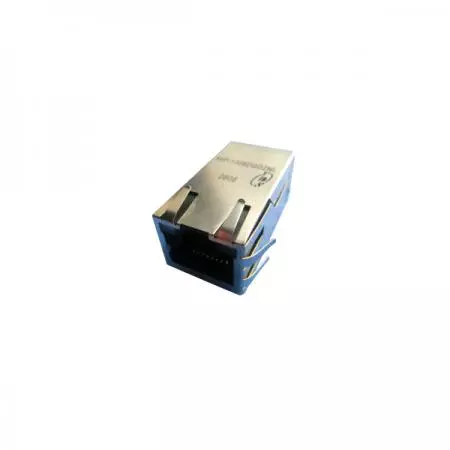

Single Port 2.5G Base-T RJ45 Jack With Magnetics EMI Shielding Supporting Up To PoE++ TAB UP And Optional LED
‹ › Single Port 2.5G Base-T RJ45 Jack with Magnetics EMI Shielding Supporting Up to PoE++ TAB UP and Optional LED
56F (2.5G PoE) Series
2.5GBASE-T 2.5GbE Shielded Magnetic Jack | 802.3bt PoE++ | Tab-Up Design | Integrated LED Option For HUB and Telecom equipment
2.5G Base-T single port RJ45 jack with magnetics can be used in PoE, PoE+ and PoE++ applications. 56F(2.5G PoE) series has Tab up port and is available in 16 pin signal pin version. IEEE 802.3af compliant (350mA/720mA/1A) for CAT 5 and 6 Fast Ethernet cables or better UTP. Internal magnetic 100% electrical test of HI-POT. This product can be selected with LED version.
Our 2.5G PoE/PoE/&PoE++ RJ45 Jack is the perfect bridge for next-gen wireless networks and VoIP systems, combining power delivery with High reliability 2.5G MagJack performance. This Industrial grade 2.5G RJ45 solution utilizes Integrated 2.5G Lan filter RJ45 technology and a precision RJ45 with 2.5G transformer. As a versatile RJ45 ICM, it features an Optional LED 2.5G RJ45 within a Compact 2.5G RJ45 connector design. Whether you require Custom 2.5G RJ45 magnetics, an OEM RJ45 magjack, or a robust ethernet RJ45 connector with magnetics, our series ensures seamless connectivity for modern HUBs and IP cameras.
The RJ45 connector products of Yuan Dean are RoHS-compliant, and can be customized for products.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
Features
- 1x1 Tab-up, 1" long RJ45 with internal magnetics.
- 16pin signal pin versions available.
- Available with LEDs.
- Suitable for CAT 5 & 6 fast ethernet cable or better UTP.
- Internal magnetics are 100% electrically tested for HI-POT and functionality.
- Meet IEEE 802.3af standards with 350mA.
- Meet IEEE 802.3at standards with 720mA.
- Meet IEEE 802.3bt standards with 1A.
Applications
- Telecom equipment.
- HUB.
- Wireless router station.
- VoIP device.
- Video camera.
Electrical Specifications@25°C; Operating Temperature 0°C to 70°C
| Part Number | Turns Ratio (± 3%) | LEDs | Insertion Loss (dB MAX) | Return Loss (dB MIN) | Crosstalk (dB TYP) | |||
|---|---|---|---|---|---|---|---|---|
| L/R | 1-50 MHz | 50-125 MHz | 1-40 MHz | 40-200 MHz | 1-125 MHz | 125-200 MHz | ||
| 56F-1801DDD2NL | 1CT: 1CT | G&Y/ G&Y | -0.5 | -1.0 | -20 | -20+15log (f/40MHz) | -30 | -25 |
| 56F-18012DDD2NL | 1CT: 1CT | G&Y/ G&Y | -0.5 | -1.0 | -20 | -20+15log (f/40MHz) | -30 | -25 |
| Part Number | DCMR (dB TYP) | CMR (dB TYP) | CDMR (dB TYP) | POE Current | Hipot (Vdc) | ||||
|---|---|---|---|---|---|---|---|---|---|
| 1-10 MHz | 10-200 MHz | 1-125 MHz | 1 MHz | 50 MHz | 100 MHz | 200 MHz | @60Hz | ||
| 56F-1801DDD2NL | -48 | -48+19log (f/10MHz) | -35 | -30 | -30 | -27 | -24 | 720mA | 2250 |
| 56F-18012DDD2NL | -48 | -48+19log (f/10MHz) | -35 | -30 | -30 | -27 | -24 | 350mA | 2250 |
Electrical Specifications@25°C; Operating Temperature -40°C to 85°C
| Part Number | Turns Ratio (± 3%) | LEDs | Insertion Loss (dB MAX) | Return Loss (dB MIN) | Crosstalk (dB TYP) | |||
|---|---|---|---|---|---|---|---|---|
| L/R | 1-50 MHz | 50-125 MHz | 1-40 MHz | 40-200 MHz | 1-125 MHz | 125-200 MHz | ||
| 56F-1802DDD2NL | 1CT: 1CT | G&Y/ G&Y | -0.5 | -1.0 | -20 | -20+15log (f/40MHz) | -30 | -25 |
| 56F-1803DGDZ2NL | 1CT: 1CT | G&Y/ G | -0.5 | -1.0 | -20 | -20+15log (f/40MHz) | -30 | -- |
| Part Number | DCMR (dB TYP) | CMR (dB TYP) | CDMR (dB TYP) | POE Current | Hipot (Vdc) | ||||
|---|---|---|---|---|---|---|---|---|---|
| 1-10 MHz | 10-200 MHz | 1-125 MHz | 1 MHz | 50 MHz | 100 MHz | 200 MHz | @60Hz | ||
| 56F-1802DDD2NL | -48 | -48+19log (f/10MHz) | -35 | -30 | -30 | -27 | -24 | 350mA | 2250 |
| 56F-1803DGDZ2NL | -- | -- | -30dB (30-200MHz) | -45+f/35dB (10-125MHz) | 1A | 2250 | |||
Certification

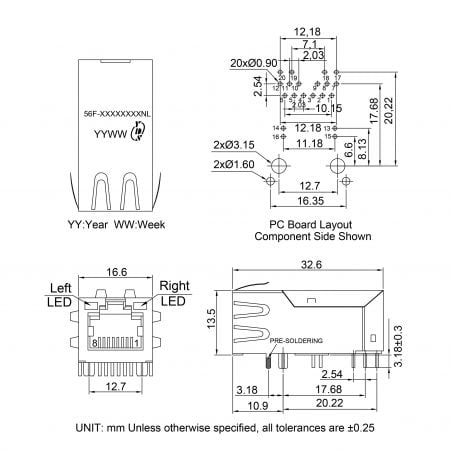

- Mechanicals and Dimensions Related Products Files Download
-
-
