Single Port 100/1000 Base-TX Gigabit RJ45 Jack With Magnetics EMI Shielding Supporting Up To PoE+ TAB UP And Optional LED
‹ › Single Port 100/1000 Base-TX Gigabit RJ45 Jack with Magnetics EMI Shielding Supporting Up to PoE+ TAB UP and Optional LED

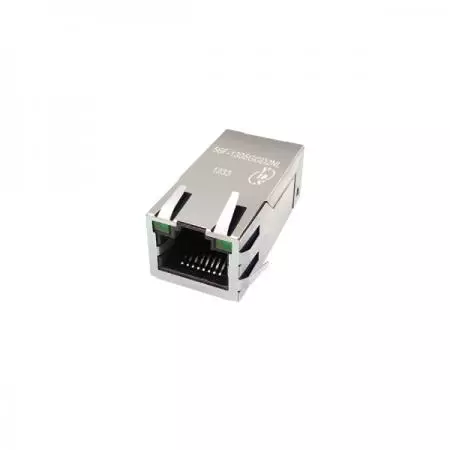

56F-14XX Series
1000Base-T Shielded Magnetic Jack | 802.3at PoE+ Support | Tab-Up Design | Integrated LED Option For HUB and Telecom equipment
Single Port 100/1000Base-T PoE and PoE+ RJ45 Connector. Magnetic designs to support every PHY and minimum 1500 Vrms isolation per IEEE 802.3 requirement. Size of 56F-14XX Series same as RJ45 modular jack to save PCB board Space. This product is designed for 100/1000 base transmission over UTP-5 cable and has passed UL 60950-1 certification.
Ensure peak power and data efficiency for telecommunications and IP cameras with our 1000 Base-T PoE+ RJ45 Connector, fully IEEE 802.3at Compliant RJ45. This High Reliability PoE+ Magnetics solution features an Integrated Magnetics RJ45 PoE+ 1x1 design, providing a robust Gigabit MagJack PoE+ Integrated experience. Our Shielded RJ45 with PoE+ Filter is a UL 60950-1 Certified RJ45 Connector, serving as a RoHS Compliant PoE+ RJ45 and REACH Certified Ethernet Connector. Whether for HUBs, wireless networks, or VoIP, this 10/100/1000 Base-T PoE Magnetics and Gigabit RJ45 with Magnetics PoE+ or PoE+ Ethernet Jack 1000 Base-T ensures stable, high-performance connectivity.
Yuan Dean can provide high efficiency production solutions and customized products.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
Features
- Magnetic designs to support every PHY.
- Meet IEEE 802.3af standards with 350mA.
- Meet IEEE 802.3at standards with 720mA.
- including 350uH min OCL with 8mA bias.
- Minimum 1500Vrms isolation per IEEE 802.3 requirement.
- Designed for 100/1000 base transmission over UTP-5 cable.
- Size same as RJ-45 modular jack to save PCB board Space.
- Recognized by UL 60950-1.
Applications
- Telecom equipment.
- HUB.
- Wireless router station.
- VoIP device.
- Video camera.
Electrical Specifications@25°C; Operating Temperature -40°C to 85°C
| Part Number | Turns Ratio (± 5%) | EMI Fingers | LED (L/R) | Insertion Loss (dB TYP) | Return Loss (dB min @100Ω) | ||
|---|---|---|---|---|---|---|---|
| 1-100 MHz | 1-10 MHz | 30 MHz | 60-80 MHz | ||||
| 56F-1417GYDZ2NL | 1CT: 1CT | YES | G/Y | -1.0 | -20 | -16 | -12 |
| Part Number | Crosstalk (dB TYP) | Common Mode Rejection (dB TYP) | PoE Current | Hipot (V | |||
|---|---|---|---|---|---|---|---|
| 1-40 MHz | 30-60 MHz | 60-100 MHz | 1-50 MHz | 50-130 MHz | |||
| 56F-1417GYDZ2NL | -40 | -35 | -30 | -30 | -20 | 720mA | 2250 |
Certification

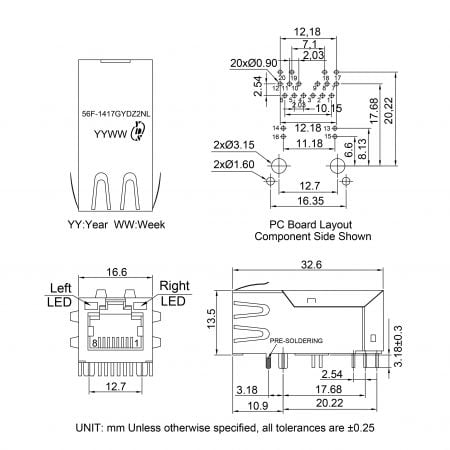

- Mechanicals and Dimensions Related Products Files Download
-
-
