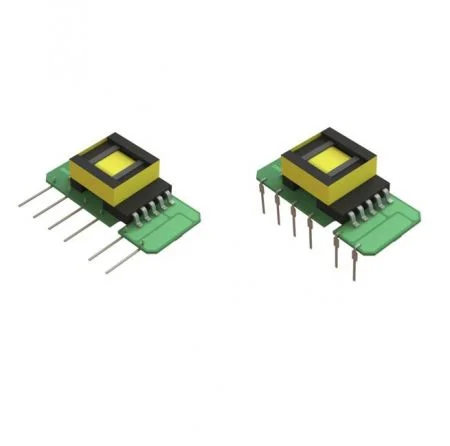

Open Frame AC-DC Power Module, 1W Single Regulated Output Power, 3KVac Isolation, SIP12 Package
‹ › Open Frame AC-DC Power Module, 1W Single Regulated Output Power, 3KVac Isolation, SIP12 Package
GS1 Series
Ultra Compact Size, SIP Package AC-DC Power Module For IoT & Wireless Sensors and Smart Home Nodes
This 1W AC to DC power converter features single output, open frame design, and 3KVac isolation voltage. With a universal input range of 85~305VAC, the GS1 series ensures stable performance with built-in short-circuit and overload protection. Its compact size makes it ideal for space-saving applications, such as consumer electronics, smart devices, and IoT modules...etc., delivering up to 70% efficiency.
This global input AC-DC power supply offers an ultra small AC-DC converter SIP design, perfect as a space saving AC-DC converter for computer equipment. Our PCB mount AC-DC converter and mini AC-DC converter 1W provide a low cost open frame AC-DC converter option that remains a RoHS/REACH compliant power supply. As a certified EN55032 EN55035 power module and IEC 62368-1 power module, this SIP AC-DC power module acts as a compact AC-DC power module and embedded AC-DC converter for complex industrial control and fire systems.
All Yuan Dean AC-DC converters are RoHS-compliant, customizable, and backed by a 3-year warranty. OEM/ODM projects are welcome—we look forward to working with you.
Features
- Universal input 85~305VAC.
- High efficiency up to 70%.
- Protection: short circuit/over load.
- Ultra small size.
- 3 years warranty.
- ROHS compliant.
Applications
- IoT & Wireless Sensors.
- Smart Home Nodes.
- Small Relay Control.
- Electronic Door Locks.
- Smart Meters.
- Portable Instruments.
Specifications typical at TA = 25°C, nominal input voltage and rated output current unless otherwise specified
| Part Number | Output Wattage | Output Voltage | Output Current | Efficiency | Max. Capacitive Load |
|---|---|---|---|---|---|
| (W) | (VDC) | (mA) | (TYP %) | (μF) | |
| GS1-S03(F) | 1 | 3.3 | 303 | 60 | 600 |
| GS1-S05(F) | 1 | 5 | 200 | 66 | 600 |
| GS1-S09(F) | 1 | 9 | 111 | 67 | 470 |
| GS1-S12(F) | 1 | 12 | 83 | 69 | 220 |
| GS1-S15(F) | 1 | 15 | 67 | 70 | 180 |
| GS1-S24(F) | 1 | 24 | 42 | 69 | 100 |
Note:
add suffix“F”for 90°bending Products. For example: GS1-S05F, GS1-S12F
Input Specifications
| Parameters | Conditions | Min | Typ | Max | Units | |
|---|---|---|---|---|---|---|
| Rated Input Voltage | Vo, Io nom | 100 ~ 277 | Vac | |||
| Voltage Range | Vo, Io nom | AC in | 85 | 305 | Vac | |
| DC in | 70 | 430 | Vdc | |||
| Line Frequency | Vi nom, Io nom | 47 | 63 | Hz | ||
| Input Current | Io nom | Vi: 115VAC | 0.12 | A | ||
| Vi: 230VAC | 0.06 | A | ||||
| Inrush Current | Io nom | Vi: 115VAC | 10 | A | ||
| Vi: 230VAC | 15 | A | ||||
Output Specifications
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Output Voltage Accuracy | 3.3V | ± 8 | % | ||
| 5~24V | ± 5 | % | |||
| Line Regulation | Io nom, Vi min…Vi max | ± 1.5 | % | ||
| Load Regulation | 10%~100% Load | ± 2.5 | % | ||
| No Load | 0.10 | 0.15 | W | ||
| Ripple & Noise | Vi nom, Io nom, BW=20MHz | 80 | 150 | mVp-p | |
| Protection | Over Load | Above 110% rated output power | |||
| Protection type: Recovers automatically after fault condition is removed | |||||
| Short circuit | Recovers automatically after fault condition is removed | ||||
Note: The product is able to work with 0% - 10% load and with stable output.
General Specifications
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Switching Frequency | Vi nom, Io nom | 60 | KHz | ||
| Isolation Voltage | Input / Output | 3KVac / 5mA / 5Secs | |||
| Isolation Resistance | Input / Output, @500 Vdc | 100 | MΩ | ||
| Operating Temperature | Refer to Temperature Derating Graph | -40 | +85 | °C | |
| Storage Temperature | Non Operational | -40 | +105 | °C | |
| Relative Humidity | Vi nom, Io nom | 85 | % RH | ||
| Safety Standards | UL 62368-1, IEC62368-1 approved | ||||
| EMI Conduction & Radiation | EN55032,CLASS B(See Fig. 1 for recommended circuit) | ||||
| EMS Immunity | EN61000 (See Fig. 1 for recommended circuit) | ||||
| Dimension | L35.0 x W11.0 x H18.0 mm | ||||
| Cooling | Free air convection | ||||
Certification

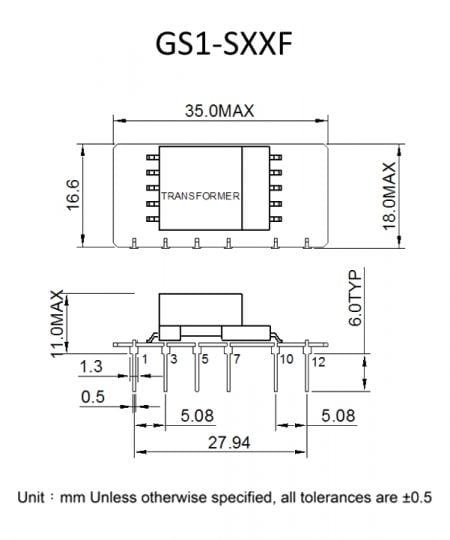

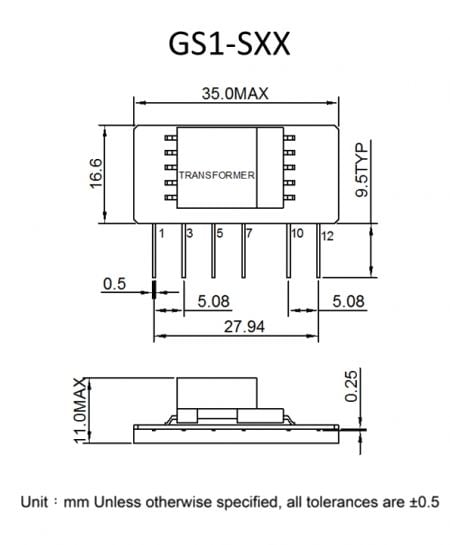

- Markings and Dimensions Related Products Files Download
-
-
