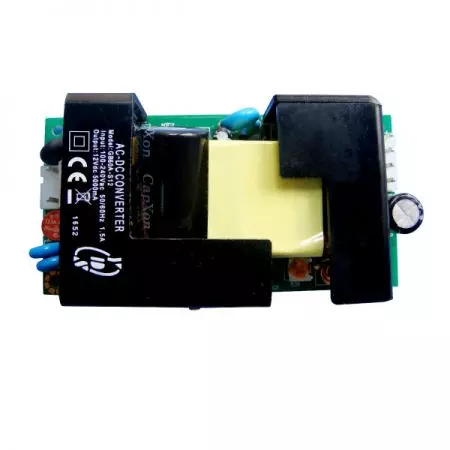

Open Frame AC-DC Power Supply, 60W Single Regulated Output Power, 4" X 2" Size, 3KVac Isolation, 7PIN Connectors
‹ › Open Frame AC-DC power Supply, 60W Single Regulated Output Power, 4" X 2" size, 3KVac Isolation, 7PIN Connectors
GB60A Series
Plug-in AC-DC Power, Compact 60W Embedded Power Supply For AC Main power supply system and Industrial Control
60 watt single output open frame AC to DC power converter features universal input voltage of 90~264VAC and 3KVac isolation voltage. GB60A series has short-circuit, overload and over-voltage protection functions. It contains internal input filter. The efficiency can reach up to 88% (Typical). GB60A series has passed CE certification.
As a high reliability power supply vendor, we provide this global input AC-DC power supply for computer equipment and machinery. This 4 x 2 inch AC-DC power supply functions as a 60W switching power supply open frame, featuring an open frame AC-DC power supply with terminal block and AC-DC converter with header connectors. It is an EN55032/EN55024 EMC/EN61000 compliant AC-DC module and a safety certified open frame power supply, making it the perfect embedded power supply for industrial controls. Whether for fire security systems or electronic instruments, our industrial grade EMC power module offers a custom open frame AC-DC solution for any AC mains systems.
The AC-DC power converter products of Yuan Dean are RoHS-compliant, and can be customized for products. The products are guaranteed for 3 years after sale.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
Features
- Universal input 90~264VAC.
- High efficiency at 88% typical.
- Protection: short circuit/overload/over voltage.
- Internal input filter.
- 3 years warranty.
- ROHS compliant.
Applications
- Computer equipement.
- AC Main power supply system.
- Industrial Control.
- Fire Fighting system.
- Instrument.
Specifications typical at TA = 25°C, nominal input voltage and rated output current unless otherwise specified
| Part Number | Output Wattage | Output Voltage | Output Current | Ripple & Noise | Efficiency |
|---|---|---|---|---|---|
| (W) | V | (mA) | (mV) max(note) | %(TYP) | |
| GB60A-S03 | 26.4 | 3.3 | 8000 | 100 | 70 |
| GB60A-S05 | 40.0 | 5 | 8000 | 100 | 80 |
| GB60A-S09 | 60.0 | 9 | 6670 | 100 | 81 |
| GB60A-S12 | 60.0 | 12 | 5000 | 150 | 85 |
| GB60A-S15 | 60.0 | 15 | 4000 | 150 | 85 |
| GB60A-S16 | 60.0 | 16 | 3750 | 150 | 85 |
| GB60A-S24 | 60.0 | 24 | 2500 | 240 | 87 |
| GB60A-S27 | 60.0 | 27 | 2200 | 240 | 87 |
| GB60A-S36 | 60.0 | 36 | 1670 | 240 | 87 |
| GB60A-S48 | 60.0 | 48 | 1250 | 240 | 88 |
| GB60A-S12-E | 60.0 | 12 | 5000 | 150 | 85 |
| GB60A-S12-G | 60.0 | 12 | 5000 | 150 | 85 |
Input Specifications
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Rated Input Voltage | Vo,Io nom | 100 ~ 240 | Vac | ||
| Voltage Range | Vo,Io nom | 90 | 264 | Vac | |
| Frequency | 47 | 50/60 | 63 | Hz | |
| Inrush Current | At 100Vac | 20 | A | ||
| At 240Vac | 40 | A | |||
| Input Fuse | VDE/UL/CCC FUSE 3.15A/250V | ||||
Output Specifications
| Parameters | Conditions | Min | Typ | Max | Units | |
|---|---|---|---|---|---|---|
| Output Voltage Accuracy | Vi nom, Io nom | 3.3V,5V Models | ± 3 | % | ||
| 12….48V Models | ± 2 | % | ||||
| Minimum Load | Vi nom | 0 | % | |||
| Line Regulation | Io nom, Vi min…Vi max | ± 1 | % | |||
| Load Regulation | Vi nom, Io min…Io nom | ±2 | % | |||
| Protection | Over Load | 115% -150% rated output power | ||||
| Protection type: Recovers automatically after fault condition is removed | ||||||
| Over Voltage | 120%-150% rated output Voltage | |||||
| Protection type: Shut off o/p voltage, re-power on to recover | ||||||
| Short circuit | Recovers automatically after fault condition is removed | |||||
Note:
Ripple & noise is measured by using 20 MHz bandwidth, measured with a 47uf paralleled with a high-frequency 0.47uf capacitor across each output by full load.
General Specifications
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Switching Frequency | Vi nom, Io nom | 65 | KHz | ||
| Isolation Voltage | Input / Output | 3KVac / 5mA / 5Secs | |||
| Isolation Resistance | Input / Output, @500 Vdc | 100 | MΩ | ||
| Operating Temperature | Operating at Vi nom, Io nom | -20 | +70 | °C | |
| Derating | Vi nom,Io nom+51 to 71℃ | 2 | %/°C | ||
| Storage Temperature | Non Operational | -40 | +85 | °C | |
| Relative Humidity | Vi nom, Io nom | 95 | % RH | ||
| Safety Standards | EN62368-1 approved | ||||
| EMI Conduction & Radiation | Design refer to EN55032 | ||||
| EMS Immunity | Design refer to EN55024 | ||||
| Dimension | L101.60 x W50.80 x H31.0 | ||||
| Cooling | Free air convection | ||||
Certification

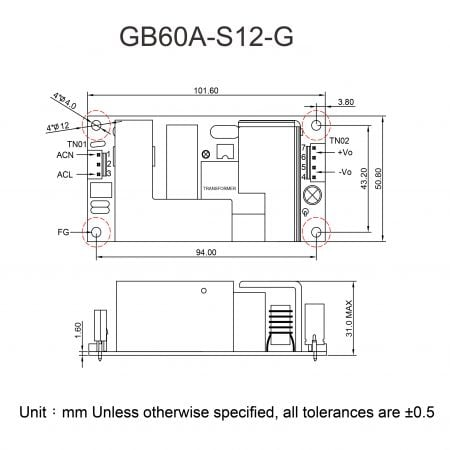

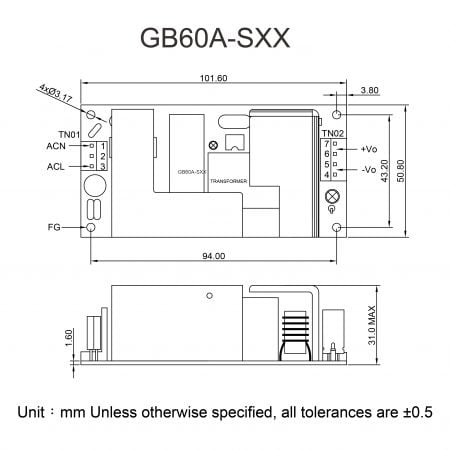

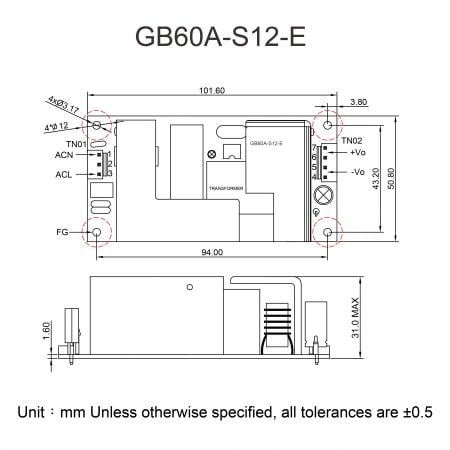

- Markings and Dimensions Related Products Files Download
-
-
