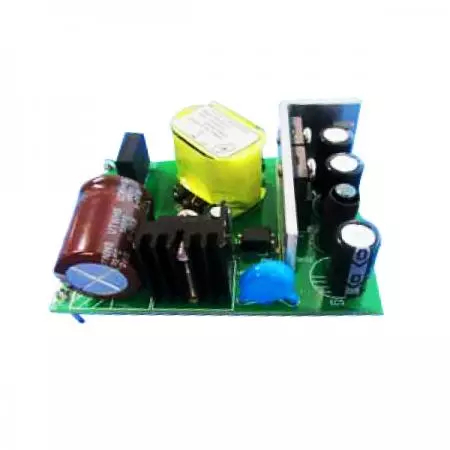

Open Frame AC-DC Power Converter Module, 20~27W Single Regulated Output Power, 3KVac Isolation, DIL5 Package
‹ › Open Frame AC-DC Power Converter Module, 20~27W Single Regulated Output Power, 3KVac Isolation, DIL5 Package
GP25D Series
PCB Mount 5PIN DIL Package AC-DC Power Module For AC Main power supply system and Industrial Control
20~27 watt open frame AC to DC power converter features universal input of 90~264VAC and 3KVac isolation voltage. It is a single output type. GP25D series has short-circuit, overload and over-voltage protection functions. The efficiency can reach up to 90%.
As a high reliability power supply vendor, we offer high efficiency open frame power supply and embedded power supply units for computer systems. Our compact open frame power module and open frame AC-DC module DIP serve as a reliable power supply for machinery and fire systems. This global input AC-DC power supply ensures a custom open frame AC-DC solution through an industrial isolation AC-DC power supply design, all while being a RoHS & REACH Compliant AC-DC Converter.
The AC-DC power converter products of Yuan Dean are RoHS-compliant, and can be customized for products. The products are guaranteed for 3 years after sale.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
Features
- Universal input 90~264VAC.
- High efficiency at 90%.
- Protection: short circuit/overload/over voltage.
- 3 years warranty.
- ROHS compliant.
Applications
- Computer equipement.
- AC Main power supply system.
- Industrial Control.
- Fire Fighting system.
- Instrument.
Specifications typical at TA = 25°C, nominal input voltage and rated output current unless otherwise specified
| Part Number | Output Wattage | Output Voltage | Output Current | Ripple & Noise | Efficiency |
|---|---|---|---|---|---|
| (W) | (VDC) | (mA) | (mV) max(Note) | (TYP %) | |
| GP25D-S03 | 16.5 | 3.3 | 5000 | 100 | 80 |
| GP25D-S05 | 20.0 | 5 | 4000 | 100 | 82 |
| GP25D-S06 | 24.0 | 6 | 4000 | 100 | 82 |
| GP25D-S07 | 21.0 | 7 | 3000 | 100 | 83 |
| GP25D-S08 | 24.0 | 8 | 3000 | 100 | 84 |
| GP25D-S09 | 22.5 | 9 | 2500 | 100 | 84 |
| GP25D-S10 | 25.0 | 10 | 2500 | 150 | 86 |
| GP25D-S12 | 25.0 | 12 | 2100 | 150 | 86 |
| GP25D-S13 | 26.0 | 13 | 2000 | 150 | 86 |
| GP25D-S14 | 26.0 | 14 | 1850 | 150 | 86 |
| GP25D-S15 | 26.0 | 15 | 1750 | 150 | 86 |
| GP25D-S16 | 26.0 | 16 | 1625 | 150 | 86 |
| GP25D-S18 | 26.0 | 18 | 1450 | 150 | 87 |
| GP25D-S24 | 26.4 | 24 | 1100 | 240 | 88 |
| GP25D-S27 | 27.0 | 27 | 1000 | 240 | 88 |
| GP25D-S36 | 27.0 | 36 | 750 | 240 | 88 |
| GP25D-S48 | 27.0 | 48 | 560 | 240 | 90 |
Input Specifications
| Parameters | Conditions | Min | Typ | Max | Units | |
|---|---|---|---|---|---|---|
| Rated Input Voltage | Vo, Io nom | 100 ~ 240 | Vac | |||
| Voltage Range | Vo, Io nom | AC in | 90 | 264 | Vac | |
| DC in | 120 | 370 | Vdc | |||
| Line Frequency | Vi nom, Io nom | 47 | 50/60 | 63 | Hz | |
Output Specifications
| Parameters | Conditions | Min | Typ | Max | Units | |
|---|---|---|---|---|---|---|
| Output Voltage Accuracy | Vi nom, Io nom | 3.3...9V Models | ± 3 | % | ||
| 10...48V Models | ± 2 | % | ||||
| Minimum Load | Vi nom | 0 | % | |||
| Line Regulation | Io nom, Vi min…Vi max | ± 0.2 | % | |||
| Load Regulation | Vi nom, Io min…Io nom | 3.3V Models | ± 1.0 | % | ||
| 5...48V Models | ± 0.5 | % | ||||
| Transient Recovery time | Vi nom,Io nom = ←→0.5 Io nom | 1000 | us | |||
| Protection | Over Load | Above 110% rated output power | ||||
| Protection type: Recovers automatically after fault condition is removed | ||||||
| Short circuit | Recovers automatically after fault condition is removed | |||||
| Over Voltage | 120%-150% rated output Voltage | |||||
| Protection type: Zener diode clamp | ||||||
Note:
Ripple & noise is measured by using 20 MHz bandwidth, measured with a 47uf paralleled with a high-frequency 0.47uf capacitor across each output by full load.
General Specifications
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Switching Frequency | Vi nom, Io nom | 65 | KHz | ||
| Isolation Voltage | Input / Output | 3KVac / 5mA / 5Secs | |||
| Isolation Resistance | Input / Output, @500 Vdc | 100 | MΩ | ||
| Operating Temperature | Refer to Temperature Derating Graph | -20 | +70 | °C | |
| Storage Temperature | Non Operational | -40 | +105 | °C | |
| Relative Humidity | Vi nom, Io nom | 95 | % RH | ||
| Safety Standards | Design refer to UL62368-1,IEC62368-1 | ||||
| EMI Conduction & Radiation | EN55032,CLASS B(See Fig. 1 for recommended circuit) | ||||
| EMS Immunity | EN61000 (See Fig. 1 for recommended circuit) | ||||
| Dimension | L66.5 x W47.5 x H22 mm | ||||
| Cooling | Free air convection | ||||
Certification

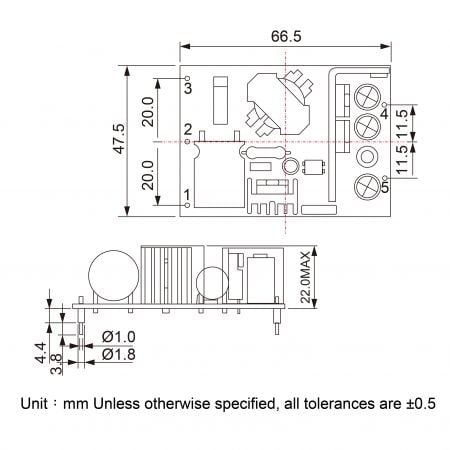

- Markings and Dimensions Related Products Files Download
-
-
