GP12 Series
YDS
10~15W 4KVac Isolation Single Output AC to DC Power Conversion
Universal input 90~264VAC.
High efficiency at 85% typical.
Protection: short circuit/overload/over voltage.
Internal input filter.
3 years warranty.
ROHS compliant.
| Part Number | Output Wattage | Output Voltage | Output Current | Ripple & Noise | Efficiency |
|---|---|---|---|---|---|
| (W) | (VDC) | (mA) | (mV) max(Note) | (TYP %) | |
| GP12-S03 | 10.0 | 3.3 | 3000 | 100 | 72 |
| GP12-S05 | 12.0 | 5 | 2400 | 100 | 74 |
| GP12-S09 | 12.0 | 9 | 1330 | 100 | 80 |
| GP12-S12 | 15.0 | 12 | 1250 | 150 | 82 |
| GP12-S15 | 15.0 | 15 | 1000 | 150 | 83 |
| GP12-S24 | 15.0 | 24 | 625 | 240 | 84 |
| GP12-S36 | 15.0 | 36 | 416 | 240 | 85 |
| GP12-S48 | 15.0 | 48 | 313 | 240 | 85 |
| Parameters | Conditions | Min | Typ | Max | Units | |
|---|---|---|---|---|---|---|
| Rated Input Voltage | Vo, Io nom | 100 ~ 240 | Vac | |||
| Voltage Range | Vo, Io nom | AC in | 90 | 264 | Vac | |
| DC in | 120 | 370 | Vdc | |||
| Line Frequency | Vi nom, Io nom | 47 | 50/60 | 63 | Hz | |
| Inrush Current | Io nom | Vi: 115VAC | 10 | A | ||
| Vi: 230VAC | 20 | A | ||||
| Input Fuse | VDE/UL/CCC FUSE 2.5A/250V (Slow blow) | |||||
| Parameters | Conditions | Min | Typ | Max | Units | |
|---|---|---|---|---|---|---|
| Output Voltage Accuracy | Vi nom, Io nom | 3.3...9V Models | ± 3 | % | ||
| 12...48V Models | ± 2 | % | ||||
| Minimum Load | Vi nom | 0 | % | |||
| Line Regulation | Io nom, Vi min…Vi max | ± 1 | % | |||
| Load Regulation | Vi nom, Io min…Io nom | ± 2 | % | |||
| Transient Recovery time | Vi nom,Io nom = ← →0.5 Io nom | 1000 | us | |||
| Protection | Over Load | Above 110% rated output power | ||||
| Protection type: Recovers automatically after fault condition is removed | ||||||
| Short circuit | Recovers automatically after fault condition is removed | |||||
| Over Voltage | 120%-150% rated output Voltage | |||||
| Protection type: Zener diode clamp | ||||||
Note:
Ripple & noise is measured by using 20 MHz bandwidth, measured with a 47uf paralleled with a high-frequency 0.47uf capacitor across each output by full load.
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Switching Frequency | Vi nom, Io nom | 65 | KHz | ||
| Isolation Voltage | Input / Output | 4KVac / 5mA / 5Secs | |||
| Isolation Resistance | Input / Output, @500 Vdc | 100 | MΩ | ||
| Operating Temperature | Operating at Vi nom, Io nom | -20 | +70 | ℃ | |
| Derating | Vi nom,Io nom+51 to 71℃ | 2 | %/℃ | ||
| Storage Temperature | Non Operational | -40 | +85 | ℃ | |
| Relative Humidity | Vi nom, Io nom | 95 | % RH | ||
| Safety Standards | Design refer to EN60950-1 | ||||
| EMI Conduction & Radiation | Design refer to EN55022 | ||||
| EMS Immunity | Design refer to EN55024 | ||||

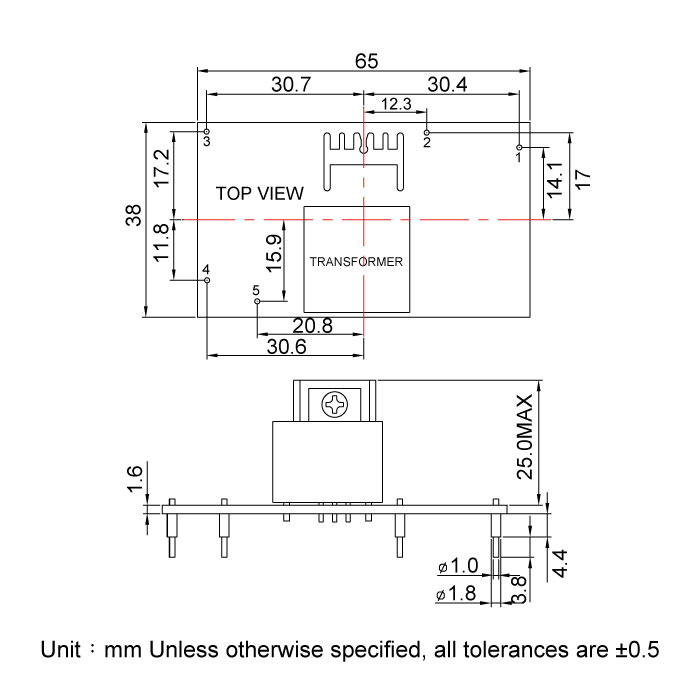

| Dimension | L65 x W38 x H25.0MAX | ||||
| Cooling | Free air convection | ||||
