82FB Series

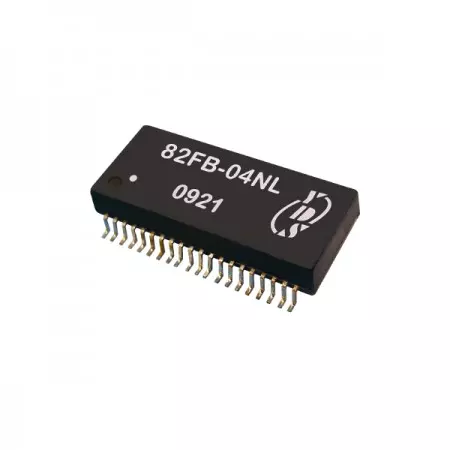

LAN Filter, Ethernet Magnetics Module with Integrated TX/RX Isolation Transformers and Common-Mode Chokes For Internet and telecom equipment
10/100/1000 Base-T 48 pin SOIC LAN filter is designed for long haul Gigabit Ethernet 10/100/1000 Base-T, full duplex applications. 82FB series supports 4 pairs of category 5 UTP cable, and compliant with IEEE 802.3ab standards for 1000 Base-T. This product has passed the UL 60950-1 safety certification.
As a specialized manufacturer with strong R&D capabilities, we provide the Integrated Magnetics Module and Space saving Ethernet Filter for high-end musical instruments and aerospace equipment. Our PCB Mount LAN Filter SMD functions as a high-performance Network Filter, featuring an Ethernet Coupling Transformer for stable VoIP and network devices. This Industrial Grade Filter is a Compact 10/100/1000 Ethernet filter and RoHS Certified LAN Filter, making it the ideal LAN Filter for IoT Devices in the SOIC Filter Package. We also offer Custom LAN Filter Solutions to meet your specific telecommunications and wireless network requirements.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
Features
- Designed for ethernet 10/100/1000 Base-T applications.
- Supports 4 pairs of category 5 UTP cable.
- Cable interface for isolation and low common mode emissions.
- Compliant with IEEE 802.ab standard for 1000 Base-T.
- Recognized by UL 60950-1.
Applications
- Internet equipment.
- telecom equipment.
- wireless router station.
- VoIP devices.
- Aviation.
- Musical Instruments.
Electrical Specifications@25°C; Operating Temperature -40°C to 85°C
| Part Number | Insertion Loss (dB MAX) | Return Loss (dB min @100 Ω) | Differential to Common Mode Rejection (dB TYP) | Crosstalk (dB TYP) | Hipot (Vrms) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.3-100 MHz | 1-30 MHz | 40 MHz | 50 MHz | 60-80 MHz | 100 MHz | 30 MHz | 60 MHz | 100 MHz | 30 MHz | 60 MHz | 100 MHz | @60Hz | |
| 82FB-01ENL | -1.0 | -16 | -14.4 | -13.1 | -12 | -10 | -45 | -40 | -35 | -43.5 | -37.5 | -33 | 1500 |
| 82FB-02NL | -1.0 | -18 | -14 | -13 | -12 | -10 | -43 | -37 | -33 | -40 | -35 | -30 | 1500 |
Certification

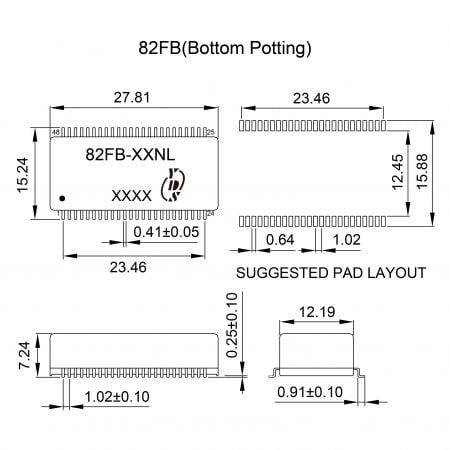

- Mechanicals and Dimensions Related Products Files Download
-
-
