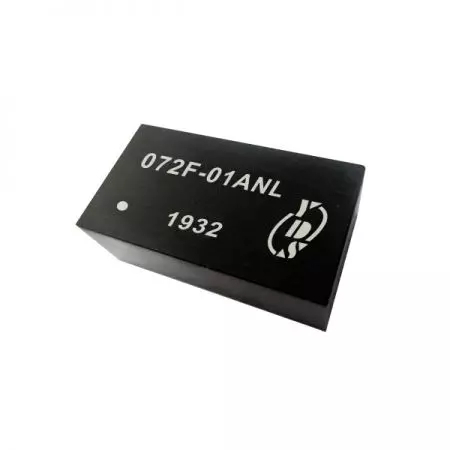

Quad Port 100/1000 Base-T LAN Filter DIP Package
072F Series
Ethernet Magnetics Module 100/1000 Base-T Quad Port For Internet and Telecom equipment
Quad port 100/1000 Base-T 72 Pin DIP LAN filter. 072F Series complies with 802.3 and ANSI X3.263 standards including 350uH OCL 8mA bias current.
High-performance 10/100/1000 Base-T and Gigabit Ethernet Transformers for mission-critical connectivity. Featuring Quad Port LAN Transformers, LAN Magnetic Filters, and DIP LAN Transformers, our solutions ensure reliable signal integrity in network equipment, telecom, wireless networks, and aerospace applications.
The LAN filter products of Yuan Dean are RoHS compliant and can be customized.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
Features
- Meet IEEE 802.3 and ANSI X3.263 standards including 350 uH OCL with 8mA Bias.
Applications
- Internet equipment.
- telecom equipment.
- wireless router station.
- VoIP devices.
- Aviation.
- Musical Instruments.
Electrical Specifications@25°C; Operating Temperature 0°C to 70°C
| Part Number | Turns Ratio (±5%) | LK (uH MAX) | Cw/w (pF MAX) | D.C.R (ΩMAX) | Insertion Loss (dB MAX) |
|---|---|---|---|---|---|
| TX | 100KHz/ 0.2V | 100KHz/ 0.2V | ------ | 1-100 MHz | |
| 072F-01ANL | 1CT:1CT | 0.5 | 120 | 1.4 | -1.0 |
| Part Number | Return Loss (dB MIN) | Crosstalk (dB MIN) | Hipot Vrms MIN | ||||
|---|---|---|---|---|---|---|---|
| 1-30 MHz | 40 MHz | 50 MHz | 60-80 MHz | 80-100 MHz | 1-100 MHz | ||
| 072F-01ANL | -18 | -14.4 | -13.1 | -12 | -10 | -30 | 1500 |
Certification

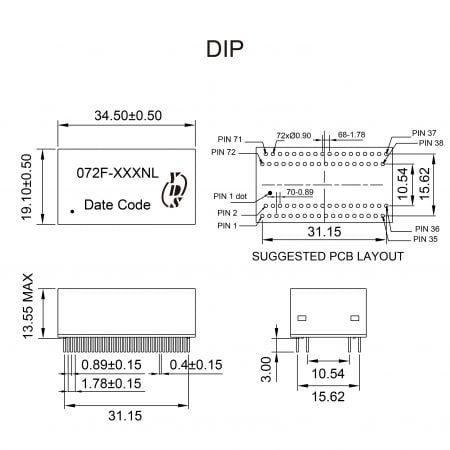

- Mechanicals and Dimensions Related Products Files Download
-
-
