10/100/1000 Base-T SMD24 LAN Filter Magnetics, 1500Vrms Isolation, PC Card Application
‹ › 10/100/1000 Base-T SMD24 LAN Filter Magnetics, 1500Vrms Isolation, PC Card application

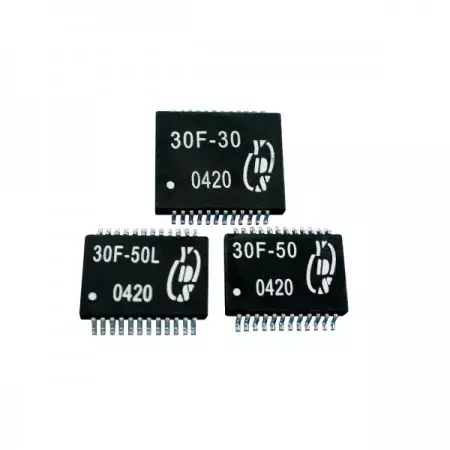

30F-3X/5X Series
SMD24 Ethernet Magnetics Module, 10/100/1000 Base-T For Internet and telecom equipment equipment
10/100/1000 Base-T PC Card LAN filter. 30F-3X/5X Series is designed for long haul Gigabit Ethernet 100/1000 Base-T, full duplex applications and supports 4 pairs of category 5 UTP cable. This LAN filter compliant with all IEEE 802.3 and ANSI X3.236 standards including 350uH OCL with 8mA bias. This product has passed the UL 60950-1 safety certification.
Our company offers the 30F-3X/5X series, an Industrial Grade Filter featuring an Integrated Magnetics Module and high-performance Magnetic Module. This Small form factor Ethernet transformer is designed as a Low profile 10/100/1000 Base-T filter and serves as a reliable PCB Mount LAN Filter SMD. As a RoHS Certified LAN Filter, it is perfect for network equipment, telecom devices, wireless networks, VoIP equipment, aviation instruments, and musical instruments.
The LAN filter products of Yuan Dean are RoHS compliant and can be customized.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
Features
- Designed for long haul Gigabit Ethernet 100/1000 Base-T, full duplex applications.
- Supports 4 pairs of category 5 UTP cable.
- Recognized by UL 60950-1.
- Cable interface for isolation and low common mode emissions.
- Meets all IEEE 802.3 and ANSI X3.236 standards including 350uH OCL with 8mA bias.
Applications
- Internet equipment.
- telecom equipment.
- wireless router station.
- VoIP devices.
- Aviation.
- Musical Instruments.
Electrical Specifications@25°C; Operating Temperature 0°C to 70°C
| Part Number | Insertion Loss (dB MAX) | Return Loss (dB min @100 Ω) | Differential to Common Mode (dB min) | Crosstalk (dB min) | Hipot (Vrms min) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1-100 MHz | 1-30 MHz | 40 MHz | 50 MHz | 60-80 MHz | 100 MHz | 30 MHz | 60 MHz | 100 MHz | 30 MHz | 60 MHz | 100 MHz | ||
| 30F-30NL | -1.0 | -18 | -14.4 | -13.1 | -12 | -10 | -43 | -37 | -33 | -45 | -40 | -35 | 1500 |
| 30F-50NL | -1.0 | -18 | -14.4 | -13.1 | -12 | -10 | -43 | -37 | -33 | -45 | -40 | -35 | 1500 |
| 30F-51NL | -1.0 | -18 | -14.4 | -13.1 | -12 | -10 | -43 | -37 | -33 | -45 | -40 | -35 | 1500 |
Certification

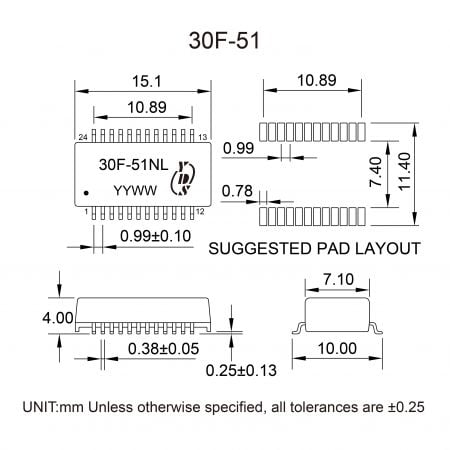

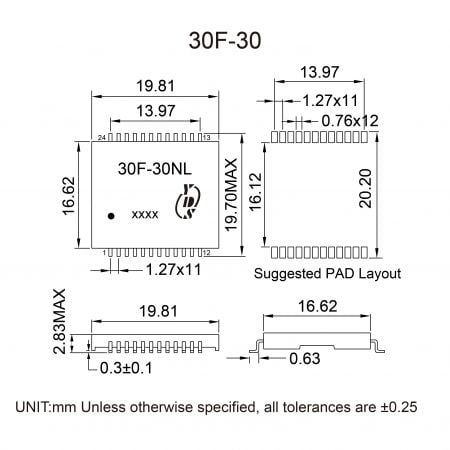

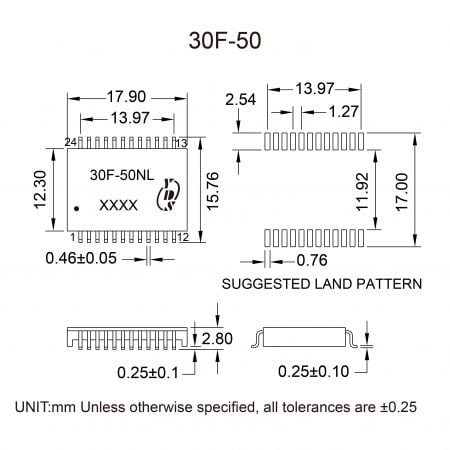

- Mechanicals and Dimensions Related Products Files Download
-
-
