Dual Port 100/1000 Base-T LAN Filter DIP Package
‹ › Product Features

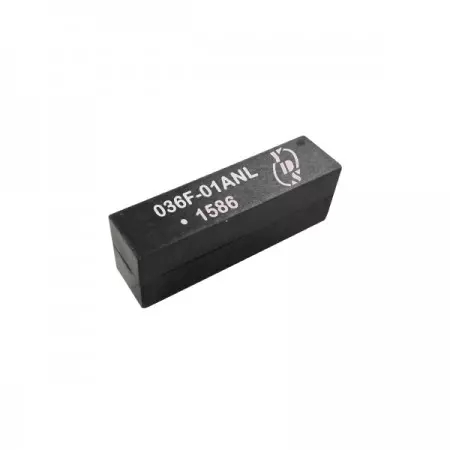

Dual Port 100/1000 Base-T LAN Filter DIP Package
036F Series
Ethernet Magnetics Module 100/1000 Base-T Dual Port For Internet and Telecom equipment
100/1000 Base-T dual port 36 Pin DIP LAN filter. 036F Series complies with 802.3 and ANSI X3.263 standards including 350uH OCL 8mA bias current.
Our 10/100/1000 Base-T magnetics provide superior signal integrity for industrial and PC applications. As a high-performance LAN transformer module, this Ethernet magnetic filter features an Ethernet Isolation Transformer design for robust protection. Choose our Dual Port LAN Transformer or LAN Magnetic Filter for reliable network connectivity.
The LAN filter products of Yuan Dean are RoHS compliant and can be customized.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
Features
- Meet IEEE 802.3 and ANSI X3.263 standards including 350 uH OCL with 8mA Bias.
Applications
- Internet equipment.
- telecom equipment.
- wireless router station.
- VoIP devices.
- Aviation.
- Musical Instruments.
Electrical Specifications@25°C; Operating Temperature 0°C to 70°C
| Part Number | Turns Ratio (±5%) | LK (uH MAX) | Cw/w (pF MAX) | D.C.R (ΩMAX) | Insertion Loss (dB MAX) | Return Loss (dB MIN) | |||
|---|---|---|---|---|---|---|---|---|---|
| TX | 100KHz/ 0.2V | 100KHz/ 0.2V | ------ | 0.1-100 MHz | 1-30 MHz | 40 MHz | 50 MHz | 60-80 MHz | |
| 036F-01ANL | 1CT:1CT | 0.5 | 120 | 1.2 | -1.0 | -18 | -14.4 | -13.1 | -12 |
| Part Number | Crosstalk (dB TYP) | Hipot Vrms MIN | |||
|---|---|---|---|---|---|
| 1 MHz | 30 MHz | 60 MHz | 100 MHz | ||
| 036F-01ANL | -50 | -40 | -35 | -30 | 1500 |
Certification

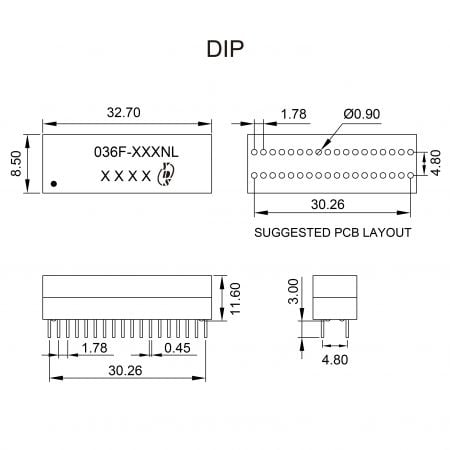

- Mechanicals and Dimensions Related Products Files Download
-
-
| Photo | Transfer Rate | TAB | LED | Port Count | PoE | Mounting Type | Shielding / Shield Tabs | Datasheet |
|---|---|---|---|---|---|---|---|---|

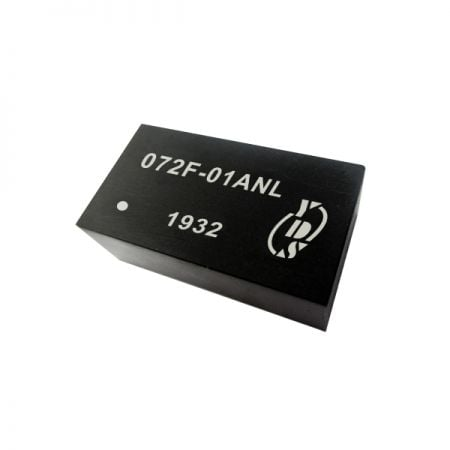

 Quad Port 100/1000 Base-T LAN Filter DIP Package | ||||||||

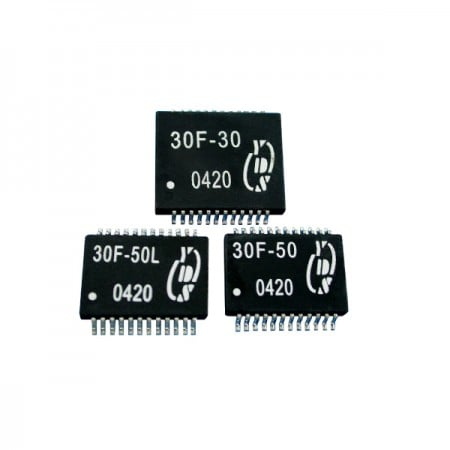

 10/100/1000 Base-T SMD24 LAN Filter Magnetics, 1500Vrms Isolation, PC Card Application | ||||||||

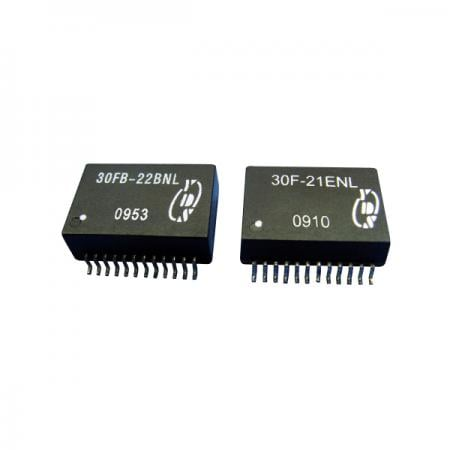

 10/100/1000 Base-T SOIC24 LAN Filter Magnetics 1500Vrms Isolation | ||||||||

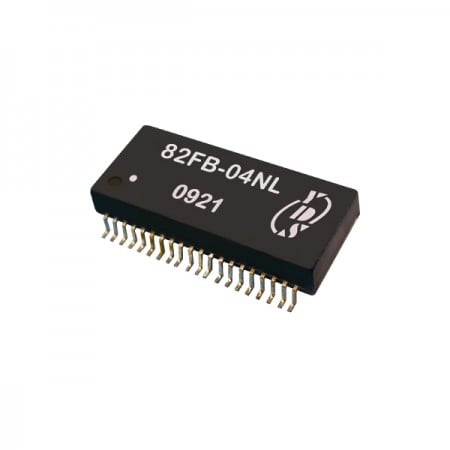

 Ethernet Magnetics Module, 4 Ports 10/100/1000 Base-Tx, 1500Vrms Isolated, 48PIN SOIC Package | ||||||||

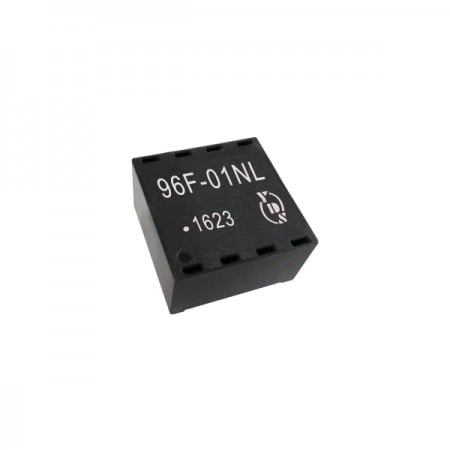

 Ethernet Magnetics Module, Quad Ports 100/1000 Base-T,DIP96 Package |
