Single Port 10/100 Base-T SMD16 LAN Filter
‹ › Single Port 10/100 Base-T SMD16 LAN Filter
13FB Series

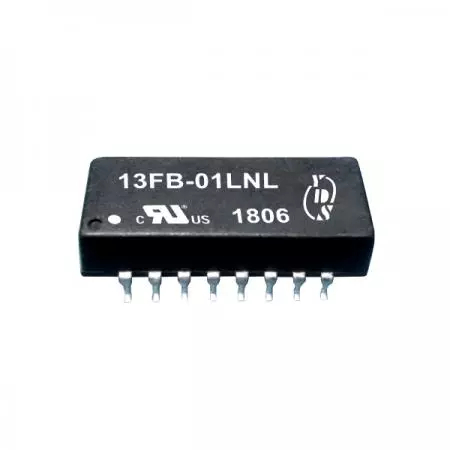

Ethernet Magnetics Module 10/100 Base-T SMD16 Type For Internet and telecom equipment
10/100 Base-T single port LAN filter that complies with IEEE 802.3 and ANSI X3.263 standards and includes a 350uH minimum OCL with 8mA bias current. The IC grade transfer molded package can withstand IR reflow at 235°C. 13FB series has a patented interlocking base structure for high reliability. This product has passed UL 1950 certification.
High-performance SMD LAN Filter and 10/100 Base-T LAN Filter for VOIP, wireless networking, telecom/datacom, and aerospace. We offer Industrial Ethernet Filter, Compact 10/100 Ethernet filter, and Industrial grade low profile LAN filter solutions with Integrated Magnetics Module and premium Magnetic Module.
The LAN filter products of Yuan Dean are RoHS compliant and can be customized.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
Features
- Meets all IEEE 802.3 and ANSI X3.236 standards including 350uH OCL with 8 mA bias.
- IC grade transfer-molded package withstands 235°C IR reflow.
- Recognized by UL 1950.
Applications
- Internet equipment.
- telecom equipment.
- wireless router station.
- VoIP devices.
- Aviation.
- Musical Instruments.
Electrical Specifications@25°C; Operating Temperature -40°C to 85°C
| Part Number | Insertion Loss (dB MAX) | Return Loss (dB MIN) | Differential to Common Mode Rejection (dB MIN) | Crosstalk (dB TYP) | Hipot Vrms MIN | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.3-100 MHz | 1-30 MHz | 40 MHz | 50 MHz | 60-80 MHz | 30 MHz | 60 MHz | 100 MHz | 30 MHz | 60 MHz | 100 MHz | ||
| 13FB-01LNL | -1.0 | -18 | -18 | -16 | -12 | -50 | -45 | -40 | -55 | -50 | -45 | 1500 |
| 13FB-04NL | -1.0 | -22 | -20 | -18 | -12 | -45 | -40 | -35 | -50 | -40 | -40 | 1500 |
Certification

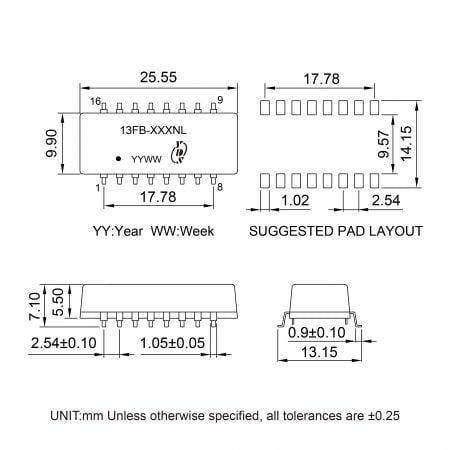

- Markings and Dimensions Related Products Files Download
-
-
| Photo | Transfer Rate | TAB | LED | Port Count | PoE | Mounting Type | Shielding / Shield Tabs | Datasheet |
|---|---|---|---|---|---|---|---|---|
 10/100 Base-T Single Port LAN Filter | ||||||||
 10/100 Base-T DIL16 LAN Filter,PC Card Application | ||||||||
 10/100 Base-T SMD16 LAN Filter,PC Card Application | ||||||||
 Ethernet Magnetics Module, 4 Ports 10/100Base-Tx, Auto MDI/MDIX,1500Vrms Isolated,SOIC-40 Package |
