13F-1X Series

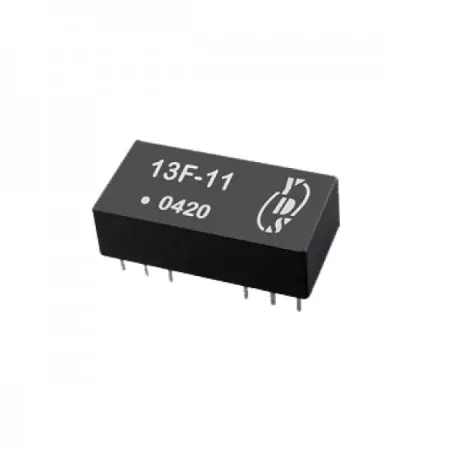

Ethernet Magnetics Module 10/100 Base-T DIL16 Package For Internet and telecom equipment
10/100 Base-T PC Card LAN filter. 13F-1X series complies with IEEE 802.3 and ANSI X3.263 standards, including 350 μH minimum OCL, 8 mA bias current. The storage temperature range is from -25°C to +105°C.
As a specialist in Custom Transformer OEM/ODM, we provide 10/100 Base-T LAN Filter and Network Filter for network equipment, musical instruments, wireless networks, telecom/datacom, and aerospace equipment. Our range includes DIP LAN Filter, PCB Mount LAN Filter DIP, and Industrial PCB Mount LAN Filter featuring Magnetic Module and RoHS Certified LAN Filter quality.
The LAN filter products of Yuan Dean are RoHS compliant and can be customized.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
Features
- Compliant with IEEE 802.3u and ANSI X3.263 standards including 350uH OCL with 8mA Bias.
- Storage temperature range: -25°C to +105°C.
Applications
- Internet equipment.
- telecom equipment.
- wireless router station.
- VoIP devices.
- Aviation.
- Musical Instruments.
Electrical Specifications@25°C; Operating Temperature 0°C to 70°C
| Part Number | Turns Ratio(±5%) | Insertion Loss (dB MAX) | Return Loss (dB MIN @100Ω) | Crosstalk (dB TYP) | DCMR (dB MIN) | Hipot (Vrms) | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Transmit | Receive | 0.3-100MHz | 30 MHz | 40 MHz | 50 MHz | 60 MHz | 80 MHz | 0.3-100 MHz | 0.3-100 MHz | ||
| 13F-11NL | 1CT:1 | 1CT:1CT | -1.15 | -16 | -14 | -13.5 | -13 | -12 | -35 | -30 | 1500 |
| 13F-12NL | 1CT:1CT | 1CT:1CT | -1.15 | -16 | -14 | -13.5 | -13 | -12 | -35 | -30 | 1500 |
| 13F-13NL | 1CT:1CT | 1CT:1CT | -1.0 | -16 | -13 | -13 | -13 | -10 | -38 | -30 | 1500 |
Certification

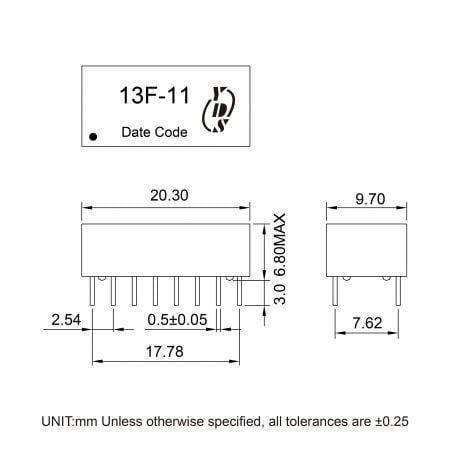

- Markings and Dimensions Related Products Files Download
-
-
