10/100 Base-T SMD16 LAN Filter,PC Card Application
‹ › 10/100 Base-T SMD16 LAN Filter,PC Card application
13F-3X Series

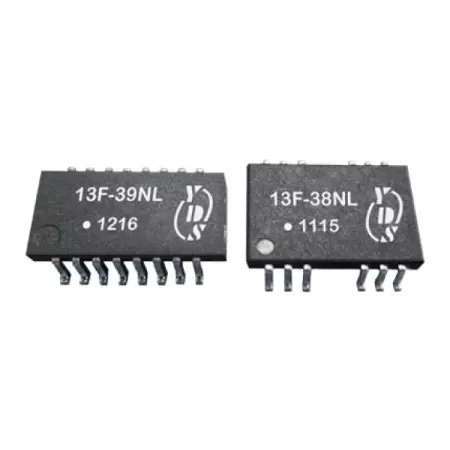

Ethernet Magnetics Module 10/100 Base-T SMD16 Package For Internet and telecom equipment
10/100 Base-T PC Card LAN filter with half port and single port designs for maximum layout flexibility. 13F-3X series has low profile packages from 0.094"(2.39 mm) to 0.078"(1.98 mm) for PC Card. This product has passed UL 60950-1 safety certification.
Professional Custom Transformer OEM/ODM and DC-DC converter manufacturer offering 10/100 Base-T LAN Filter and Industrial PCB Mount LAN Filter. Our PCB Mount LAN Filter SMD and Magnetic LAN Magnetics feature a low profile LAN filter design for networking, musical instruments, wireless, telecom/datacom, and aerospace. All products are RoHS Certified LAN Filter and high-quality Magnetic Module.
The LAN filter products of Yuan Dean are RoHS compliant and can be customized.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
Features
- Half port and single port designs for maximum layout flexibility.
- Low profile packages from 0.094” (2.39 mm) to 0.078” (1.98 mm) for PC Card.
- Recognized by UL 60950-1.
Applications
- Internet equipment.
- telecom equipment.
- wireless router station.
- VoIP devices.
- Aviation.
- Musical Instruments.
Electrical Specifications@25°C; Operating Temperature 0°C to 70°C
| Part Number | Turns Ratio(±5%) | Insertion Loss (dB MAX.) | Return Loss (dB MIN) | Differential to Common Mode Rejection (dB MIN) | Crosstalk (dB MIN) | Hipot (Vrms) MIN | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Transmit | Receive | 0.3-100 MHz | 30 MHz | 60 MHz | 80 MHz | 30 MHz | 50 MHz | 100 MHz | 30 MHz | 62 MHz | 100 MHz | ||
| 13F-38NL | 1CT:1CT | 1CT:1CT | -1.0 | -17 | -12 | -10 | -30 | -30 | -30 | -40 | -35 | -30 | 1500 |
| 13F-39NL | 1CT:1CT | 1CT:1CT | -0.9 | -16 | -12 | -11 | -35 | -33 | -20 | -50 | -45 | -40 | 1500 |
Certification

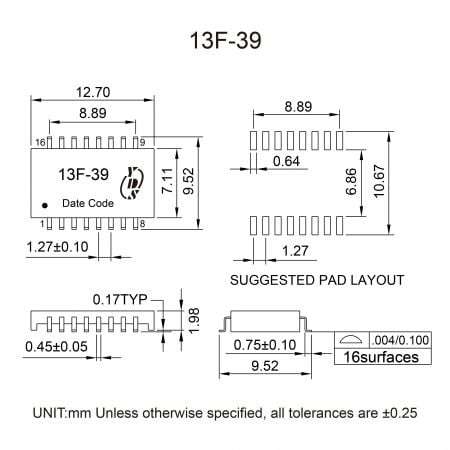

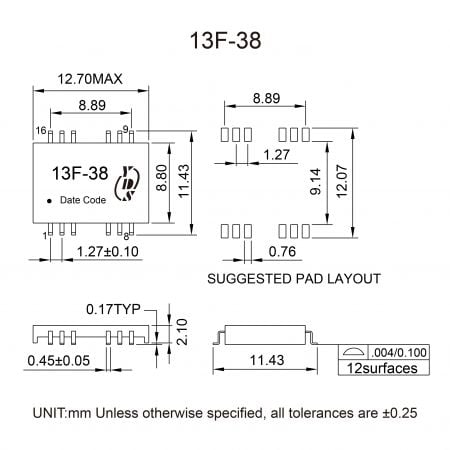

- Markings and Dimensions Related Products Files Download
-
-
| Photo | Transfer Rate | TAB | LED | Port Count | PoE | Mounting Type | Shielding / Shield Tabs | Datasheet |
|---|---|---|---|---|---|---|---|---|
 10/100 Base-T Single Port LAN Filter | ||||||||
 10/100 Base-T DIL16 LAN Filter,PC Card Application | ||||||||
 Single Port 10/100 Base-T SMD16 LAN Filter | ||||||||
 Ethernet Magnetics Module, 4 Ports 10/100Base-Tx, Auto MDI/MDIX,1500Vrms Isolated,SOIC-40 Package |
