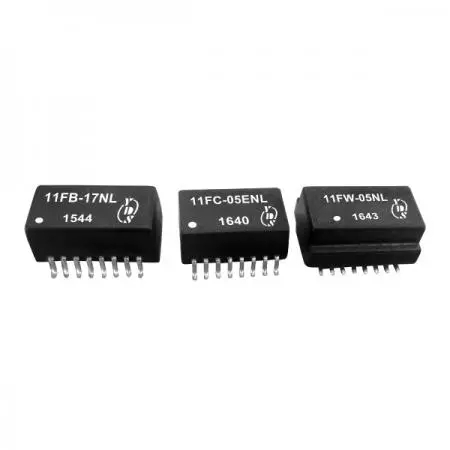

10/100 Base-T Single Port LAN Filter
‹ › 10/100 Base-T Single Port LAN Filter
11FB Series
Ethernet Magnetics Module 10/100 Base-T Single Port For Internet and wireless router station equipment
10/100 Base-T single port LAN filter. Compact footprint use in the most space restrictive applications. 11FB series meets IEEE 802.3 and ANSI X3.263 standards including 350 uH OCL with 8mA Bias. This product is designed to withstand IR reflow temperatures up to 240°C.
RoHS certified SMD LAN filters and compact LAN magnetics for high-reliability data transmission. Featuring 10/100 Base-T, Industrial Ethernet filters, and coupling transformers, our PCB mount solutions are ideal for instruments, networking, telecom, wireless, and aerospace.
The LAN filter products of Yuan Dean are RoHS compliant and can be customized.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
Features
- Meet IEEE 802.3 and ANSI X3.263 standards including 350 uH OCL with 8mA Bias.
- Designed to withstand IR reflow temperatures up to 240°C.
- Compact footprint use in the most space restrictive applications.
Applications
- Internet equipment.
- telecom equipment.
- wireless router station.
- VoIP devices.
- Aviation.
- Musical Instruments.
Electrical Specifications@25°C; Operating Temperature -40°C to 85°C
| Part Number | Turns Ratio (±5%) | Insertion Loss (dB MAX) | Return Loss (dB TYP) | Differential to Common Mode Rejection (dB MIN) | Crosstalk (dB TYP) | Hipot (Vrms) MIN | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TX | RX | 1-100 MHz | 30 MHz | 60 MHz | 80 MHz | 30 MHz | 50 MHz | 100 MHz | 30 MHz | 60 MHz | 100 MHz | ||
| 11FB-05NL | 1CT:1CT | 1CT:1CT | -1.0 | -16 | -10 | -10 | -40 | -37 | -33 | -45 | -40 | -30 | 1500 |
| 11FC-09NL | 1CT:1CT | 1CT:1CT | -1.0 | -18 | -14 | -12 | -40 | -40 | -40 | -35 | -35 | -35 | 1500 |
| 11FW-05NL | 1CT:1CT | 1CT:1CT | -1.1 | -18 | -15 | -13 | - | - | - | - | - | -35 | 1500 |
Certification

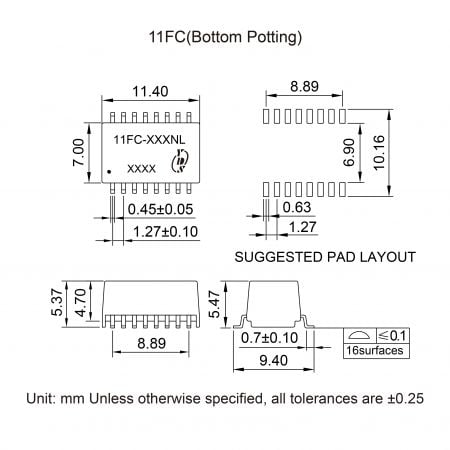

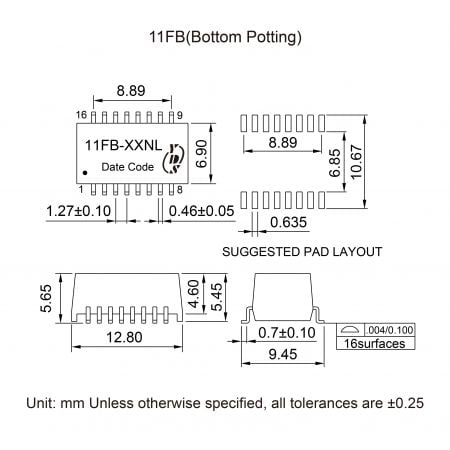

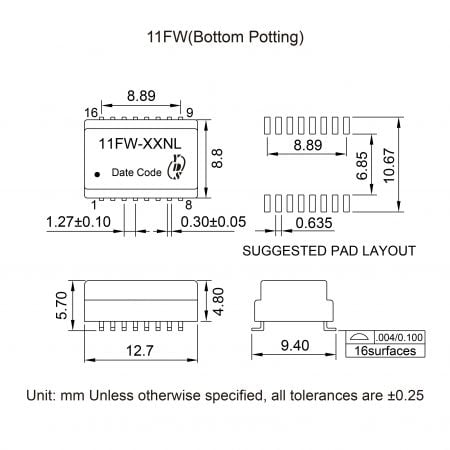

- Markings and Dimensions Related Products Files Download
-
-
