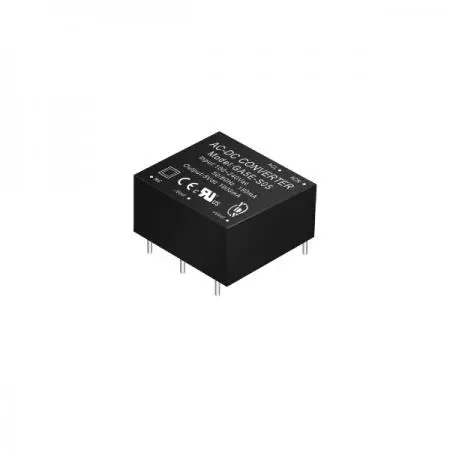

Ultra Compact Size 1.0" x 1.0" x 0.64" Package AC-DC Power Module For AC Main power supply system and Industrial Control
GA5E Series is an ultra-compact AC to DC power converter with a 1" x 1" footprint and up to 5W power output. It meets the EMC standard EN55032-B without requiring any external components. The DIL-5PIN package occupies only 25.4 x 25.4 x 16.1 mm of PCB space, making it an ideal solution for low-cost, space-saving designs. This AC to DC power converter provides a universal input voltage range of 90~264VAC, suitable for global applications. It features short-circuit, overload, and overvoltage protection, with efficiency up to 85%. The unit delivers 100% output at temperatures up to +50°C and maintains 60% output above +70°C.
The GA5E series is certified with UL/IEC/EN60950-1, UL/IEC/EN62368-1 (CB report), and CE marks. As a high-performance AC to DC power converter, it is RoHS-compliant and customizable to meet various needs. Products come with a 3-year warranty.
As a high quality power module vendor, we provide safety approved AC-DC power modules for computer equipment and industrial controls. This encapsulated AC to DC power module features an industrial isolation AC-DC module design, delivering a compact isolated power supply via board mount AC-DC converter. Ideal for embedded AC to DC power supply modules, IoT power supply modules, or fire security systems, our custom AC-DC power supply ensures reliable power for AC mains systems and electronic instruments.
OEM/ODM requirements are welcome. We look forward to cooperating with you!
| Quantity: | |
|---|---|
GA5E series is the ultra compact and smallest size of 5W, 1” x 1” AC-DC module converter on the market. The units meet EN55032-“B“ limits without any external components. Feature with DIL-5PIN of only 25.4 x 25.4 x16.1 mm of PCB small space, which is the best choice for low cost and space saving. And universal Input 90~264VAC which is suitable for worldwide use. With perfect efficiency up to 85% allows operating temperature to +50°C without power derating, and under operation temperature +70°C, the output wattage can still maintain up to 60%. This series is the best solution for different applications in industrial control, electric power, Instruments & communication, medical, railway & IGBT. The GA5E series were full certified of UL/IEC/EN60950-1 and UL/IEC/EN62368-1 with CB report, they were CE-marked as well.
| Part Number | Output Wattage | Output Voltage | Output Current | Ripple & Noise | Efficiency | Max. Capacitive Load |
|---|---|---|---|---|---|---|
| (W) | (VDC) | (mA) | (mV) max (Note) | (TYP %) | (μF) | |
| GA5E-S03-X | 5.0 | 3.3 | 1515 | 60 | 73 | 2200 |
| GA5E-S05-X | 5.0 | 5 | 1000 | 60 | 80 | 1000 |
| GA5E-S09-X | 5.0 | 9 | 555 | 90 | 81 | 300 |
| GA5E-S12-X | 5.0 | 12 | 416 | 120 | 81 | 160 |
| GA5E-S15-X | 5.0 | 15 | 333 | 150 | 82 | 100 |
| GA5E-S24-X | 5.0 | 24 | 208 | 240 | 82 | 43 |
| GA5E-S48-X | 5.0 | 48 | 104 | 480 | 84 | 10 |
Note:
X= ONE digit representing the output power (W) The output power is rising in steps of 1W from 1W to the max. output Power; When the output power is maximum power, X is omitted. E.g:3W=GA5E-S05-3, GA5E-S15-3 ; 5W=GA5E-S05, GA5E-S15
| Parameters | Conditions | Min | Typ | Max | Units | |
|---|---|---|---|---|---|---|
| Rated Input Voltage | Vo, Io nom | 100 ~ 240 | Vac | |||
| Voltage Range | Vo, Io nom | AC in | 90 | 264 | Vac | |
| DC in | 120 | 370 | Vdc | |||
| Line Frequency | Vi nom, Io nom | 47 | 50 | 63 | Hz | |
| Inrush Current | Io nom | Vi: 115VAC | 5 | A | ||
| Vi:230VAC | 10 | A | ||||
| Input Fuse | VDE / UL / CCC FUSE 2.5A /250V (Slow blow) | |||||
| Parameters | Conditions | Min | Typ | Max | Units | |
|---|---|---|---|---|---|---|
| Output Voltage Accuracy | Vi nom, Io nom | 3.3V, 5V Models | ± 3 | % | ||
| 9....48V Models | ± 2 | |||||
| Minimum Load | Vi nom | 0 | % | |||
| Line Regulation | Io nom, Vi min...Vi max | ± 1.0 | % | |||
| Load Regulation | ± 1.0 | % | ||||
| Transient Recovery Time | Vi nom, Io nom = ← → 0.5 Io nom | 1000 | us | |||
| Protection | Overload | Above 110% rated output power | ||||
| Protection type: Recovers automatically after fault condition is removed | ||||||
| Short Circuit | Recovers automatically after fault condition is removed | |||||
| Over Voltage | 120%-150% rated output Voltage | |||||
| Protection type: Zener diode clamp | ||||||
Notes:
Ripple & noise is measured by using 20 MHz bandwidth, measured with a 10uf paralleled with a high-frequency 1uf capacitor arcoss each output by full load.
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Switching Frequency | Vi nom, Io nom | 65 | KHz | ||
| Isolation Voltage | Input / Output | 3KVac / 5mA / 5Secs | |||
| Isolation Resistance | Input / Output, @500 Vdc | 100 | MΩ | ||
| Operating Temperature | Refer to Temperature Derating Graph | -25 | +70 | °C | |
| Storage Temperature | Non Operational | -40 | +85 | °C | |
| Relative Humidity | Vi nom, Io nom | 95 | % RH | ||
| Safety Standards | UL 62368-1，IEC 62368-1 approved | ||||
| EMI Conduction & Radiation | Compliance to EN55032,CLASS B | ||||
| EMS Immunity | Compliance to EN61000 | ||||

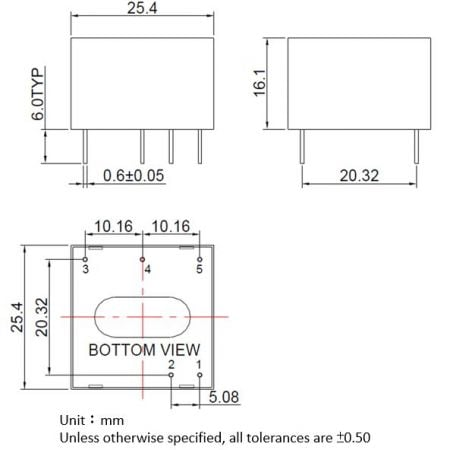

| Dimension | L 25.4 x W 25.4 x H 16.1 mm | ||||
| Cooling | Free air convection | ||||
