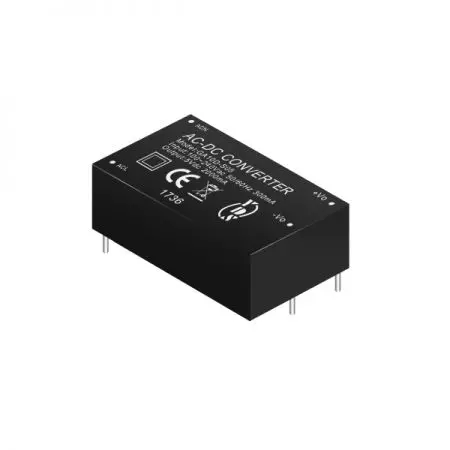

PCB Mount AC-DC Power Module For AC Main power supply system and Industrial Control equipement
AC to DC power supply module features 10~12 watt power and 4KVac isolation voltage. This product is single output type, universal input is 90 ~ 264VAC. It has short-circuit and overload protection, and is a regulated output type. This product packaged by fully encapsulated plastic case. The efficiency can reach up to 85%. GA10D series has passed CE certification.
Ensure high-level reliability with our global input AC-DC power supply, specifically designed for computer equipment and AC mains systems. This safety approved AC to DC power module features a reinforced isolation AC-DC converter design and is an IEC 60335 AC-DC power module, making it the ideal household appliance AC-DC converter. As an EN55032/EN55024 EMC/EN61000 compliant AC-DC module, this encapsulated AC to DC power module integrates easily as an embedded AC-DC power supply module for fire security systems and electronic instruments. This RoHS/REACH compliant AC to DC converter serves as an industrial certified AC-DC converter with a board mount AC-DC converter footprint, also offering a custom AC-DC power supply 10~12W as a versatile AC-DC switching power module for industrial controls.
The AC-DC power converter products of Yuan Dean are RoHS-compliant, and can be customized for products. The products are guaranteed for 3 years after sale.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
| Quantity: | |
|---|---|
| Part Number | Output Wattage | Output Voltage | Output Current | Ripple & Noise | Efficiency |
|---|---|---|---|---|---|
| (W) | (VDC) | (mA) | (mV) max (Note) | (TYP %) | |
| GA10D-S03 | 6.6 | 3.3 | 2000 | 150 | 72 |
| GA10D-S05 | 10.0 | 5 | 2000 | 150 | 75 |
| GA10D-S10 | 10.0 | 10 | 1000 | 150 | 80 |
| GA10D-S12 | 12.0 | 12 | 1000 | 150 | 82 |
| GA10D-S15 | 12.0 | 15 | 800 | 150 | 82 |
| GA10D-S24 | 12.0 | 24 | 500 | 150 | 85 |
| GA10D-S36 | 12.0 | 36 | 330 | 240 | 85 |
| GA10D-S48 | 12.0 | 48 | 250 | 240 | 85 |
Note:
1. Ripple & noise is measured by using 20 MHz bandwidth, measured with a 47uf paralleled with a high-frequency 0.47uf capacitor arcoss each output by full load.
2. Only GA10D-S05-A recognized by CB.
| Parameters | Conditions | Min | Typ | Max | Units | |
|---|---|---|---|---|---|---|
| Rated Input Voltage | Vo, Io nom | 100 ~ 240 | Vac | |||
| Voltage Range | Vo, Io nom | AC in | 90 | 264 | Vac | |
| DC in | 120 | 370 | Vdc | |||
| Line Frequency | Vi nom, Io nom | 47 | 50/60 | 63 | Hz | |
| Inrush Current | Io nom | Vi: 115VAC | 10 | A | ||
| Vi: 230VAC | 20 | A | ||||
| Parameters | Conditions | Min | Typ | Max | Units | |
|---|---|---|---|---|---|---|
| Output Voltage Accuracy | Vi nom, Io nom | 3.3....V Models | ± 3 | % | ||
| 10....48V Models | ± 2 | % | ||||
| Minimum Load | Vi nom | 0 | % | |||
| Line Regulation | Io nom, Vi min....i max | ± 0.2 | % | |||
| Load Regulation | Vi nom, Io min....o nom | 3.3V Models | ± 1.0 | % | ||
| 5....48V Models | ± 0.5 | % | ||||
| Transient Recovery time | Vi nom, Io nom = ← → 0.5 Io nom | 1000 | us | |||
| Protection | Over Load | Above 110% rated output power | ||||
| Protection type: Recovers automatically after fault condition is removed | ||||||
| Short Circuit | Recovers automatically after fault condition is removed | |||||
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Switching Frequency | Vi nom, Io nom | 65 | KHz | ||
| Isolation Voltage | Input / Output | 4KVac / 5mA / 5Secs | |||
| Isolation Resistance | Input / Output, @500 Vdc | 100 | MΩ | ||
| Operating Temperature | Refer to Temperature Derating Graph | -40 | +70 | °C | |
| Storage Temperature | Non Operational | -40 | +105 | °C | |
| Relative Humidity | Vi nom,Io nom | 95 | % RH | ||
| Safety Standards | Design refer to UL60950-1, IEC60950-1 | ||||
| EMI Conduction & Radiation | EN55022, CLASS B (See Fig. 1 for recommended circuit) | ||||
| EMS Immunity | EN61000 (See Fig. 1 for recommended circuit) | ||||

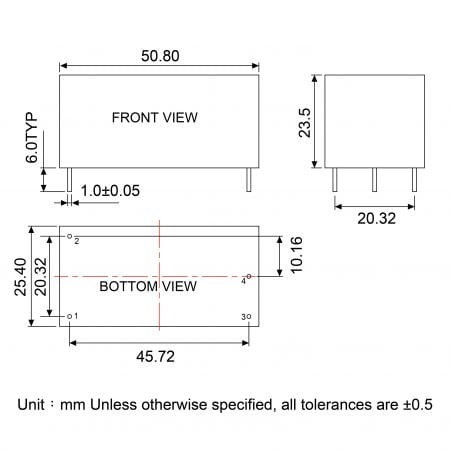

| Dimension | L 50.8 x W 25.4 x H 23.5 mm | ||||
| Cooling | Free air convection | ||||
