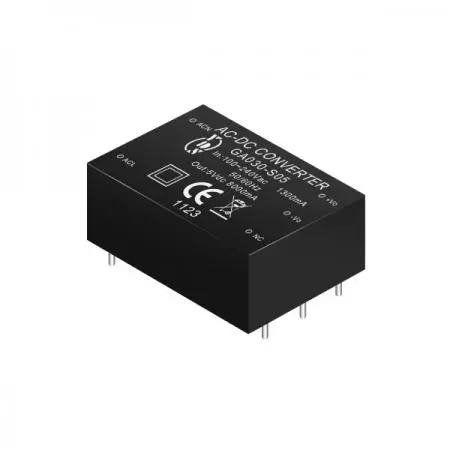

PCB Mount AC-DC Power Module Support For Industrial Automation、IoT & Telecommunications and Smart Home Appliances
26~48 watt regulated output AC to DC power module features 3KVac isolation voltage and universal input 90~264VAC. GA030 series has short-circuit, overload and over-voltage protection. It has both single output and dual output specifications. This product is packaged by fully encapsulated plastic case and contains internal input filter. The efficiency can reach up to 88%. GA030 series products have passed CE certification.
For robust performance in computer equipment and industrial controls, this industrial grade AC-DC converter offers a universal input AC to DC power module solution. As a RoHS/REACH compliant AC-DC converter, it features an encapsulated AC-DC power module design that is both an industrial certified AC-DC converter and an EN55032/EN55024 EMC compliant AC-DC module. This PCB mount AC to DC converter serves as a compact 26~48W isolated power supply, making it a perfect IoT device power supply 26~48W for fire security systems and AC mains systems. Integrate this safety approved AC to DC power module into your embedded AC-DC power supply module architecture or electronic instruments via our high-efficiency AC-DC switching power module.
The AC-DC power converter products of Yuan Dean are RoHS-compliant, and can be customized for products. The products are guaranteed for 3 years after sale.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
| Quantity: | |
|---|---|
| Part Number | Output Wattage | Output Voltage | Output Current | Ripple & Noise | Efficiency |
|---|---|---|---|---|---|
| (W) | (VDC) | (mA) | (mV) max (Note) | (TYP %) | |
| GA030-S03 | 26.4 | 3.3 | 8000 | 150 | 72 |
| GA030-S05 | 40.0 | 5 | 8000 | 150 | 75 |
| GA030-S06 | 40.0 | 6 | 6650 | 150 | 75 |
| GA030-S07 | 40.0 | 7 | 5700 | 150 | 80 |
| GA030-S08 | 40.0 | 8 | 5000 | 150 | 80 |
| GA030-S09 | 40.0 | 9 | 4400 | 150 | 82 |
| GA030-S10 | 40.0 | 10 | 4000 | 150 | 82 |
| GA030-S12 | 42.0 | 12 | 3500 | 150 | 84 |
| GA030-S13 | 42.0 | 13 | 3200 | 150 | 84 |
| GA030-S14 | 42.0 | 14 | 3000 | 150 | 84 |
| GA030-S15 | 42.0 | 15 | 2800 | 150 | 84 |
| GA030-S16 | 42.0 | 16 | 2625 | 150 | 85 |
| GA030-S18 | 42.0 | 18 | 2300 | 150 | 85 |
| GA030-S24 | 42.0 | 24 | 1750 | 240 | 86 |
| GA030-S27 | 42.0 | 27 | 1550 | 240 | 86 |
| GA030-S36 | 43.2 | 36 | 1200 | 240 | 86 |
| GA030-S48 | 48.0 | 48 | 1000 | 240 | 88 |
| GA030-D05 | 40.0 | ± 5 | ± 4000 | 150 | 75 |
| GA030-D12 | 42.0 | ± 12 | ± 1750 | 150 | 80 |
| GA030-D15 | 42.0 | ± 15 | ± 1400 | 150 | 80 |
| GA030-D24 | 42.0 | ± 24 | ± 875 | 240 | 80 |
| GA030-D0305 | 26.5 | Vo1 = +3.3, Vo2 = +5 | Io1 = 5000, Io2 = 2000 | 150 (Vo1) 240 (Vo2) | 72 |
| GA030-D0512 | 40.0 | Vo1 = +5, Vo2 = +12 | Io1 = 5000, Io2 = 1250 | 75 | |
| GA030-D0515 | 40.0 | Vo1 = +5, Vo2 = +15 | Io1 = 5000, Io2 = 1000 | 75 | |
| GA030-D0524 | 40.0 | Vo1 = +5, Vo2 = +24 | Io1 = 5000, Io2 = 625 | 78 |
| Parameters | Conditions | Min | Typ | Max | Units | |
|---|---|---|---|---|---|---|
| Rated Input Voltage | Vo, Io nom | 100 ~ 240 | Vac | |||
| Voltage Range | Vo, Io nom | AC in | 90 | 264 | Vac | |
| DC in | 120 | 370 | Vdc | |||
| Line Frequency | Vi nom, Io nom | 47 | 50/60 | 63 | Hz | |
| Inrush Current | Io nom | Vi: 115VAC | 25 | A | ||
| Vi: 230VAC | 50 | A | ||||
| Input Fuse | VDE / UL / CCC FUSE 2.5A / 250V (Slow blow) | |||||
| Parameters | Conditions | Min | Typ | Max | Units | |
|---|---|---|---|---|---|---|
| Output Voltage Accuracy | Vi nom, Io nom (Single output) | 3.3V....9V Models | ± 3 | % | ||
| 10....48V Models | ± 2 | |||||
| Dual Output | ± 5 | % | ||||
| Minimum Load | Vi nom | Single Output Models | 0 | % | ||
| Dual Output Models (each output) | 20 | % | ||||
| Line Regulation | Io nom, Vi min....Vi max | ± 1 | % | |||
| Load Regulation | Io min ~ Io nom | Single Output Models | ± 2 | % | ||
| Dual Output Models | ± 5 | % | ||||
| Transient Recovery Time | Vi nom, Io nom = ← → 0.5 Io nom | 1000 | us | |||
| Protection | Over load | Above 110% rated output power | ||||
| Protection type: Recovers automatically after fault condition is removed | ||||||
| Short circuit | Recovers automatically after fault condition is removed | |||||
| Over Voltage (Main Output) | 120%-150% rated output Voltage | |||||
| Protection type: Zener diode clamp | ||||||
Notes:
Ripple & noise is measured by using 20 MHz bandwidth, measured with a 47uf paralleled with a high-frequency 0.47uf capacitor arcoss each output by full load.
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Switching Frequency | Vi nom, Io nom | 65 | KHz | ||
| Isolation Voltage | Input / Output | 3KVac / 5mA / 5Secs | |||
| Isolation Resistance | Input / Output, @500 Vdc | 100 | MΩ | ||
| Operating Temperature | Operating at Vi nom, Io nom | -20 | +70 | °C | |
| Derating | Vi nom, Io nom +51 to 71°C | 2 | % / °C | ||
| Storage Temperature | Non Operational | -40 | +85 | °C | |
| Relative Humidity | Vi nom, Io nom | 95 | % RH | ||
| Safety Standards | EN62368-1 approved | ||||
| EMI Conduction & Radiation | Compliance to EN55032 | ||||
| EMS Immunity | Compliance to EN55024 | ||||

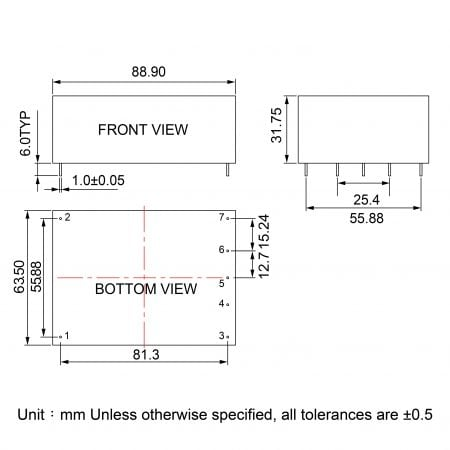

| Dimension | L 88.90 x W 63.50 x H 31.75 mm L 3.5 x W 2.5 x H 1.25 inches | ||||
| Cooling | Free air convection | ||||
