PCB Mount、Encapsulated and Open Frame AC-DC Power Module Available and For IoT 、 Smart Home and Industrial Control application

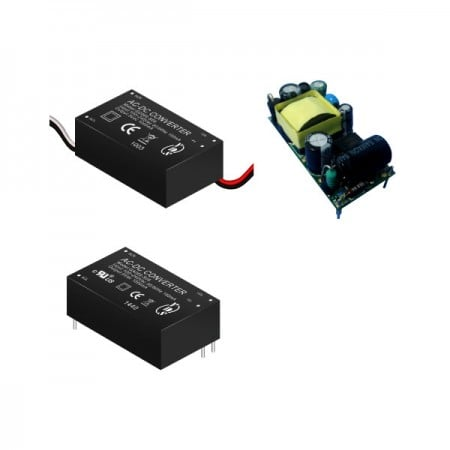

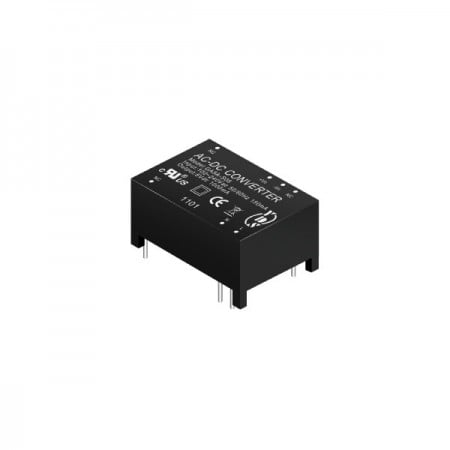

5 watt AC to DC power supply module with 3KVac isolation voltage and single output type. The product features universal input 90~264VAC. GX005 series is available in three different package types: module and open case. regulated output power converter with short-circuit, overload and overvoltage protection. The efficiency is up to 82%. This series has passed CE certification, and the GA005 series has passed UL 60950-1 certification and CB certification.
Designed for seamless integration, this compact & miniature AC-DC converter offers a universal input 90–264VAC with 3KV isolation and EN62368-1 compliance. This board mount AC-DC converter is an ideal mini AC-DC power module for embedded systems, ensuring reliable performance in computer equipment, AC mains systems, and industrial controls. As an IEC 60950-1 certified (GA005) and EN62368-1 certified power supply, this industrial safety power module provides a compact power module PCB solution. Whether for fire security systems or electronic instruments, this safety certified AC-DC converter delivers high efficiency in a compact AC-DC converter footprint.
The AC-DC power converter products of Yuan Dean are RoHS-compliant, and can be customized for products. The products are guaranteed for 3 years after sale.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
| Quantity: | |
|---|---|
| Part Number | Output Wattage | Output Voltage | Output Current | Ripple & Noise | Efficiency |
|---|---|---|---|---|---|
| (W) | Vdc | mA | (mV) max (Note2) | % (TYP) | |
| GX005-S03 | 4.0 | 3.3 | 1200 | 100 | 72 |
| GX005-S05 | 5.0 | 5 | 1000 | 100 | 75 |
| GX005-S06 | 5.1 | 6 | 850 | 100 | 75 |
| GX005-S07 | 5.1 | 7 | 725 | 100 | 75 |
| GX005-S08 | 5.0 | 8 | 625 | 100 | 75 |
| GX005-S09 | 5.4 | 9 | 600 | 100 | 78 |
| GX005-S10 | 6.0 | 10 | 600 | 100 | 78 |
| GX005-S12 | 6.0 | 12 | 500 | 100 | 80 |
| GX005-S13 | 6.0 | 13 | 460 | 150 | 80 |
| GX005-S14 | 6.0 | 14 | 425 | 150 | 80 |
| GX005-S15 | 6.0 | 15 | 400 | 150 | 80 |
| GX005-S16 | 6.0 | 16 | 375 | 150 | 80 |
| GX005-S18 | 6.0 | 18 | 333 | 200 | 81 |
| GX005-S24 | 6.0 | 24 | 250 | 240 | 82 |
| GX005-S27 | 6.0 | 27 | 220 | 240 | 82 |
| GX005-S36 | 6.0 | 36 | 167 | 240 | 82 |
| GX005-S48 | 6.0 | 48 | 125 | 240 | 82 |
Notes:
1. "X" Represent module version
A: Represent module version with enclosure;
B: Represent open frame version without enclosure;
C: Represent wired moduleversion with enclosure.
2. Ripple & noise is measured by using 20 MHz bandwidth, measured with a 47uf paralleled with a high-frequency 0.47uf capacitor arcoss each output by full load.
3. Only GA005 series recognized by UL & CB.
| Parameters | Conditions | Min | Typ | Max | Units | |
|---|---|---|---|---|---|---|
| Rated Input Voltage | Vo, Io nom | 100 ~ 240 | Vac | |||
| Voltage Range | Vo, Io nom | AC in | 90 | 264 | Vac | |
| DC in | 120 | 370 | Vdc | |||
| Line Frequency | Vi nom. Io nom | 47 | 50/60 | 63 | Hz | |
| Inrush Current | Io nom | Vi: 115VAC | 10 | A | ||
| Vi: 230VAC | 20 | A | ||||
| Input Current (Full load) | 110mA Max. (115Vac) 70mA Max. (230Vac) | |||||
| Input Fuse | VDE / UL / CCC FUSE 2.5A / 250V (Slow blow). | |||||
| Parameters | Conditions | Min | Typ | Max | Units | |
|---|---|---|---|---|---|---|
| Output Voltage Accuracy | Vi nom, Io nom | 3.3V, 5V Models | ± 3 | % | ||
| 12....48V Models | ± 2 | |||||
| Minimum Load | Vi nom | 0 | % | |||
| Line Regulation | Io nom, Vi min…Vi max | ± 1 | % | |||
| Load Regulation | Vi nom, Io min....Io nom | ± 2 | % | |||
| Transient Recovery Time | Vi nom, Io nom = I ← → 0.5 Io nom | 1000 | us | |||
| Protection | Overload | Above 110% rated output power | ||||
| Protection type: Recovers automatically after fault condition is removed | ||||||
| Short Circuit | Recovers automatically after fault condition is removed | |||||
| Over Voltage | 120%-150% rated output Voltage | |||||
| Protection type: Zener diode clamp | ||||||
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Switching Frequency | Vi nom, Io nom | 65 | KHz | ||
| Isolation Voltage | Input / output | 3.0KVac / 5mA / 5Secs | |||
| Isolation Resistance | Input / output,@500Vdc | 100 | MΩ | ||
| Ambient Temperature | Operating at Vi nom, Io nom | -20 | +70 | °C | |
| Derating | Vi nom, Io nom +51 to 71°C | 2 | % / °C | ||
| Storage Temperature | Nom operational | -40 | +85 | °C | |
| Relative Humidity | Vi nom,Io nom | 95 | % RH | ||

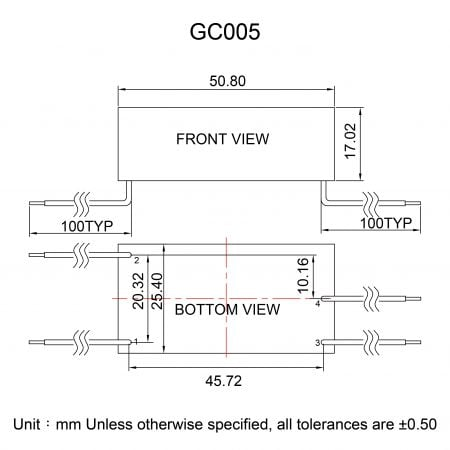

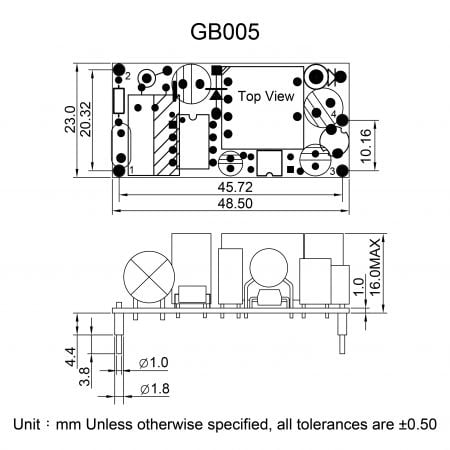

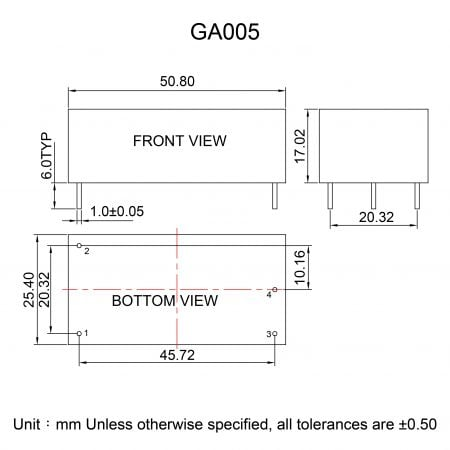

| Dimension | GA005 / GC005 L 50.80 x W 25.40 x H 17.02 GB005 L 48.5 x W 23.0 x H 16.0 | mm | |||
| Cooling | Free air convection | ||||
