26D Series
YDS

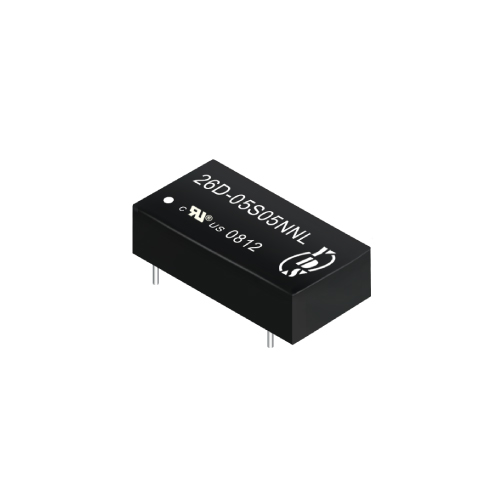

1W 3KV DIL Package Unregulated Output DC to DC Power Conversion
14PIN DIL package.
High efficiency up to 85%.
Internal SMD construction.
Unregulated output types.
No external component required.
Operating temperature:-40°C to +85°C.
Industry standard pinout.
| Part Number | Output Voltage | Output Current | Efficiency | Package Style |
|---|---|---|---|---|
| Vdc | mA | %TYP | ||
| 26D-XXS03NNL | 3.3 | 303 | 70 | 1 |
| 26D-XXS05NNL | 5 | 200 | 70 | 1 |
| 26D-XXS09NNL | 9 | 112 | 75 | 1 |
| 26D-XXS12NNL | 12 | 84 | 78 | 1 |
| 26D-XXS15NNL | 15 | 67 | 80 | 1 |
| 26D-XXS24NNL | 24 | 42 | 82 | 1 |
| 26D-XXD03NNL | ± 3.3 | ± 150 | 70 | 1 |
| 26D-XXD05NNL | ± 5 | ± 100 | 70 | 1 |
| 26D-XXD09NNL | ± 9 | ± 56 | 75 | 1 |
| 26D-XXD12NNL | ± 12 | ± 42 | 78 | 1 |
| 26D-XXD15NNL | ± 15 | ± 34 | 80 | 1 |
| 26D-XXD24NNL | ± 24 | ± 21 | 82 | 1 |
| 26D-XXS03N2NL | 3.3 | 303 | 70 | 2 |
| 26D-XXS05N2NL | 5 | 200 | 70 | 2 |
| 26D-XXS09N2NL | 9 | 112 | 75 | 2 |
| 26D-XXS12N2NL | 12 | 84 | 78 | 2 |
| 26D-XXS15N2NL | 15 | 67 | 80 | 2 |
| 26D-XXS24N2NL | 24 | 42 | 82 | 2 |
| 26D-XXD03N2NL | ± 3.3 | ± 150 | 70 | 2 |
| 26D-XXD05N2NL | ± 5 | ± 100 | 70 | 2 |
| 26D-XXD09N2NL | ± 9 | ± 56 | 75 | 2 |
| 26D-XXD12N2NL | ± 12 | ± 42 | 78 | 2 |
| 26D-XXD15N2NL | ± 15 | ± 34 | 80 | 2 |
| 26D-XXD24N2NL | ± 24 | ± 21 | 82 | 2 |
| Recognized By UL 60950-1 | ||||
| 26D-05S05NNL,26D-05S09NNL,26D-05S12NNL,26D-05S15NNL,26D-05S24NNL, 26D-24S05NNL,26D-24S24NNL | ||||
Note:
1.”XX” Is Input Voltage:03＝3.3Vdc,05=5Vdc,09=9Vdc,12=12Vdc,15=15Vdc,24=24Vdc.
2.The input voltage increases, there will be an increase in efficiency.
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | Vo,Io Nom | ± 10 | % | ||
| Filter | Capacitor |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | 100% full load | ± 5 | % | ||
| Short Circuit Protection | Short Term | 1 | Sec | ||
| Line Regulation | For 1.0% of Vin | 1.2 | % | ||
| Load Regulation | 3.3V,5V (10% To 100% F.L) | 15 | % | ||
| Load Regulation | 9V,12V,15V,24V (10% To 100% F.L) | 10 | % | ||
| Ripple & Noise | BW=DC To 20MHz | 100 | mVp-p | ||
| Transient response setting time | 50% load step change | 350 | us |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Switching Frequency | Full load, nominal input | 100 | KHz | ||
| Operating Temperature | -40 | +85 | ℃ | ||
| Humidity | Non Condensing | 95 | % | ||
| Cooling | Free air Convection | ||||
| Case material | DAP | ||||
| MTBF | MIL-HDBK-217F@25℃ | 3500000 | Hours | ||
| Weight | Package 1 or Package 2 | 2.3 or 3.0 | g | ||

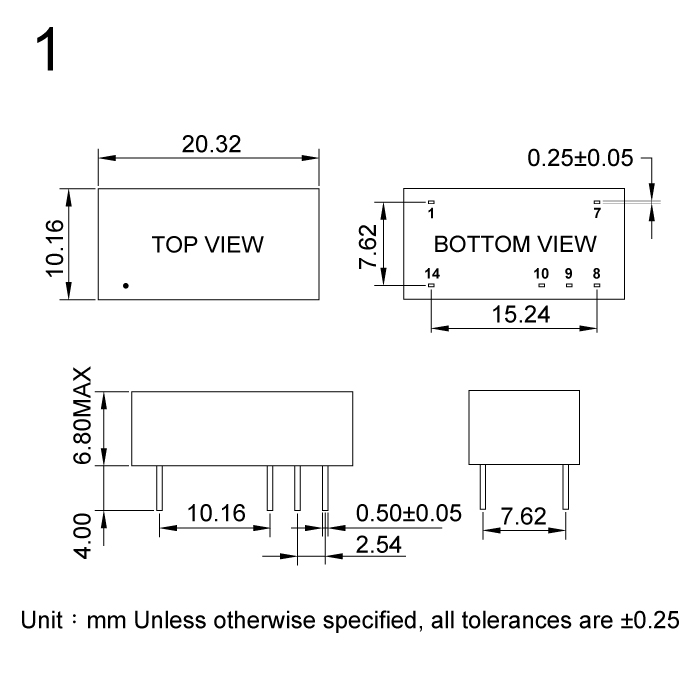

| Dimensions | Package 1 | 20.32 x 10.16 x 6.80 | mm | ||

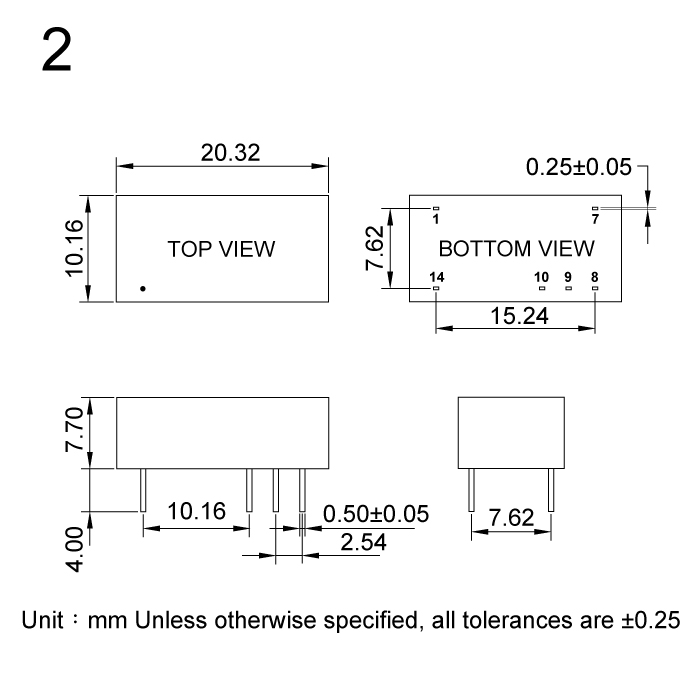

| Dimensions | Package 2 | 20.32 x 10.16 x 7.70 | mm | ||
Files Download
26D-Series.pdf
