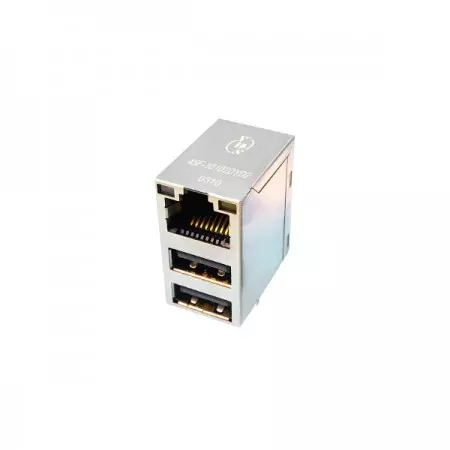

45F Series
Integrated 1G Base-T Magnetic Jack with Dual USB | 1.5KV Isolated RJ45 Connector For HUB、Computer and Telecom equipment
Dual USB integrated 10/100/1000 Base-T tab up single port RJ45 jack with magnetics. The RJ45 and USB interface stacking design saves the PCB surface. 45F series complies with the USB 2.0 standard and the CAT5 Fast Ethernet industry performance standards. Magnetics are 100% electrically tested for HI-POT and continuity. This product Meets or exceeds IEEE 802.3 and ANSI X3.263 standards including 350 μH minimum OCL with 8 mA bias. 45F series has passed the UL 60950-1 safety certification.
As a professional Gigabit RJ45 USB Combo Manufacturer, we offer Gigabit RJ45 Dual USB Combo Jack and Stacked RJ45 with Dual USB Ports solutions. Our Space-saving Gigabit RJ45 USB Combo, High Density RJ45 Dual USB Jack, and UL Recognized Gigabit RJ45 USB Jack feature Integrated Gigabit Magnetics RJ45 USB. This PCB Mount Gigabit RJ45 USB Stacked is a RoHS/REACH Compliant Gigabit RJ45 USB and Dual USB + RJ45 2-in-1 Connector, serving as a Gigabit Ethernet USB Combo Connector or Integrated MagJack with Dual USB for telecom, HUBs, wireless networks, VoIP, and cameras.
The RJ45 connector products of Yuan Dean are RoHS-compliant, and can be customized for products.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
Features
- LAN interface suitable for 10/100/1000Base-TX applications.
- RJ45/USB stacked design saves on PCB real estate.
- USB module complies with USB 2.0 standards and meets CAT5 Fast Ethernet industry performance standard.
- Magnetics are 100% electrically tested for HI-POT and continuity.
- Meets or exceeds IEEE 802.3 and ANSI X3.263 standards including 350 µH minimum OCL with 8 mA bias.
- Recognized by UL 60950-1.
Applications
- Telecom equipment.
- HUB.
- Wireless router station.
- VoIP device.
- Video camera.
Electrical Specifications@25°C; Operating Temperature 0°C to 70°C
| Part Number | Data Rate | Turns Ratio | LEDs | Insertion Loss (dB MAX) | Return Loss (dB MIN) 100Ω ± 15Ω | |||
|---|---|---|---|---|---|---|---|---|
| TX | RX | L/R | 1-100 MHz | 1-30 MHz | 30-60 MHz | 60-80 MHz | ||
| 45F-10102DYD2NL | 10 / 100 | 1CT: 1 | 1CT: 1CT | G-O/Y | -1.0 | -18 | -16 | -12 |
| 45F-10202GDD2NL | 10 / 100 / 1000 | 1CT: 1 | 1CT: 1 | G/G-O | -1.0 | -18 | -16 | -12 |
| Part Number | Crosstalk (dB TYP) | Common Mode Rejection (dB TYP) | Hipot (Vrms) | |||
|---|---|---|---|---|---|---|
| 1-10 MHz | 32-60 MHz | 60-100 MHz | 1-50 MHz | 50-100 MHz | @ 60Hz | |
| 45F-10102DYD2NL | -40 | -35 | -30 | -30 | -20 | 1500 |
| 45F-10202GDD2NL | -40 | -40 | -35 | -30 | -25 | 1500 |
Certification

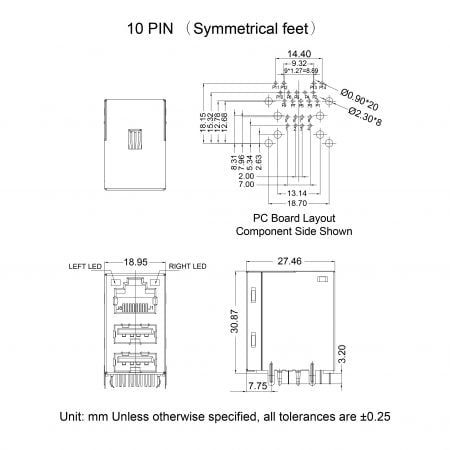

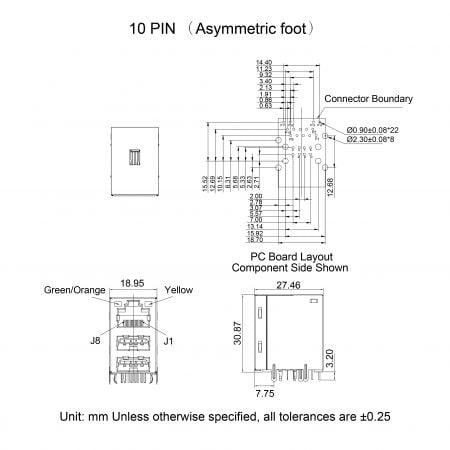

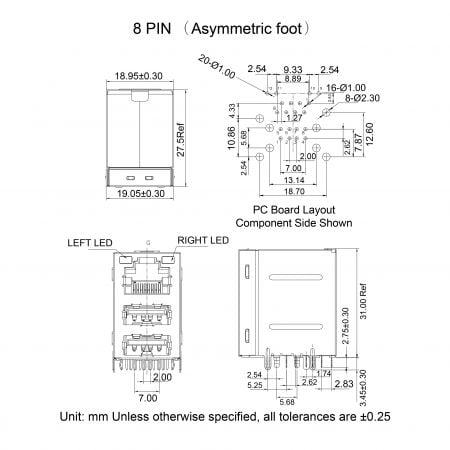

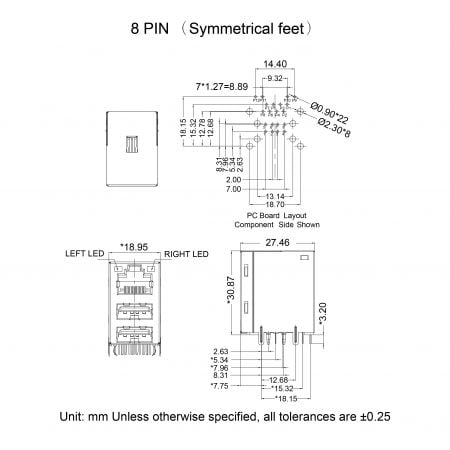

- Mechanicals and Dimensions Related Products Files Download
-
-
