43F/44F Series
Integrated RJ45 to USB Jack | 10/100 Base-T Magnetics | Single/Dual USB Port Option | 1.5KV Isolation For HUB、Computer and Telecom equipment

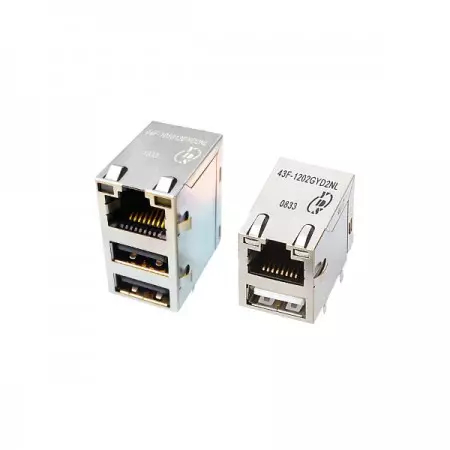

10/100 Base-T 2 port USB integrated Tab up RJ45 jack with magnetics. The RJ45 and USB interface stacking design saves the PCB surface. This product complies with the USB 2.0 standard and the CAT5 Fast Ethernet industry performance standards. Magnetics are 100% electrically tested for HI-POT and continuity. 43F series and 44F series Meet or exceed IEEE 802.3 and ANSI X3.263 standards including 350 μH minimum OCL with 8 mA bias.
As a professional ISO9001 Telecom Connector Manufacturer, we offer Stacked RJ45 USB Combo Jack and RJ45 with Integrated 10/100 Magnetics solutions. Our Space-saving RJ45 USB Jack, EMI Shielded RJ45 USB Jack, and High Performance Ethernet USB Jack feature Lead-Free RJ45 USB Integrated Jack technology. This PCB Mount RJ45 USB Combo is a RoHS/REACH Compliant RJ45 USB Jack and USB Integrated RJ45 Jack, ideal for telecom equipment, HUBs, wireless networks, VoIP, and cameras.
The RJ45 connector products of Yuan Dean are RoHS-compliant, and can be customized for products.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
Features
- LAN interface suitable for 10/100Base-TX applications.
- RJ45/USB stacked design saves on PCB real estate.
- USB module complies with USB 2.0 standards and meets CAT5 fast ethernet industry performance standard.
- Magnetics are 100% electrically tested for HI-POT and continuity.
- Meets or exceeds IEEE 802.3 and ANSI X3.263 standards including 350 µH minimum OCL with 8 mA bias.
Applications
- Telecom equipment.
- HUB.
- Wireless router station.
- VoIP device.
- Video camera.
Electrical Specifications@25°C; Operating Temperature 0°C to 70°C
| Part Number | Turns Ratio (± 5%) | Insertion Loss (dB MAX) | Return Loss (dB MIN @100Ω ± 15Ω) | ||
|---|---|---|---|---|---|
| 1-100 MHz | 1-30 MHz | 30-60 MHz | 60-80 MHz | ||
| 43F-1201DYD2NL | 1CT: 1CT | -1.0dB | -18dB | -18 + 20Log (F/30MHz) | -12dB |
| 44F-10107DYD2NL | 1CT: 1CT | -1.2dB | -16dB | -12 | -10dB |
| Part Number | Crosstalk (dB TYP) | CMR (dB MIN) | Hipot (Vrms) |
|---|---|---|---|
| 1-100 MHz | 1-100 MHz | @ 60Hz | |
| 43F-1201DYD2NL | -35dB | -30dB | 1500 |
| 44F-10107DYD2NL | -30dB | -30dB | 1500VAC or 2250VDC |
Certification

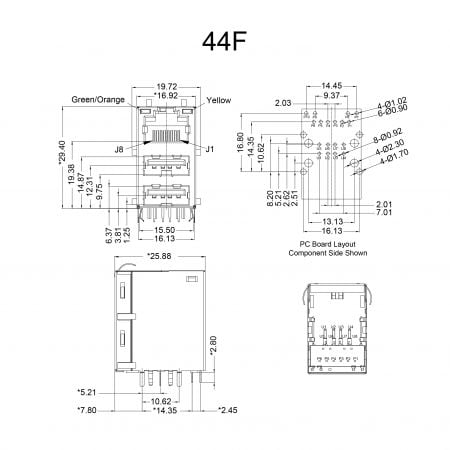

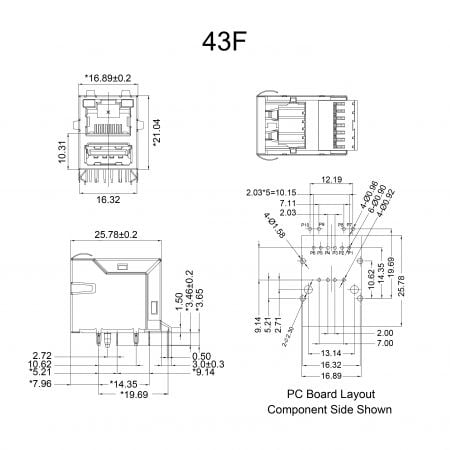

- Mechanicals and Dimensions Related Products Files Download
-
-
