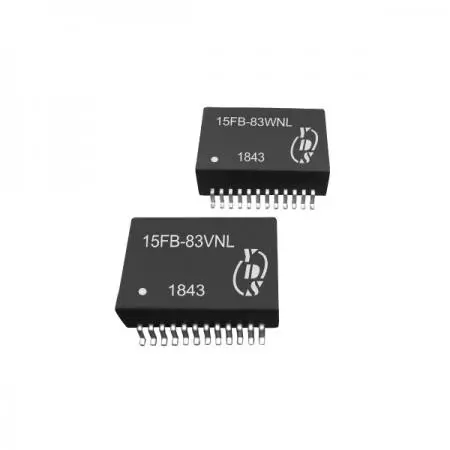

Ethernet Magnetics Module, 5G Base-T Support PoE&PoE+,1500Vrms Isolated,SMD24 Package
‹ › Ethernet Magnetics Module, 5G Base-T Support PoE&PoE+,1500Vrms Isolated,SMD24 Package
PoE 5G Series
Lan Filter, 5G Base-T Support PoE&PoE+ Function For Internet and telecom equipment
5G Base-T SMD package LAN filter can be used for PoE & PoE+ applications. 5G series is designed for long haul Gigabit Ethernet 5G Base-T, full duplex applications. This LAN filter Supports 4 pairs of category 5 UTP cable. It compliants with IEEE 802.3an, IEEE 802.3af standards (350mA) and IEEE 802.3at standards (720mA). This product has passed UL 60950-1 safety certification.
Our Industrial Grade 5G Ethernet Filter excels as a High Reliability 5G LAN Module, integrating a PoE+ 5G Magnetic Integrated Module with a Discrete 5G Base-T Base-T Magnetics for PoE+. As an IEEE 802.3af&at LAN Filter and UL 60950-1 Certified LAN Filter, this Surface Mount Ethernet Transformer PoE+ is the ideal Smart Home Hub 5G Filter. Fully RoHS Compliant LAN Filter and REACH Certified Ethernet Filter, this PoE+ 5G Ethernet Transformer provides Customizable 5G LAN Magnetics for computer equipment, AC main power, industrial control, fire systems, and electronic instruments.
The LAN filter products of Yuan Dean are RoHS compliant and can be customized.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
Features
- Designed for long haul Gigabit Ethernet 5G Base-T, full duplex applications.
- Supports 4 pairs of category 5 UTP cable.
- Cable interface for isolation and low common mode emissions.
- Compliant with IEEE 802.3an standard.
- Meet IEEE 802.3af standards with 350mA.
- Meet IEEE 802.3at standards with 720mA.
- Recognized by UL 60950-1.
Applications
- Internet equipment.
- telecom equipment.
- wireless router station.
- VoIP devices.
- Aviation.
- Musical Instruments.
Electrical Specifications@25°C; Operating Temperature 0°C to 70°C
| Part Number | Insertion Loss (dB MAX) | Returm Loss (dB MIN @100Ω) | CMR (dB MIN) | Crosstalk (dB MIN) | POE Current | Hipot (Vrms min) | |||
|---|---|---|---|---|---|---|---|---|---|
| 50-125 MHz | 125-250 MHz | 1-40 MHz | 40-250 MHz | 30-250 MHz | 1-125 MHz | 125-250 MHz | |||
| 15FB-83VNL | -1.0 | -1.5 | -20 | -20+15log(f/40MHz) | -30 | -30 | -20 | 350mA | 1500 |
| 15FB-83WNL | -1.0 | -1.5 | -20 | -20+15log(f/40MHz) | -30 | -30 | -20 | 720mA | 1500 |
Electrical Specifications@25°C; Operating Temperature -40°C to 85°C
| Part Number | Insertion Loss (dB MAX) | Returm Loss (dB MIN @100Ω) | CMR (dB MIN) | Crosstalk (dB MIN) | POE Current | Hipot (Vrms min) | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.1 MHz | 100-250 MHz | 1-40 MHz | 40-250 MHz | 1-30 MHz | 100 MHz | 250 MHz | 1-100 MHz | 100-250 MHz | |||
| 15FB-84ABNL | -1.0 | -2.0 | -16 | -16+10log(f/40MHz) | -43 | -35 | -30 | -40 | -30 | 600mA | 1500 |
Certification

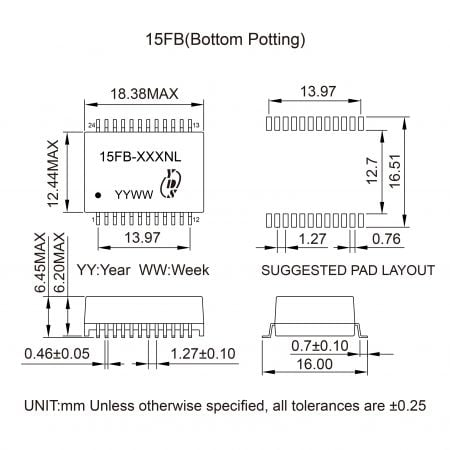

- Mechanicals and Dimensions Related Products Files Download
-
-
| Photo | Transfer Rate | TAB | LED | Port Count | PoE | Mounting Type | Shielding / Shield Tabs | Datasheet |
|---|---|---|---|---|---|---|---|---|
 Ethernet Magnetics Module, 10G Base-T Support PoE&PoE+&PoE++,1500Vrms Isolated,SMD24 Package | ||||||||
 Ethernet Magnetics Module, 10/100/1000 Base-TX Support PoE&PoE+,1500Vrms Isolated,SMD Package |
