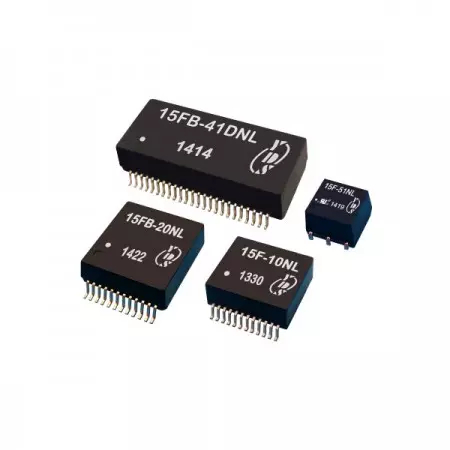

Ethernet Magnetics Module, 10/100/1000 Base-TX Support PoE&PoE+,1500Vrms Isolated,SMD Package
‹ › Ethernet Magnetics Module, 10/100/1000 Base-TX Support PoE&PoE+,1500Vrms Isolated,SMD Package
PoE 15FB Series
Lan Filter, 10/100/1000 Base-TX Support PoE & PoE+ Function For Internet and telecom equipment
10/100/1000 Base-T SMD LAN filter can be used for PoE and PoE+ applications. IEEE 802.3af & at/ANSI X3.263 compliant performance. PoE 15FB series is suitable for End-span and Mid-span PoE applications, and 350 and 600 mA current capability. It has a compact size and a small footprint. This LAN filter is designed to withstand IR reflow temperatures up to 240°C. This product has passed the UL 60950-1 safety certification.
Our Industrial Grade LAN Filter provides a 1000 Base-T LAN Magnetics PoE+ solution via a Surface Mount Ethernet Transformer PoE+. As a Low Profile Gigabit LAN Filter and Low Cost Gigabit LAN Transformer, this IEEE 802.3af&at LAN Filter integrates a Gigabit Ethernet Filter with PoE+ for computer equipment, AC main power, and industrial control. This UL 60950-1 Certified LAN Filter is a RoHS Compliant LAN Filter and REACH Certified Ethernet Filter, offering a Compact Gigabit Ethernet Filter for fire systems and electronic instruments.
The LAN filter products of Yuan Dean are RoHS compliant and can be customized.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
Features
- IEEE 802.3af&at/ANSI X3.263 compliant performance.
- Suitable for End-span and Mid-span PoE applications.
- 350&600mA current capability.
- Designed for IP phone or switch applications.
- Compact footprint.
- Desingned to withstand IR reflow temperatures up to 240°C.
- Recognized by UL 60950-1.
Applications
- Internet equipment.
- telecom equipment.
- wireless router station.
- VoIP devices.
- Aviation.
- Musical Instruments.
Electrical Specifications@25°C; Operating Temperature 0°C to 70°C
| Part Number | Ports | Insertion Loss (dB max) | Return Loss (dB MIN @100Ω) | Differential to Common Mode Rejection (dB MIN) | |||||
|---|---|---|---|---|---|---|---|---|---|
| 1-100 MHz | 1-30 MHz | 40 MHz | 50 MHz | 60-80 MHz | 30 MHz | 60 MHz | 100 MHz | ||
| 15FB-40NL | 4 | -1.2 | -16 | -14 | -13 | -12 | -43 | -37 | -33 |
| 15FB-83NL | 1 | -1.2 | -18 | -14 | -13 | -12 | - | - | - |
| 15FB-41NL | 2 | -1.2 | -16 | -14 | -13 | -12 | -43 | -37 | -30 |
| 15FB-73NL | 2 | -1.0 | -18 | -14.4 | -13.1 | -12 | -43 | -37 | -33 |
| 15FB-62NL | 1 | -1.2 | -14 | - | -12 | -10 | - | - | - |
| 15FB-30NL | 1 | -1.2 | -16 | -14 | -13 | -12 | -43 | -37 | -33 |
| 15FB-52NL | - | -1.0 | -16 | -13.5 | -11.6 | -10 | - | - | - |
| 15FB-10NL | 1 | -1.2 | -16 | -14 | -13 | -12 | -43 | -37 | -33 |
| 15FB-21NL | 2 | -1.0 | -18 | -18 | -16 | -12 | -43 | -37 | -30 |
| Part Number | Crosstalk (dB MIN) | Hipot (Vrms MIN) | POE Current | ||
|---|---|---|---|---|---|
| 30 MHz | 60 MHz | 100 MHz | @60Hz | ||
| 15FB-40NL | -45 | -40 | -30 | 1500 | 350mA |
| 15FB-83NL | -41 | -37 | -33 | 1500 | 750mA |
| 15FB-41NL | -35 | -30 | -25 | 1500 | 600mA |
| 15FB-73NL | -45 | -40 | -35 | 1800 | 350mA |
| 15FB-62NL | - | - | -30 | 1500 | 1.5A |
| 15FB-30NL | -45 | -40 | -35 | 1500 | 600mA |
| 15FB-52NL | - | - | -30 | 1500 | 720mA |
| 15FB-10NL | -43 | -37 | -31 | 1500 | 350mA |
| 15FB-21NL | -43 | -37 | -33 | 1500 | 600mA |
Certification

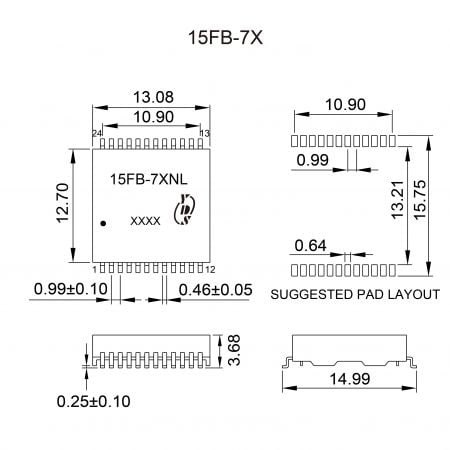

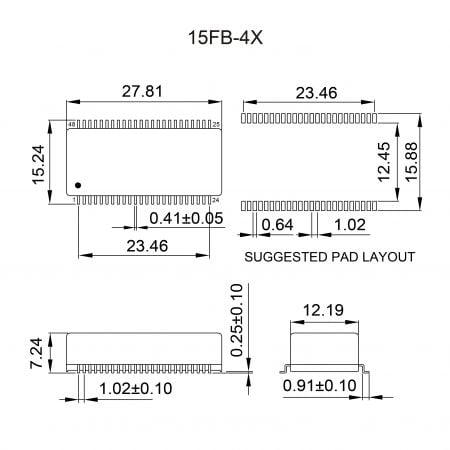

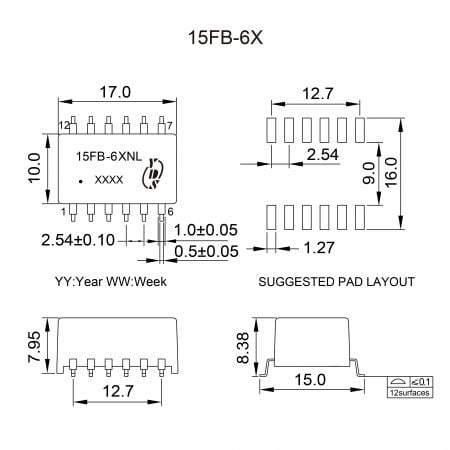

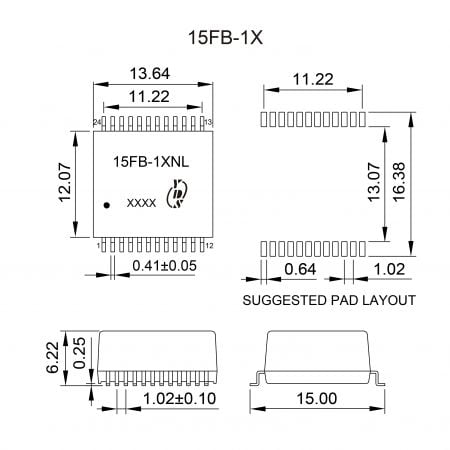

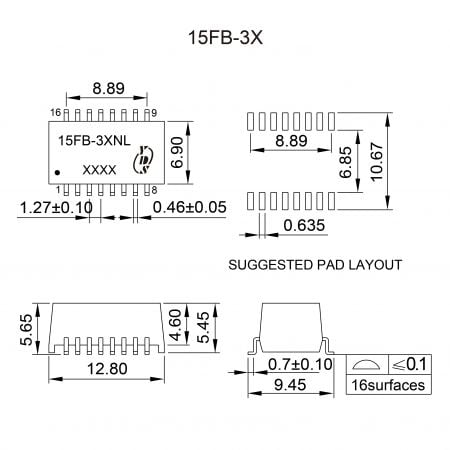

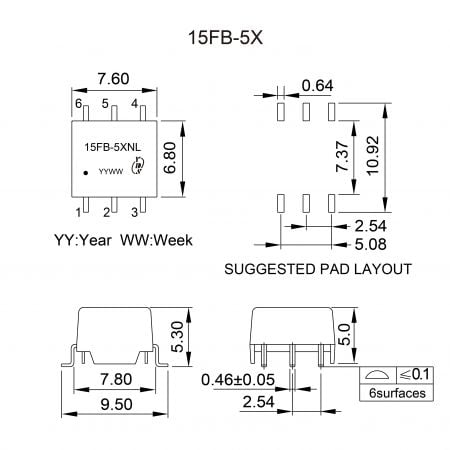

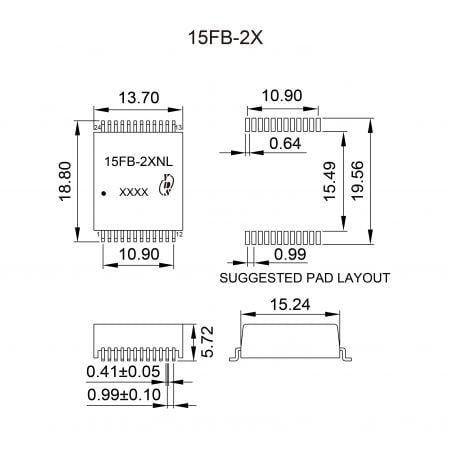

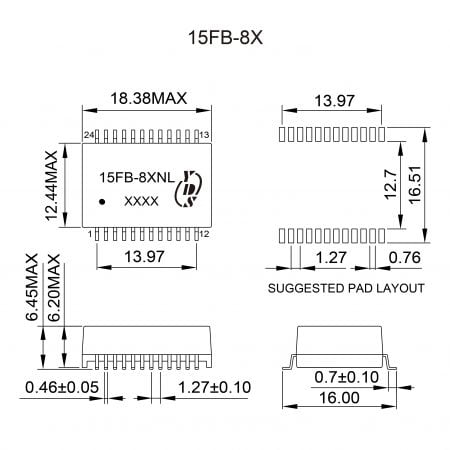

- Mechanicals and Dimensions Related Products Files Download
-
-
