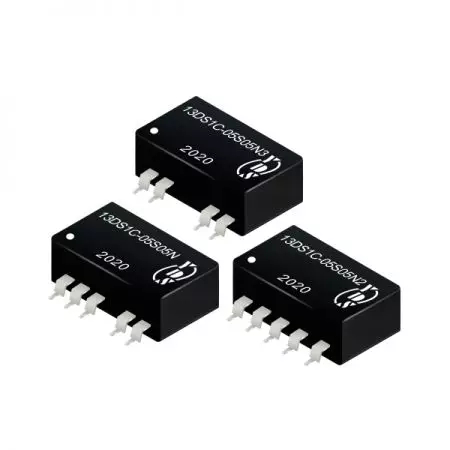

DC-DC Converter, High Efficient, 1.5KVDC & 3KVDC Isolation, 1W, SMD18、22 Package
‹ › DC-DC Converter, High Efficient, 1.5KVDC & 3KVDC Isolation, 1W, SMD18、22 Package
13DS1C Series
DC to DC Converter 1W Economic benefits SMD Type For Industry and Telecom/Datacom equipment
1W high efficient 18PIN & 22PIN SMD package DC-DC converter is typically used in cost sensitive, general purpose power isolation and voltage matching applications. Despite its low cost, it is a fully specified converter with 1.5KVDC & 3KVDC isolation. The operating temperature is from -40°C to + 105°C. The efficiency is as high as 87%.
High-performance SMD DC-DC converter and Isolated DC to DC Converter for industrial equipment, electronic instruments, wireless networks, and telecom/datacom. As a leading DC to DC converter manufacturer, we provide economical DC-DC converter and board mount DC-DC converter options. Our SMT Power Solution is fully RoHS & REACH Compliant Power for global reliability.
Our DC-DC power converter products are RoHS compliant and can be customized, with a 3-year warranty on sale.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
Features
- 18PIN & 22PIN SMD package.
- No-load input current as low as 5mA.
- Continuous short-circuit protection.
- High efficiency of up to 87%.
- Unregulated output types.
- 1.5KVDC & 3KVDC Isolation.
- Operating temperature from -40°C to + 105°C.
- Industry standard pinout.
- Design refer to IEC62368, UL62368, EN62368.
Applications
- Industry equipment.
- Instruments.
- Wireless Network.
- Telecom/Datacom.
- Measurement.
Specifications typical at TA = 25°C, nominal input voltage and rated output current unless otherwise specified
| Part Number | Output Voltage | Output Current | Efficiency | Capacitive Load(μF) | Package Style |
|---|---|---|---|---|---|
| Vdc | mA | %TYP | Max. | ||
| 13DS1C-YYS03N*P(H3) | 3.3 | 303 | 76 | 2400 | 1/2/3 |
| 13DS1C-YYS05N*P(H3) | 5 | 200 | 82 | 2400 | 1/2/3 |
| 13DS1C-YYS09N*P(H3) | 9 | 112 | 83 | 1000 | 1/2/3 |
| 13DS1C-YYS12N*P(H3) | 12 | 84 | 84 | 470 | 1/2/3 |
| 13DS1C-YYS15N*P(H3) | 15 | 67 | 84 | 330 | 1/2/3 |
| 13DS1C-YYS24N*P(H3) | 24 | 42 | 85 | 100 | 1/2/3 |
| 13DS1C-YYD03N*P(H3) | ±3.3 | ±151 | 76 | ±1200 | 1/2/3 |
| 13DS1C-YYD05N*P(H3) | ±5 | ±100 | 82 | ±1200 | 1/2/3 |
| 13DS1C-YYD09N*P(H3) | ±9 | ±56 | 83 | ±470 | 1/2/3 |
| 13DS1C-YYD12N*P(H3) | ±12 | ±42 | 84 | ±220 | 1/2/3 |
| 13DS1C-YYD15N*P(H3) | ±15 | ±34 | 84 | ±100 | 1/2/3 |
| 13DS1C-YYD24N*P(H3) | ±24 | ±21 | 85 | ±47 | 1/2/3 |
| 13DS1C-XXS03N*P(H3) | 3.3 | 303 | 78 | 2400 | 1/2/3 |
| 13DS1C-XXS05N*P(H3) | 5 | 200 | 82 | 2400 | 1/2/3 |
| 13DS1C-XXS09N*P(H3) | 9 | 112 | 85 | 1000 | 1/2/3 |
| 13DS1C-XXS12N*P(H3) | 12 | 84 | 85 | 680 | 1/2/3 |
| 13DS1C-XXS15N*P(H3) | 15 | 67 | 87 | 330 | 1/2/3 |
| 13DS1C-XXS24N*P(H3) | 24 | 42 | 85 | 220 | 1/2/3 |
| 13DS1C-XXD03N*P(H3) | ±3.3 | ±151 | 78 | ±1200 | 1/2/3 |
| 13DS1C-XXD05N*P(H3) | ±5 | ±100 | 82 | ±1200 | 1/2/3 |
| 13DS1C-XXD09N*P(H3) | ±9 | ±56 | 85 | ±680 | 1/2/3 |
| 13DS1C-XXD12N*P(H3) | ±12 | ±42 | 85 | ±330 | 1/2/3 |
| 13DS1C-XXD15N*P(H3) | ±15 | ±34 | 87 | ±220 | 1/2/3 |
| 13DS1C-XXD24N*P(H3) | ±24 | ±21 | 85 | ±100 | 1/2/3 |
Note：
1. No suffix is standard isolation (1.5KVDC) e.g, 13DS1C-12S05NP,
*add suffix “H3” for 3KVDC isolation, e.g, 13DS1C-12S05NPH3, 13DS1C-15S12NPH3
2. “ * “= 1 or 2 or 3 for package，No suffix * package1，When * =2，package2, and so on,
e.g,13DS1C-24S05N2P, 13DS1C-15S12N3PH3.
3. ”YY” is input Voltage : 03=3.3Vdc,05=5Vdc, 09=9Vdc e.g,13DS1C-05S12N3PH3,13DS1C-09S09NP.
4. ”XX” is input Voltage : 12=12Vdc,15=15Vdc, 24=24Vdc e.g, 13DS1C-12S05N3P,13DS1C-15S12NPH3.
Input Specifications
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Range | Vo,Io Nom @Vin:3.3V,5V,9V | ± 10 | % | ||
| Vo,Io Nom @Vin:12V,15V,24V | ± 20 | % | |||
| Filter | Capacitor | ||||
| Surge Range (1 sec. max.) | 3.3VDC input | -0.7 | 5 | VDC | |
| 5VDC input | -0.7 | 9 | VDC | ||
| 9VDC input | -0.7 | 15 | VDC | ||
| 12VDC input | -0.7 | 18 | VDC | ||
| 15VDC input | -0.7 | 21 | VDC | ||
| 24VDC input | -0.7 | 30 | VDC | ||
| Reflected Ripple Current | 15 | mA |
Output Specifications
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | 100% full load | ± 5 | % | ||
| Short Circuit Protection | Continuous, self-recovery | ||||
| Line Regulation | For 1.0% of Vin | 1.2 | % | ||
| Load Regulation | 3.3V(10% To 100% F.L) | 15 | 20 | % | |
| 5V(10% To 100% F.L) | 10 | 15 | % | ||
| 9V(10% To 100% F.L) | 8 | 10 | % | ||
| 12V(10% To 100% F.L) | 7 | 10 | % | ||
| 15V(10% To 100% F.L) | 6 | 10 | % | ||
| 24V(10% To 100% F.L) | 5 | 10 | % | ||
| Ripple & Noise | BW=DC To 20MHz @Vo:3.3V,5V,9V,12V,15V | 30 | 75 | mVp-p | |
| BW=DC To 20MHz @Vo:24V | 50 | 100 | mVp-p | ||
General Specifications
| Parameters | Cond itions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Isolation Capacitance | Input-output,100KHz/0.1V | 20 | pF | ||
| Switching Frequency | Full load, nominal input @3.3V, 5V Vin | 215/370 | KHz | ||
| Full load, nominal input @other Vin | 250 | KHz | |||
| Operation Temperature | -40 | +105 | °C | ||
| Storage Temperature | -55 | +125 | °C | ||
| Humidity | Non Condensing | 95 | % | ||
| Cooling | Free air Convection | ||||
| Case material | DAP | ||||
| MTBF | MIL-HDBK-217F@25℃, Ground Benign. | 3500000 | Hours | ||
| Weight | Package 1/2/3 | 1.36 | g | ||
| Dimensions | Package 1/2/3 | 15.24X8.0X7.3 | mm | ||
Certification

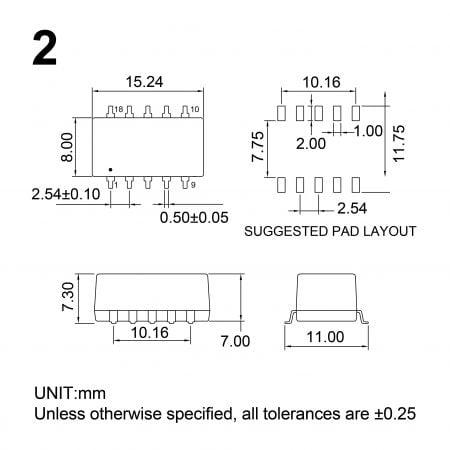

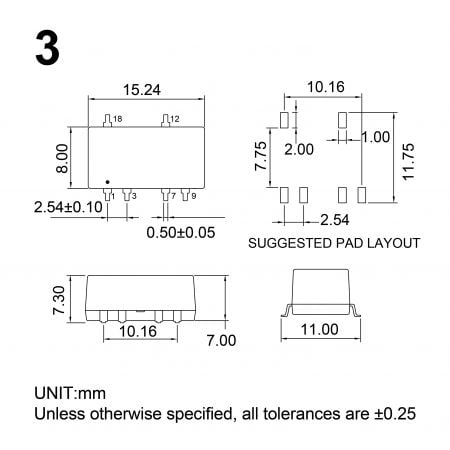

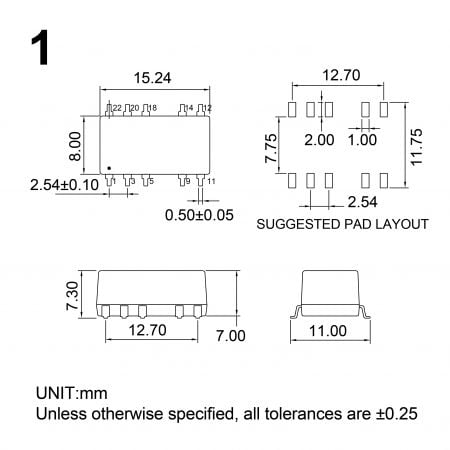

- Markings and Dimensions Related Products Files Download
-
-
