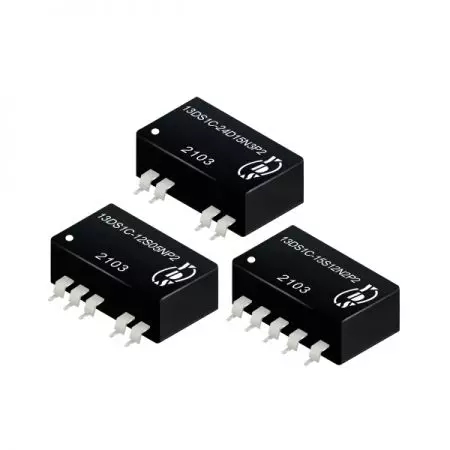

DC-DC Converter, High Efficient, 1.5KVDC & 3KVDC Isolation, 2W, SMD18、22 Package
‹ › DC-DC Converter, High Efficient, 1.5KVDC & 3KVDC Isolation, 2W, SMD18、22 Package
13DS1C-2W Series
DC to DC Converter 2W Economic benefits SMD Type For Industry and Telecom/Datacom equipment
2W high efficient 18PIN & 22PIN SMD package DC-DC converter is typically used in cost sensitive, general purpose power isolation and voltage matching applications. Despite its low cost, it is a fully specified converter with 1.5KVDC & 3KVDC isolation. The operating temperature is from -40°C to + 105°C. The efficiency of the 13DS1C-2W series can reach up to 89%.
High-efficiency SMD DC to DC converter and Isolated DC-DC Converter for industrial equipment, electronic instruments, wireless networks, and telecom/datacom. We provide economical DC to DC converters and board mount DC to DC converters that are RoHS & REACH Compliant Power solutions. Our SMT Power Solution makes us a leading DC-DC converter manufacturer.
Our DC-DC power converter products are RoHS compliant and can be customized, with a 3-year warranty on sale.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
Features
- 18PIN & 22PIN SMD package.
- No-load input current as low as 5mA.
- Continuous short-circuit protection.
- High efficiency of up to 89%.
- Unregulated output types.
- 1.5KVDC & 3KVDC Isolation.
- Operating temperature from -40°C to + 105°C.
- Industry standard pinout.
- Design refer to IEC62368, UL62368, EN62368.
Applications
- Industry equipment.
- Instruments.
- Wireless Network.
- Telecom/Datacom.
- Measurement.
Specifications typical at TA = 25°C, nominal input voltage and rated output current unless otherwise specified
| Part Number | Output Voltage | Output Current | Efficiency | Capacitive Load(μF) | Package Style |
|---|---|---|---|---|---|
| Vdc | mA | %TYP | Max. | ||
| 13DS1C-05S03NYP2(H3) | 3.3 | 600 | 78 | 2400 | 1/2/3 |
| 13DS1C-05S05NYP2(H3) | 5 | 400 | 84 | 2400 | 1/2/3 |
| 13DS1C-05S09NYP2(H3) | 9 | 223 | 85 | 820 | 1/2/3 |
| 13DS1C-05S12NYP2(H3) | 12 | 167 | 85 | 470 | 1/2/3 |
| 13DS1C-05S15NYP2(H3) | 15 | 133 | 86 | 220 | 1/2/3 |
| 13DS1C-05S24NYP2(H3) | 24 | 84 | 87 | 100 | 1/2/3 |
| 13DS1C-05D03NYP2(H3) | ± 3.3 | ± 300 | 80 | ± 1200 | 1/2/3 |
| 13DS1C-05D05NYP2(H3) | ± 5 | ± 200 | 82 | ± 1200 | 1/2/3 |
| 13DS1C-05D09NYP2(H3) | ± 9 | ± 112 | 85 | ± 330 | 1/2/3 |
| 13DS1C-05D12NYP2(H3) | ± 12 | ± 84 | 85 | ± 330 | 1/2/3 |
| 13DS1C-05D15NYP2(H3) | ± 15 | ± 67 | 87 | ± 100 | 1/2/3 |
| 13DS1C-05D24NYP2(H3) | ± 24 | ± 42 | 88 | ± 47 | 1/2/3 |
| 13DS1C-XXS03NYP2(H3) | 3.3 | 600 | 80 | 2400 | 1/2/3 |
| 13DS1C-XXS05NYP2(H3) | 5 | 400 | 85 | 2400 | 1/2/3 |
| 13DS1C-XXS09NYP2(H3) | 9 | 223 | 87 | 820 | 1/2/3 |
| 13DS1C-XXS12NYP2(H3) | 12 | 167 | 87 | 470 | 1/2/3 |
| 13DS1C-XXS15NYP2(H3) | 15 | 133 | 88 | 220 | 1/2/3 |
| 13DS1C-XXS24NYP2(H3) | 24 | 84 | 89 | 100 | 1/2/3 |
| 13DS1C-XXD03NYP2(H3) | ± 3.3 | ± 300 | 80 | ± 1200 | 1/2/3 |
| 13DS1C-XXD05NYP2(H3) | ± 5 | ± 200 | 82 | ± 1200 | 1/2/3 |
| 13DS1C-XXD09NYP2(H3) | ± 9 | ± 112 | 85 | ± 330 | 1/2/3 |
| 13DS1C-XXD12NYP2(H3) | ± 12 | ± 84 | 87 | ± 330 | 1/2/3 |
| 13DS1C-XXD15NYP2(H3) | ± 15 | ± 67 | 88 | ± 100 | 1/2/3 |
| 13DS1C-XXD24NYP2(H3) | ± 24 | ± 42 | 89 | ± 47 | 1/2/3 |
Note：
1. No suffix is standard isolation (1.5KVDC) e.g, 13DS1C-12S05NP2,
*add suffix “H3” for 3KVDC isolation, e.g, 13DS1C-12S05NP2H3, 13DS1C-15S12NP2H3.
2. Y = 1 or 2 or 3 for package, no suffix X package1, when Y=2，package2，and so on,
e.g,13DS1C-24S05N2P2,13DS1C-15S12N3P2H3.
3. ”XX” is input voltage : 12=12Vdc,15=15Vdc, 24=24Vdc. e.g, 13DS1C-12S05N2P2, 13DS1C-15S12N2P2H3.
Input Specifications
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Range | Vo,Io Nom | ± 10 | % | ||
| Filter | Capacitor |
Output Specifications
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | 100% full load | ± 5 | % | ||
| Short Circuit Protection | Continuous,self-recovery | ||||
| Line Regulation | For 1.0% of Vin | 1.2 | % | ||
| Load Regulation | 3.3V(10% To 100% F.L) | 15 | 20 | % | |
| 5V(10% To 100% F.L) | 8 | 15 | % | ||
| 9V(10% To 100% F.L) | 6 | 10 | % | ||
| 12V(10% To 100% F.L) | 5 | 10 | % | ||
| 15V(10% To 100% F.L) | 4 | 10 | % | ||
| 24V(10% To 100% F.L) | 3 | 10 | % | ||
| Ripple & Noise | BW=DC To 20MHz | 75 | 150 | mVp-p | |
General Specifications
| Parameters | Cond itions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Isolation Capacitance | Input-output,100KHz/0.1V | 20 | pF | ||
| Switching Frequency | Full load, nominal input@5V Vin | 215 | KHz | ||
| Full load, nominal input@other Vin | 250 | KHz | |||
| Operation Temperature | -40 | +105 | °C | ||
| Storage Temperature | -55 | +125 | °C | ||
| Humidity | Non Condensing | 95 | % | ||
| Cooling | Free air Convection | ||||
| Case material | DAP | ||||
| MTBF | MIL-HDBK-217F@25℃, Ground Benign. | 3500000 | Hours | ||
| Weight | Package 1/2/3 | 1.36 | g | ||
| Dimensions | Package 1/2/3 | 15.24X8.0X7.3 | mm | ||
Certification

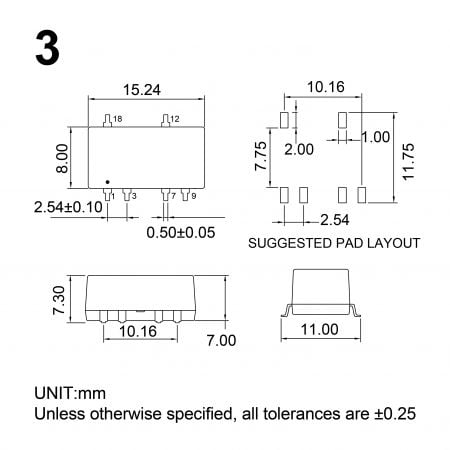

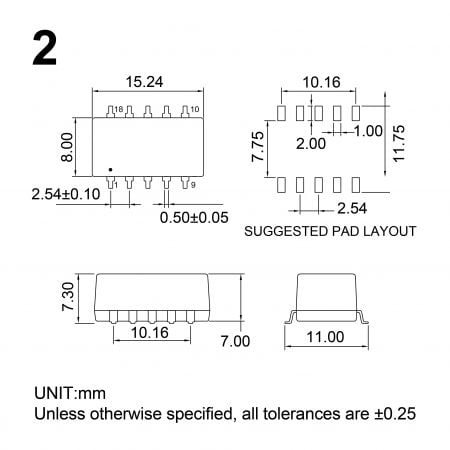

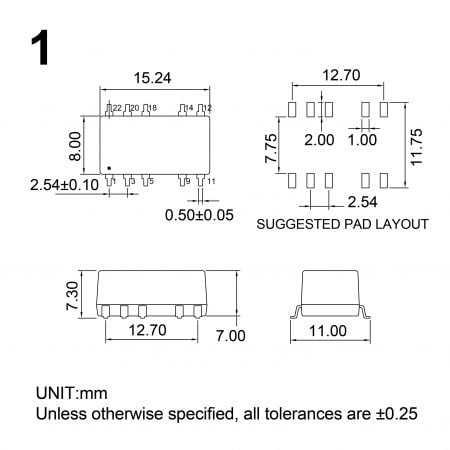

- Markings and Dimensions Related Products Files Download
-
-
