Current Sense Transformer, Small Size,Current Up To 20A,500Vrms Isolated,SMD8 Package
‹ › Current Sense Transformer, Small Size,Current Up to 20A,500Vrms Isolated,SMD8 Package
EE5 Series

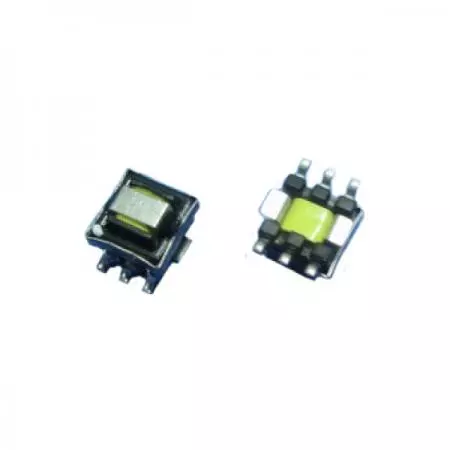

Compact SMT Current Sense Transformer, High Power Density, Space-saving
SMT package current sense transformer with a maximum size of 8.4mmX7.2mm, and a maximum of 5.5mm Height. The frequency range of EE5 series is 50kHz to 1MHz. The operating temperature range is -40°C to +125°C, and the storage temperature range is -40°C to +125°C.
As a professional manufacturer following the latest market trends, we deliver high-performance current sense transformer and current sensing transformer solutions for AC main power and network equipment. Our smd current sense transformer and pcb current transformer designs function as a reliable current monitor transformer or transformer for current feedback in electronic instruments. Whether you need an isolated current sensing transformer for current feedback transformer smps or a current transformer for industrial control, our compact current sensing transformer and current transformer for inverter provide essential current sense for overload protection.
Yuan Dean can provide a variety of transformers, such as 6PIN DIL/DIP/SMD/14PIN DIP/SOIC and other packaging methods. All products are RoHS compliant, and can accept product customization.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!

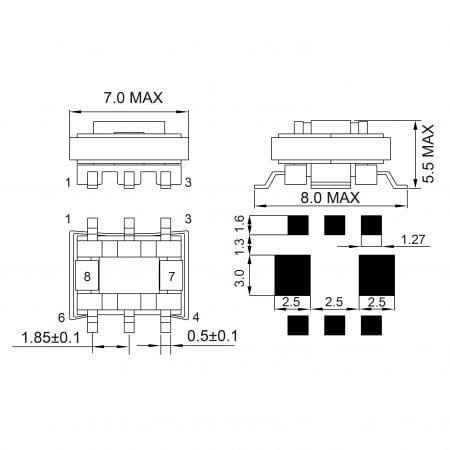

Description
- Height：5.5mm MAX.
- Footprint：8.4mmX7.2mm MAX.
- Frequency range：50kHz to 1MHz.
- Operating temperature range: -40°C to +125°C.
- Storage temperature range: -40°C to +125°C.
- RoHS Compliant version is available.
Applications
- Internet equipment.
- AC main power supply system.
- Instruments.
- Industrial control.
- Telecom equipment.
Electrical Specifications@25°C
| Part Number | Turn Ratio Pri:Sec | Lsec ① (mH MIN) | Current Rating(A) ② | Hi-pot (Vrms) | DCR (mΩMAX) | Schematic | |
|---|---|---|---|---|---|---|---|
| Pri (mΩMAX) | Sec (mΩMAX) | ||||||
| 05SEE-8001ANL | 1:20 | 0.08 | 20 | 500 | 0.75 | 0.55 | A |
| 05SEE-1811ANL | 1:30 | 0.18 | 20 | 500 | 0.75 | 0.87 | A |
| 05SEE-3211ANL | 1:40 | 0.32 | 20 | 500 | 0.75 | 1.03 | A |
| 05SEE-5012ANL | 1:50 | 0.50 | 20 | 500 | 0.75 | 1.50 | A |
| 05SEE-5011CNL | 6.0 | 1.50 | B | ||||
| 05SEE-7211ANL | 1:60 | 0.72 | 20 | 500 | 0.75 | 1.98 | A |
| 05SEE-9811ANL | 1:70 | 0.98 | 20 | 500 | 0.75 | 4.75 | A |
| 05SEE-9811DNL | 6.0 | 4.75 | C | ||||
| 05SEE-2023ANL | 1:100 | 2.0 | 20 | 500 | 0.75 | 5.5 | A |
| 05SEE-2021DNL | 0.75 | 5.5 | B | ||||
| 05SEE-3021ANL | 1:125 | 3.0 | 20 | 500 | 0.75 | 6.5 | A |
| 05SEE-3021DNL | 6.0 | 6.5 | B | ||||
| 05SEE-1231TNL | 1:200 | 8.0 | 20 | 500 | 4.0 | 33.24 | B |
①Inductance measured between secondary pins at 10kHz, 0.1Vrms.
②Primary current of 20A causes approximately 40℃ temperature rise above 25℃ ambient .
