DC-DC Converter, Non-Isolated, 1.77–45W
‹ › DC-DC Converter, Non-isolated, 1.77–45W

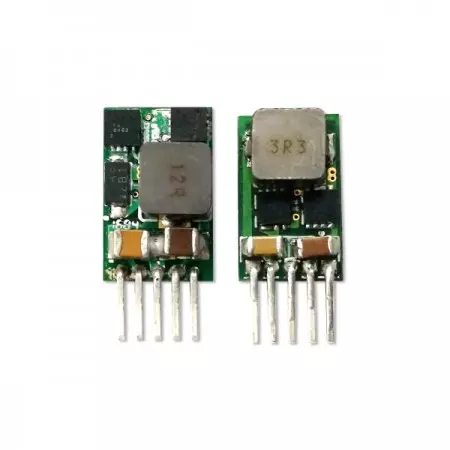

01D-3A Series
High-Efficiency DC to DC Power Module for Energy Systems and Smart Factories
Thenon-isolated DC-DC converter 01D-3A series provides 1.77–45W output power with efficiency up to 95%. It features adjustable output voltage, short-circuit protection, and an open-frame package for flexible integration. Designed to perform in ambient temperatures from -40°C to +65°C, it is well-suited for industrial automation, communication devices, and energy-related systems.
Our High efficiency non-isolated DC-DC series provides reliable power for precision devices. As a versatile POL converter, it features a Wide input non-isolated DC-DC range and an Adjustable output non-isolated DC-DC design to meet diverse voltage requirements. This High efficiency POL converter and Non-isolated DC-DC converter solution ensures optimal performance and stability for sensitive precision devices.
All Yuan Dean DC-DC converters are RoHS-compliant, customizable, and supported with a 3-year warranty. OEM/ODM projects are welcome.
Features
- Open frame packages.
- Efficiency up to 95%,non-isolated, no need for heatsink.
- Customized solutions available.
- Remote control: on/off.
- Operating temperature from -40°C to +65°C.
- 3 years warranty.
- Adjustable output voltages.
- Short circuit protection.
- Wide input voltage ranges 4.5~14Vdc and 10~30Vdc.
Applications
- General Industrial.
- Instruments.
- Sensing Equipment.
- E-Bike.
- Customized.
Specifications typical at TA = 25°C, nominal input voltage and rated output current unless otherwise specified
| Part Number | Input Range | Output Voltage | Output Current | Efficiency | |
|---|---|---|---|---|---|
| Vdc | Vdc | mA | (%) | Output Voltage(Vdc) | |
| 01D-1206-3A | 4.5-14 | 0.59-6.0 | 3000 | 92 | 3.3 |
| 01D-2406-3A | 10-30 | 3.0-6.0 | 3000 | 91 | 5.0 |
| 01D-2415-3A | 10-30 | 5.0-15 | 3000 | 95 | 12 |
Input Specifications
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Input Voltage Range | See table | 4.5 | 12 | 30 | V |
| Internal Input Filter | Capacitors | 10 | uF | ||
| No Load Input Current | 30 | mA |
Output Specifications
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | ± 3 | % | |||
| Short Circuit Protection | Hiccup, automatic recovery | ||||
| Line Regulation | Vin = min to max at full load | ± 0.2 | % | ||
| Load Regulation | 0% To 100% F.L(Vo≥ 2.5V) | ± 0.8 | % | ||
| Current Limit | 220 | % | |||
| Ripple & Noise | 100% F.L BW = 20MHz | 150 | mVp-p | ||
| Dynamic load response (Recovery time) | 25% load step change | 120 | us | ||
| Capacitive load | ESR > 1mohm | 500 | uF |
General Specifications
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Switching Frequency | 300 | KHz | |||
| Operating Temperature | With derating | -40 | +65 | °C | |
| Storage Temperature | -55 | +125 | °C | ||
| Humidity | Non Condensing | 5 | 95 | % | |
| Cooling | Natural Convection (20LFM) | ||||
| Case material | Open Frame | ||||
| Weight | 2 | g | |||
| Dimensions | 01D-1206-3A | 15.5x9.4x6.0 | mm | ||
| 01D-2406-3A 01D-2415-3A | 16.5x10.4x6.0 | mm | |||
| MTBF (+25°C) | using MIL-HDBK 217F | 4.4 x 106 | hours | ||
Certification

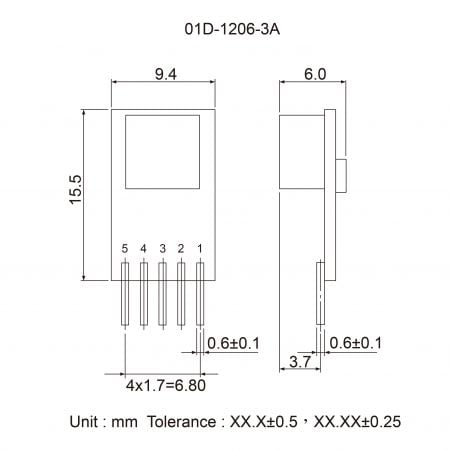

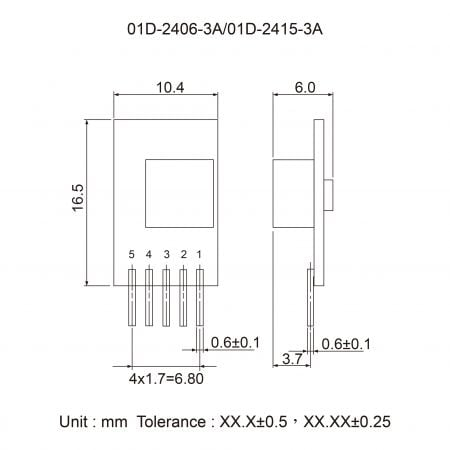

- Markings and Dimensions Related Products Files Download
-
-
