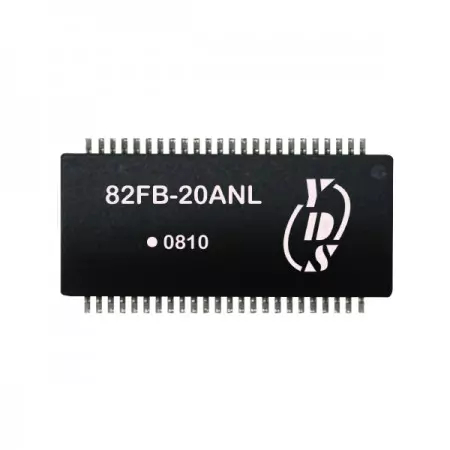

Ethernet Magnetics Module, Dual Ports 10G Base-T, SMD48 Package
‹ › Ethernet Magnetics Module, Dual Ports 10G Base-T, SMD48 Package
82FB-2X Series
LAN Filter, Dual Port 10G Base-T Ethernet Magnetics Module with Integrated TX/RX Isolation Transformers and Common-Mode Chokes For telecom and Internet equipment
2 port 10G Base-T SMD package LAN filter. 82FB-2X series is designed for Ethernet 10G Base-T applications. The cable interface for isolation and low common mode emissions. It compliants with IEEE 802.3an standard for 10G Base-T. This product has passed UL 60950-1 safety certification.
As a professional manufacturer constantly exploring new technological frontiers, we offer the 10GbE Magnetic Module and Compact 10G Ethernet filter for advanced aerospace and musical instruments. Our PCB Mount LAN Filter SMD integrates a high-performance Ethernet Coupling Transformer, ensuring superior stability for VoIP and network devices. This Industrial Grade Filter is a RoHS Certified LAN Filter in a SOIC Filter Package, making it the ultimate LAN Filter for IoT Devices. We also provide professional 10G LAN filter OEM/ODM and Custom LAN Filter Solutions with an Integrated Magnetics Module to meet the most demanding telecommunications and wireless network standards.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
Features
- Designed for Ethernet 10G Base-T applications.
- Cable interface for isolation and low common mode emissions.
- Compliant with IEEE 802.3an standard for 10G Base-T.
- Recognized by UL 60950-1.
Applications
- Internet equipment.
- telecom equipment.
- wireless router station.
- VoIP devices.
- Aviation.
- Musical Instruments.
Electrical Specifications@25°C; Operating Temperature 0°C to 70°C
| Part Number | Turns Ratio (± 5%) | OCL (uH MIN) | Crosstalk (dB TYP) | Common Mode Rejection (dB TYP) | Comm. TO Diff. Rejection (dB TYP) | Hipot (Vrms) | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| ----------- | 100KHz/0.1V | 1-100 MHz | 100-500 MHz | 1-100 MHz | 100-300 MHz | 300-500 MHz | 1-100 MHz | 100-300 MHz | 300-500 MHz | @60Hz | |
| 82FB-20ANL | 1CT:1CT | 120 | -40 | -30 | -37 | -30 | -25 | -40 | -30 | -25 | 1500 |
Electrical Specifications@25°C; Operating Temperature 0°C to 70°C (Continue)
| Part Number | Insertion Loss (dB MAX) | Return Loss(PHY-Side) (dB MIN)@100Ω±15Ω | Return Loss(LINE-Side) (dB MIN)@100Ω±15Ω | |||||
|---|---|---|---|---|---|---|---|---|
| 0.1 MHz | 1-400 MHz | 1 MHz | 2-100 MHz | 100-500 MHz | 1-40 MHz | 40-400 MHz | 400-500 MHz | |
| 82FB-20ANL | -3 | -1 | -23 | -25 | -12+21.6log(f/400) | -23 | -23+10log(f/40) | -13+30log(f/400) |
Certification

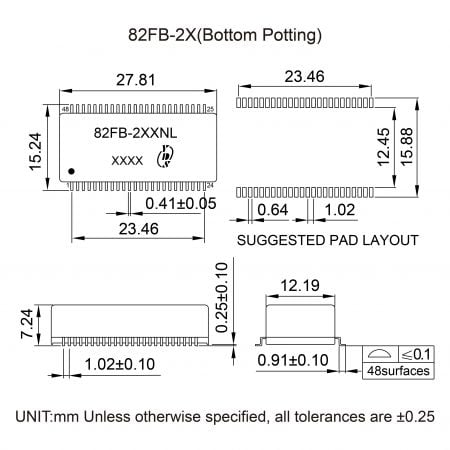

- Mechanicals and Dimensions Related Products Files Download
-
-
