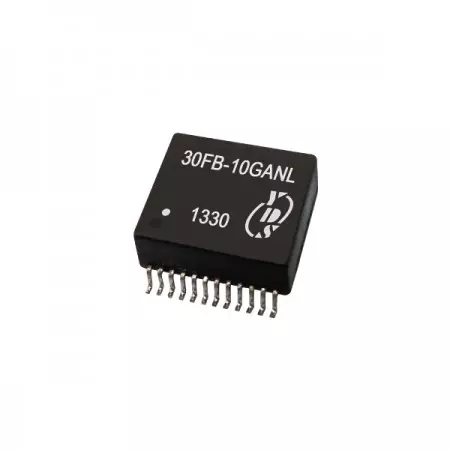

10GBase-T SMD24 LAN Filter Magnetics, 1500Vrms Isolation
‹ › 10GBase-T SMD24 LAN Filter Magnetics, 1500Vrms Isolation
30FB-10G Series
10GBase-T SMD24 Ethernet Magnetics Module For Internet and telecom equipment equipment
24 pin 10G Base-T SMD package LAN filter is designed for long haul Gigabit Ethernet 10G Base-T, full duplex applications. 30FB-10G series supports 4 pairs of category 5 UTP cable. It compliants with IEEE 802.3an standard. This product has passed UL 60950-1 safety certification.
Our company offers the 30FB-10G series, a High Reliability 10G Ethernet Filter featuring a 10GbE Magnetic Module and 10G Ethernet Isolation Transformer. This Surface Mount 10G Ethernet Filter is designed as a Low Profile 10G LAN Filter and SMD 10G Ethernet Transformer, adhering to 10G Base-T LAN Filter standards. As a UL 60950-1 Certified LAN Filter and RoHS Compliant 10G Magnetics, this 10G Discrete LAN Filter is perfect for network equipment, telecom devices, wireless networks, VoIP equipment, aviation instruments, and musical instruments.
The LAN filter products of Yuan Dean are RoHS compliant and can be customized.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
Features
- Designed for long haul Gigabit Ethernet 10G Base-T, full duplex applications.
- Supports 4 pairs of category 5 UTP cable.
- Cable interface for isolation and low common mode emissions.
- Compliant with IEEE 802.3an standard.
- Recognized by UL 60950-1.
Applications
- Internet equipment.
- telecom equipment.
- wireless router station.
- VoIP devices.
- Aviation.
- Musical Instruments.
Electrical Specifications@25°C; Operating Temperature 0°C to 70°C
| Part Number | Insertion Loss (dB TYP) | Return Loss (dB @100Ω) | CDMR (dB TYP) | CMR (dB TYP) | Crosstalk (dB TYP) | Hipot (Vrms MIN) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1-300 MHz | 300-400 MHz | 400-500 MHz | 1-40 MHz | 40-500 MHz | 1-500 MHz | -- | -- | -- | 1-100 MHz | 100-500 MHz | ||
| 30FB-10GANL | -1.0 | -1.2 | -2.0 | -18(MIN) | -17+10log(f/40MHz)(MIN) | -22 | -- | -- | -- | -40 | -30 | 1500 |
| Part Number | Insertion Loss (dB TYP) | Return Loss (dB @100Ω) | CDMR (dB TYP) | CMR (dB TYP) | Crosstalk (dB TYP) | Hipot (Vrms MIN) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100 KHz | 1-500 MHz | 1 MHz | 2-100 MHz | 100-200 MHz | 200-400 MHz | 400-500 MHz | 1-250 MHz | 250-500 MHz | 1-100 MHz | 100-300 MHz | 300-500 MHz | 1-100 MHz | 100-500 MHz | ||
| 30FB-13ANL | -3.0 | -2.0 | -22 (TYP) | -25 (TYP) | -22 (TYP) | -11 (TYP) | -8 (TYP) | -30 | -22 | -35 | -30 | -25 | -40 | -30 | 1500 |
Electrical Specifications@25°C; Operating Temperature -40°C to 85°C
| Part Number | Insertion Loss (dB TYP) | Return Loss (dB TYP@100 Ω) | CDMR (dB TYP) | CMR (dB TYP) | Crosstalk (dB TYP) | Hipot (Vrms MIN) | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1-300 MHz | 300-400 MHz | 400-500 MHz | 1-40 MHz | 40-500 MHz | 1-500 MHz | -- | -- | -- | 1-100 MHz | 100-500 MHz | ||||||||
| 30FB-13CNL | -1.0 | -1.2 | -2.0 | -18 | -17+10log(f/40MHz) | -22 | -- | -- | -- | -40 | -30 | 1500 | ||||||
Certification

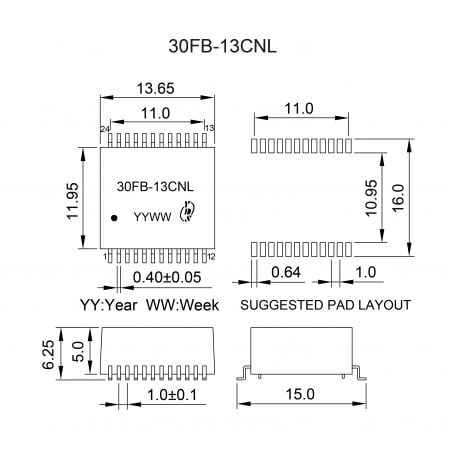

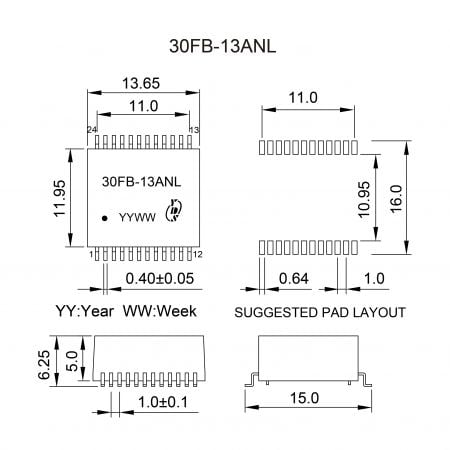

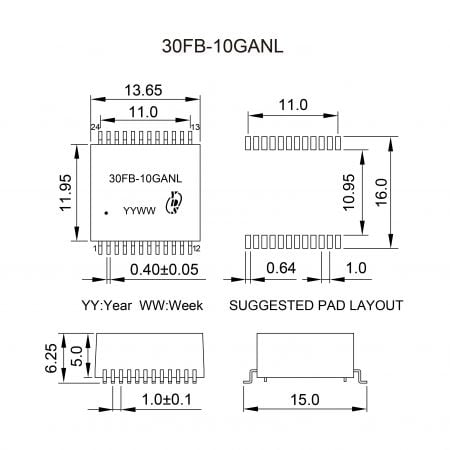

- Mechanicals and Dimensions Related Products Files Download
-
-
