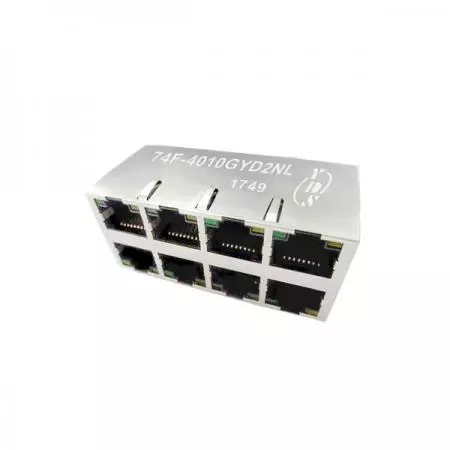

RJ45 Jack With Magnetics, 2x4 Ports, 10/100/1000 Base-T,2250Vdc Isolated,Through Hole Package
‹ › RJ45 Jack with Magnetics, 2x4 Ports, 10/100/1000 Base-T,2250Vdc Isolated,Through hole Package
74F Series
2x4 Port 10/100/1000 Base-T TAB Up & Down RJ45 Jack For HUB and Telecom equipment
2x4 port 10/100/1000 Base-T RJ45 jack with magnetics. 74F series has Tab up/down ports and internal magnetics are 100% electrically tested for HI-POT and functionality. Suitable for CAT 5 and 6 Fast Ethernet cables or better UTP, 350uH minimum OCL with 8mA bias current.
As a professional manufacturer who stays ahead of industry trends, we offer high-density stacked RJ45 connector 2x4 solutions for modern HUBs and telecommunications. This Gigabit RJ45 with Magnetics serves as a robust RJ45 ethernet port with transformer, ensuring peak performance for VoIP equipment and wireless networks. Our integrated RJ45 connector with magnetics features an RJ45 jack with LAN transformer and RJ45 connector with LED magnetics for instant status feedback in cameras. Every RoHS/REACH compliant RJ45 connector functions as a reliable RJ45 magnetic jack or RJ45 modular jack with magnetics. Whether you need an ethernet RJ45 with integrated magnetics or an RJ45 connector with LAN filter, our RJ45 ethernet connector with magnetics guarantees superior signal integrity.
The RJ45 connector products of Yuan Dean are RoHS-compliant, and can be customized for products.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
Features
- 2x4 RJ45 with internal magnetics.
- Suitable for CAT 5 & 6 fast ethernet cable or better UTP.
- Internal magnetics are 100% electrically tested for HI-POT and functionality.
- 350 μH minimum OCL with 8 mA bias current.
Applications
- Telecom equipment.
- HUB.
- Wireless router station.
- VoIP device.
- Video camera.
Electrical Specifications@25°C; Operating Temperature 0°C to 70°C
| Part Number | Turns Ratio | Insertion Loss (dB MAX) | Return Loss (dB MIN) 100Ω ± 15Ω | |||||
|---|---|---|---|---|---|---|---|---|
| TX | RX | 1-100 MHz | 100-125 MHz | 1-40 MHz | 40-60 MHz | 60-80 MHz | 80-100 MHz | |
| 74F-4010GYDZ2NL | 1CT: 1CT | 1CT: 1CT | -1.0 | -1.2 | -16 | -12 | -10 | -8 |
| Part Number | Crosstalk (dB MIN) | Common Mode Rejection (dB MIN) | Hipot (VDC) |
|---|---|---|---|
| 1-100 MHz | 1-100 MHz | @60Hz | |
| 74F-4010GYDZ2NL | -30 | -30 | 2250 |
Certification

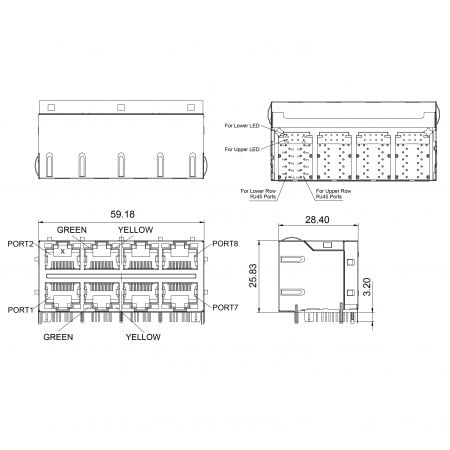

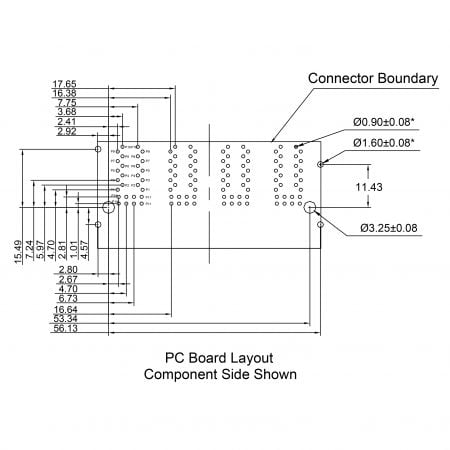

- Mechanicals and Dimensions Related Products Files Download
-
-
