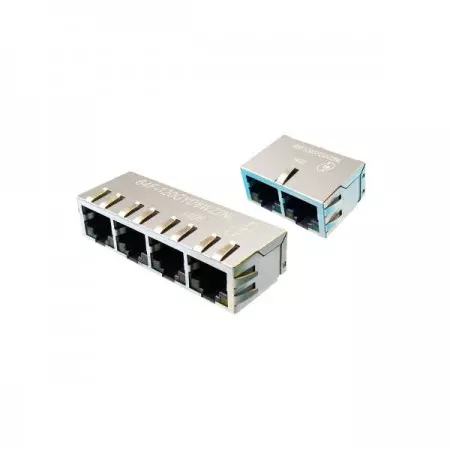

RJ45 Jack With Magnetics,1x2/1x4/1xN Port, 10/100/1000 Base-T,Available With And Without LEDs,2250KVdc Isolated,Through Hole Package
‹ › RJ45 Jack with Magnetics,1x2/1x4/1xN Port, 10/100/1000 Base-T,Available with and without LEDs,2250KVdc Isolated,Through hole Package
6XF Series
1xN Port 10/100/1000 Base-T, TAB Down For HUB and Telecom equipment
10/100/1000 Base-T RJ45 jack with magnetics has 2 port and 4 port specifications. 6XF series has 8 pin and 10 pin signal pin versions, and is Tab down type. This product can be selected with and without LEDs. Internal magnetics are 100% electrically tested for HI-POT and functionality. Suitable for CAT 5 and 6 Fast Ethernet cables or better UTP. 350uH minimum OCL with 8mA bias current, Minimum 2250VDC isolation per IEEE 802.3 requirement. This product has passed the UL 60950-1 safety certification.
As a professional manufacturer constantly exploring new technological frontiers, we provide high-performance RJ45 connector with integrated magnetics for aerospace and industrial equipment. Our integrated RJ45 connector with magnetics range includes stacked RJ45 connector 1xN and multi port RJ45 connector with magnetics, ideal for high-density wireless networks. This IEEE 802.3 RJ45 magnetics solution features an RJ45 jack with LAN transformer and an RJ45 connector with LED magnetics for clear status indication. For telecommunications, our Bulk Gigabit RJ45 with Magnetics and RJ45 magnetic jack ensure reliable connectivity. Whether you need a multi port LAN connector or an ethernet RJ45 with integrated magnetics for measurement technology, our RJ45 connector with LAN filter delivers superior signal integrity for electronic instruments.
The RJ45 connector products of Yuan Dean are RoHS-compliant, and can be customized for products.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
Features
- RJ45 1xN, Tab-down 8-pin & 10-pin with internal magnetics.
- Options: 1x2, 1x4 for 10 / 100 / 1000Base-TX.
- Available with and without LEDs.
- Suitable for CAT 5 and 6 fast ethernet cable or better UTP.
- Internal magnetics are 100% electrically tested for HI-POT and functionality.
- 350uH minimum OCL with 8mA bias current.
- Minimum 2250VDC isolation per IEEE 802.3 requirement.
- Recognized by UL 60950-1.
Applications
- Telecom equipment.
- HUB.
- Wireless router station.
- VoIP device.
- Video camera.
Electrical Specifications@25°C; Operating Temperature 0°C to 70°C
| Part Number | Turns Ratio (± 5%) | TAB Option | LEDs | Insertion Loss (dB TYP) | Return Loss (dB TYP@100Ω ± 15Ω) | |||
|---|---|---|---|---|---|---|---|---|
| TX | RX | L/R | 0.3-100 MHz | 1-10 MHz | 30 MHz | 60-80 MHz | ||
| 62F-1204GYD2NL | 1CT: 1CT | 1CT: 1CT | DOWN | G/Y | -1.2 | -18 | -16 | -12 |
| 64F-1204GYD2NL | 1CT: 1CT | 1CT: 1CT | DOWN | G/Y | -1.2 | -18 | -16 | -12 |
| Part Number | Crosstalk (dB TYP) | Common Mode Rejection (dB TYP) | Hipot (VDC) | |||
|---|---|---|---|---|---|---|
| 1-10 MHz | 30-60 MHz | 60-100 MHz | 1-50 MHz | 50-130 MHz | ||
| 62F-1204GYD2NL | -40 | -35 | -30 | -30 | -20 | 2250 |
| 64F-1204GYD2NL | -40 | -35 | -30 | -30 | -20 | 2250 |
Certification

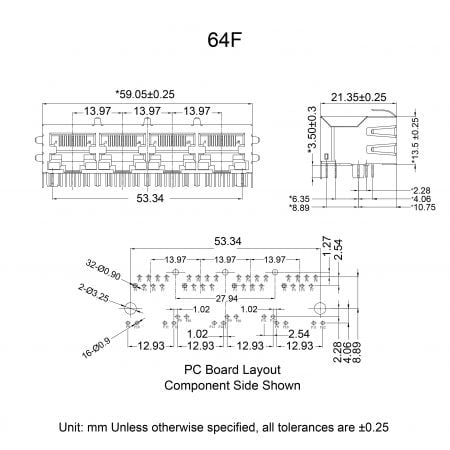

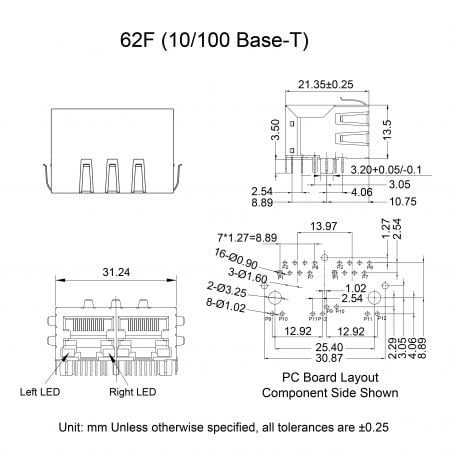

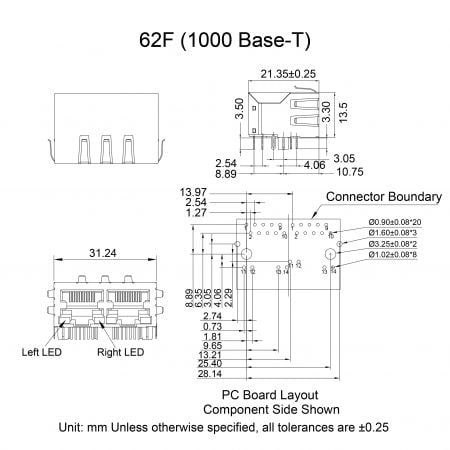

- Mechanicals and Dimensions Related Products Files Download
-
-
