68D1 Series
YDS
3W 2:1 Wide Input Voltage 1.5KV Isolation DC to DC Power Conversion
2:1 wide input voltage.
3 watt 24PIN DIL package.
Efficiency To 80%.
1500Vdc isolation.
MTBF:>1,500,000 hrs.
Operating temperature:-40°C to +85°C.
| Part Number | Input Voltage | Output Voltage | Output Current | Efficiency |
|---|---|---|---|---|
| Vdc | Vdc | mA | %Typ | |
| 68D1-05S05CN | 4.5-9 | 5 | 600 | 75 |
| 68D1-05S12CN | 4.5-9 | 12 | 250 | 77 |
| 68D1-05S15CN | 4.5-9 | 15 | 200 | 80 |
| 68D1-12S05CN | 9-18 | 5 | 600 | 75 |
| 68D1-12S12CN | 9-18 | 12 | 250 | 80 |
| 68D1-12S15CN | 9-18 | 15 | 200 | 80 |
| 68D1-12D05CN | 9-18 | ± 5 | ± 300 | 75 |
| 68D1-12D12CN | 9-18 | ± 12 | ± 125 | 75 |
| 68D1-12D15CN | 9-18 | ± 15 | ± 100 | 75 |
| 68D1-24S05CN | 18-36 | 5 | 600 | 78 |
| 68D1-24S12CN | 18-36 | 12 | 250 | 80 |
| 68D1-24S15CN | 18-36 | 15 | 200 | 80 |
| 68D1-24D05CN | 18-36 | ± 5 | ± 300 | 75 |
| 68D1-24D12CN | 18-36 | ± 12 | ± 125 | 80 |
| 68D1-24D15CN | 18-36 | ± 15 | ± 100 | 80 |
| 68D1-48S05CN | 36-72 | 5 | 600 | 78 |
| 68D1-48S12CN | 36-72 | 12 | 250 | 80 |
| 68D1-48S15CN | 36-72 | 15 | 200 | 80 |
| 68D1-48D05CN | 36-72 | ± 5 | ± 300 | 75 |
| 68D1-48D12CN | 36-72 | ± 12 | ± 125 | 80 |
| 68D1-48D15CN | 36-72 | ± 15 | ± 100 | 80 |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Types | 2:1 | ||||
| Filter | Capacitor |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | ± 2 | % | |||
| Short Circuit Protection | Continuous | ||||
| Line Regulation | ± 0.5 | % | |||
| Load Regulation | Single | ± 0.5 | % | ||
| Load Regulation | Dual | ± 2.0 | % | ||
| Ripple & Noise | BW=DC To 20MHz | 100 | mVp-p | ||
| Transient response setting time | 50% load step change | 350 | us |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Switching Frequency | 200 | KHz | |||
| Operating Temperature | -40 | +85 | ℃ | ||
| Humidity | Non Condensing | 95 | % | ||
| Cooling | Free air Convection | ||||
| Case Material | Nickel Coated Copper With Non-Conductive Base | ||||
| Weight | 16.2 | g | |||

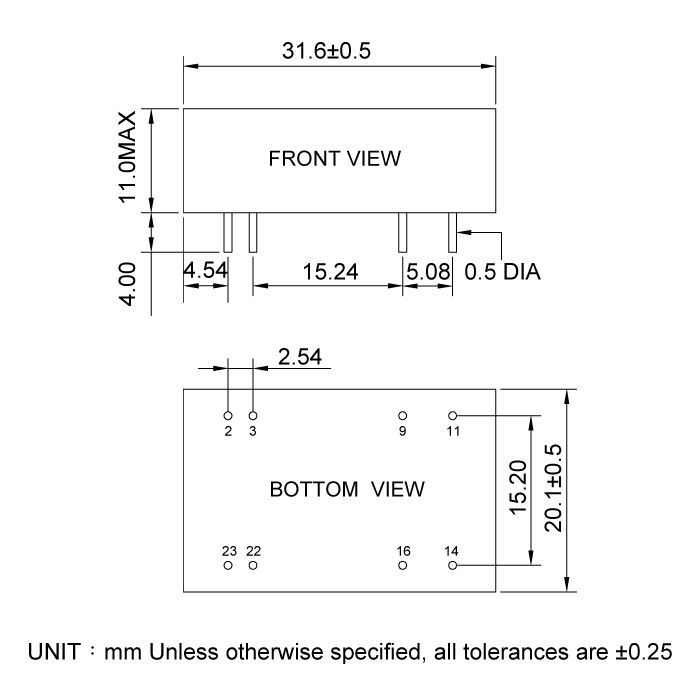

| Dimensions | 31.60 x 20.10 x 11.0 | mm | |||
Files Download
68D1-Series.pdf
