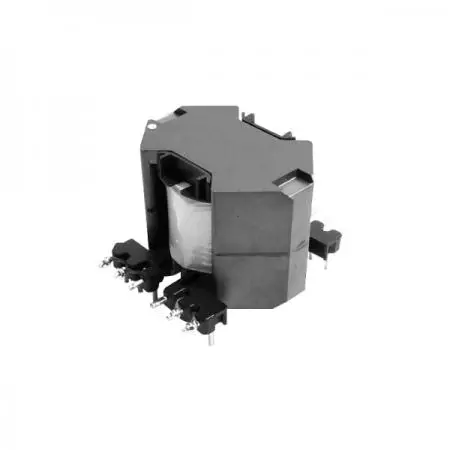

Inverter Transformer, Up to 100W Output Power, 110Vac or 230Vac Output Voltage,RM14 Core Series Components Manufacturer

RM14 Series

100W Inverter Transformer Module For Industrial Power Supply Module and Uninterruptible Power Supply Module

Maximum power of this inverter transformer is 100W. Inverter transformer is a kind of work in DC to AC transformer under the module. RM14 series operates at 57kHz with 20~55 VDC input. It can be used in solar energy, vehicle power supply system, uninterruptible power supply, etc.

As an RM14 transformer OEM manufacturer, we offer Custom RM14 transformer design for industrial modules and solar inverters. Our DIP RM14 high frequency transformer with RM14 ferrite core magnetics ensures a Stable RM14 magnetic core and High power RM14 transformer performance. This High reliability power transformer is ideal for RM14 flyback transformer needs and Telecom rectifier RM14 transformer circuits. We are your Bulk RM14 transformer supplier for RM14 transformer for EV charging and storage systems.

Yuan Dean can provide a variety of transformers, such as 6PIN DIL/DIP/SMD/14PIN DIP/SOIC and other packaging methods. All products are RoHS compliant, and can accept product customization.

Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!

Quantity:



Inquire Add to Basket

Product Description1

100W Power Inverter Transformers(RM14 Series)

Description

Inverter transformer is a kind of work in DC to AC transformer under the module ;
Used in solar energy,vehicle power supply system, uninterruptible power supply, etc.
Flyback topology structure.
Operate at 57kHz with 20~55 VDC input.
Rectified sine wave output.
Maximum power:100W.
Hipot voltage: 3000Vrms,one minute isolation primary to secondary;1500Vrms,one minute isolation windings to core.
Custom designs available.

Applications

Industrial Power Supply Modules
Solar Micro-inverter Sub-circuits
Vehicle Power Conversion Units
Telecom DC-AC Inverter Boards
Uninterruptible Power Supply (UPS) Modules
Outdoor Portable Energy Storage Systems

Other

Operating temperature range: -40℃ to +85℃.
Storage temperature range: -40℃ to +85℃.
RoHS Compliant version is available.

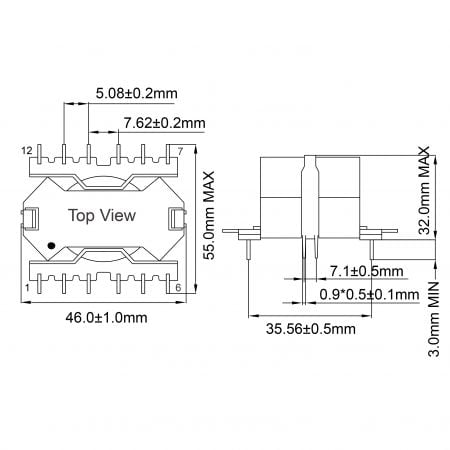

Electrical Specifications

Part Number	Turn Ratio Pri:Sec	L ① (uH±10%)	Input	LK ②max(uH)	Output Voltage	DCR ③ max(Ohms)		L at Ipk(10A) ④ min(uH)
Part Number	Turn Ratio Pri:Sec	L ① (uH±10%)	Input	LK ②max(uH)	Output Voltage	Pri	Sec	L at Ipk(10A) ④ min(uH)
14RM-5501ENL	1:7	55.0	20~55 VDC,57KHZ	2.95uH	230VAC,100W	0.0475	0.36	44.0
14RM-5502ENL	1:4	55.0	20~55 VDC,57KHZ	2.75uH	110VAC,100W	0.0480	0.19	38.5

① L(NOM)=Nominal Inductance is for pri winding, measured at 150KHz,1.0Vrms
② Leakage inductance measured at 150KHz,1.0Vrms between Pri other pins shorted
③ DCR for the primary is with windings connected in parallel
④ Ipk is the peak current drawn at minimum input voltage
