Custom Inverter Transformer manufacturer for solar and AC main power supply system

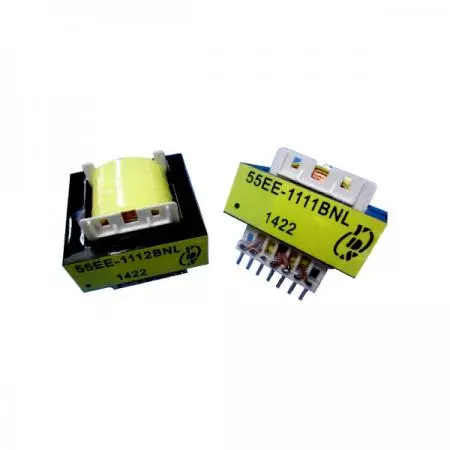

DC to AC transformers are under the module. EE55 Series features Push-pull topology structure, and it can operate at 100kHz with 12 VDC input. This product can be used in solar energy, vehicle power supply system, uninterruptible power supply, etc.
As a professional manufacturer with a flair for developing new technologies, we deliver a high-performance power inverter transformer and high frequency inverter transformer for AC main power and industrial control. Our high power transformer inverter and industrial inverter transformer solutions feature high capacity ferrite transformer technology, including ee55 ferrite core transformer and custom ee55 transformer options. Designed as a magnetic core inverter transformer or switching inverter transformer, these units are suitable for Full-Bridge, Half-Bridge, Push-Pull and LLC Resonant Topologies, ensuring a reliable transformer for high power inverter in telecom and electronic instruments.
Yuan Dean can provide a variety of transformers, such as 6PIN DIL/DIP/SMD/14PIN DIP/SOIC and other packaging methods. All products are RoHS compliant, and can accept product customization.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
| Quantity: | |
|---|---|
| Part Number | Turn Ratio Pri1:Sec: Pri2 | L ① (uH±25%) | Input | LK ②max(uH) | Output Voltage |
|---|---|---|---|---|---|
| 55EE-1111BNL | 1:57.5:1 | 109 | 12VDC,100KHZ | 0.15uH | 400VAC,1000W |
| 55EE-1112BNL | 1:32:1 | 109 | 12VDC,100KHZ | 0.20uH | 220VAC,1500W |
① L(NOM)=Nominal Inductance is for pri winding, measured at 1KHz,0.25Vrms
② Leakage inductance measured at 100KHz,0.1Vrms between Pri other pins shorted
