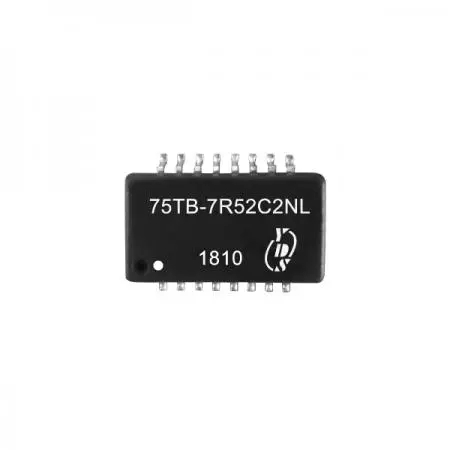

FDDI Over Twisted Pair Dual Electronic Transformer For Internet equipment and AC main power supply system
FDDI Over Twisted Pair Dual Transformers of 75TB series are designed to withstand infrared and vapor phase soldering. With SOIC surface mount packages and support Fddi over twisted pair chipsets.This product uses Mlt-3,Qpr-4,Nrzi Or 4b/5b Encoding Schemes.
As a professional manufacturer constantly exploring new technological frontiers, we provide the FDDI Dual Port Transformer Module Over Twisted Pair High Isolation Communication Magnetics for high-end telecommunications and HUBs. This high reliability transformer module acts as an essential communication transformer for FDDI chipset and FDDI PHY interface transformer, ensuring seamless integration with VoIP equipment and cameras. Our range includes the legacy network transformer FDDI and dual port signal transformer telecom equipment, serving as a versatile network transformer or telecom transformer. Whether for wireless networks or specialized hardware, this signal transformer provides the stability required for modern data transmission.
Yuan Dean can provide a variety of transformers, such as 6PIN DIL/DIP/SMD/14PIN DIP/SOIC and other packaging methods. All products are RoHS compliant, and can accept product customization.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
| Quantity: | |
|---|---|
| Part Number | Turns Ratio | Primary Inductance OCL (uH MIN.) | Rise Time Tr (10-90%)nS | Interwinding Capacitance Cww (pF MAX.) | Leakage Inductance LL (uH MAX.) | DC Resistance (Ω MAX.) | Crosstalk 1-200MHz (dB TYP.) | HIPOT Vrms |
|---|---|---|---|---|---|---|---|---|
| 75TB-2501A2NL | 1:1:1:1 | 25 | 3.0 | 6.0 | 0.15 | 0.22 | -40 | 2000 |
| 75TB-7501A2NL | 1:1:1:1 | 70 | 3.0 | 6.0 | 0.15 | 0.22 | -40 | 2000 |
| 75TB-1411A2NL | 1:1:1:1 | 140 | 3.0 | 6.0 | 0.15 | 0.22 | -40 | 2000 |
| 75TB-2502BNL | 1:1 | 25 | N/A | 12.0 | 0.15 | 0.22 | -40 | N/A |
| 75TB-2511A2NL | 1:1:1:1 | 250 | 3.0 | 7.5 | 0.15 | 0.24 | -40 | 2000 |
| 75TB-3001C2NL | 1:1 | 30 | 1.6 | 5.0 | 0.10 | 0.2 | - | 2000 |
| 75TB-1501C2NL | 1:1 | 15 | 0.8 | 5.0 | 0.10 | 0.2 | - | 2000 |
| 75TB-7R52C2NL | 1:1 | 7.5 | 0.5 | 5.0 | 0.10 | 0.2 | - | 2000 |
| 75TB-6001C2NL | 1:1 | 60 | 2.0 | 5.5 | 0.10 | 0.2 | - | 2000 |
