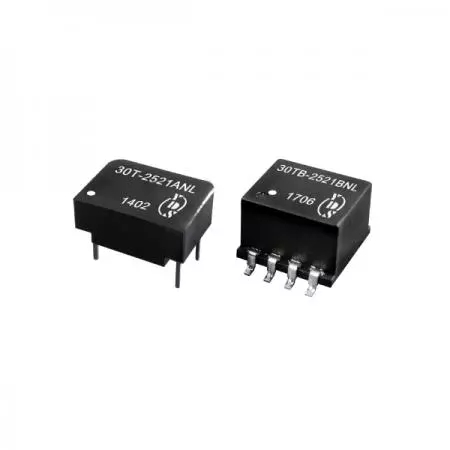

Isolated electronic Transformer For Digital Audio Data Transmission
Digital audio data transmission transformer of the 30T/30TB series operates at a transmission rate of 1 to 7 Mbps, a controlled rise time of up to 25nsec, and a high isolation voltage (minimum 2KV). This product has passed the UL 60950-1 safety certification.
Our company offers the 30T/30TB series, a High Reliability Digital Audio Transformer featuring a Low Distortion Audio Transformer and Audio Impedance Matching Transformer. This SMD/DIP Audio Transformer provides a 1:1 Audio Isolation Transformer solution, serving as a high-performance Digital Audio Transformer. As a UL 60950-1 Certified Audio Transformer and RoHS/REACH Compliant Audio Magnetics, it is perfect for network equipment, AC main power systems, electronic instruments, industrial control, and telecom equipment.
Yuan Dean can provide a variety of transformers, such as 6PIN DIL/DIP/SMD/14PIN DIP/SOIC and other packaging methods. All products are RoHS compliant, and can accept product customization.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
| Quantity: | |
|---|---|
| Part Number | Tums Ratio (± 5%) | Primary Inductance (mH± 20%) | LL SEC. (μH max.) | Rise Time (nsec) max | Et (V-μ sec) max | HI POT Vrms | Schematic |
|---|---|---|---|---|---|---|---|

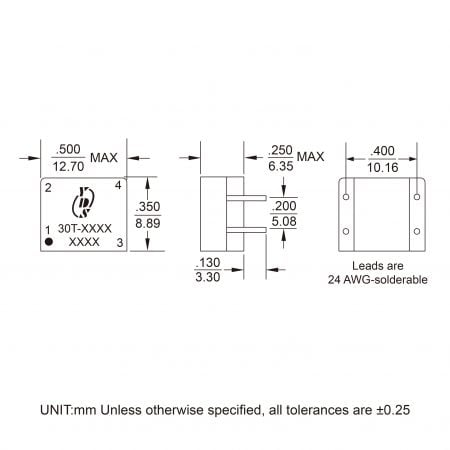

| 30T-2521ANL | 1:1 | 2.5 | 0.50 | 25 | 20 | 2000 | A |

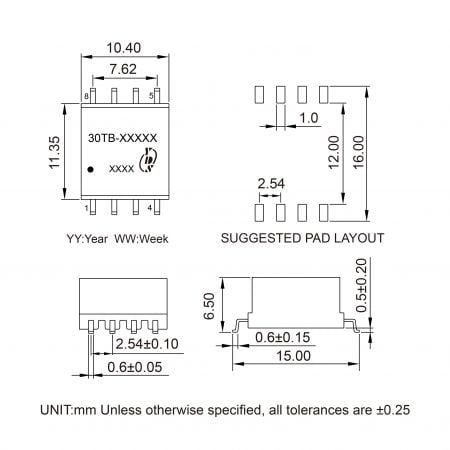

| 30TB-2521BNL | 1:1 | 2.5 | 0.50 | 25 | 20 | 2000 | B |
