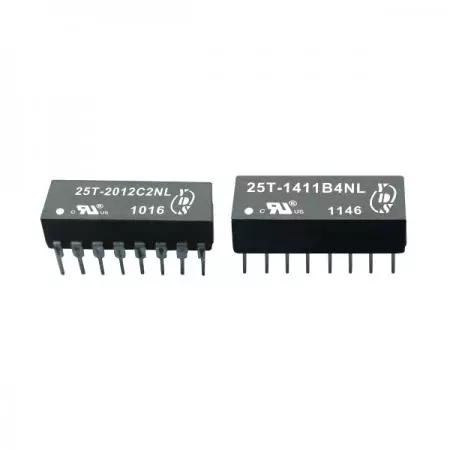

Isolated electronic Transformer, DIL16 Package For Internet equipment and AC main power supply system
10 Base-T isolation transformer that meets or exceeds the IEEE 802.3 standard. Surface mount, IC grade, transfer-molded package withstands 235°C peak temperature profile.This product has passed UL 1950 certification.
This Series offers Industrial Ethernet Transformers and Ethernet Isolation Transformers in a LAN Magnetics DIL Package. These 10 Base-T Transformer DIP and Through-hole Pulse Transformer solutions are Board Mount Transformers and RoHS/REACH compliant transformers, ideal for networking, AC main power, electronic instruments, industrial control, and telecom equipment.
Yuan Dean can provide a variety of transformers, such as 6PIN DIL/DIP/SMD/14PIN DIP/SOIC and other packaging methods. All products are RoHS compliant, and can accept product customization.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
| Quantity: | |
|---|---|
| Part Number | Tums Ratio (±5%) | Primary Pins | Sine Wave Inductance OCL’ (µH MIN) | Interwinding Capacitance CWW’ (pF MAX) | |
|---|---|---|---|---|---|
| Transmit | Receive | ||||
| 25T-2012C2NL | 1CT:1CT | 1CT:1CT | 1-3/6-8 | 200 | 15 |
| 25T-1411B4NL | 1:1 | 1:1 | 1-2/3-4/5-6/7-8/ | 140 | 17 |
| Part Number | Leakage Inductance LL’ (µH MAX) | DCR (ΩMAX) | HI-Pot (Vrms) | Schem. | mech. |
|---|---|---|---|---|---|

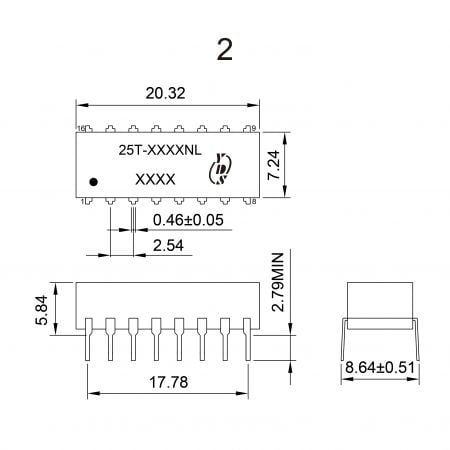

| 25T-2012C2NL | 0.3 | 0.7 | 1500 | C | 2 |

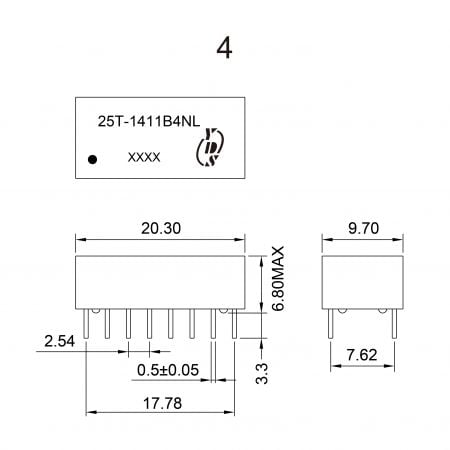

| 25T-1411B4NL | 0.6 | 0.5 | 600 | B | 4 |
