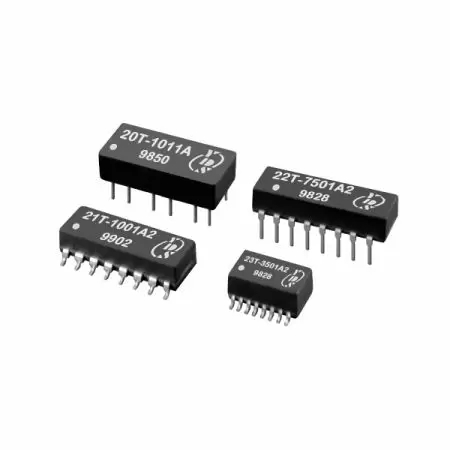

Isolation electronic Transformer For Internet and Telecom equipment equipment
Isolation transformer for ethernet with low leakage inductance and coupling. The capacitance for faster rise times. Small from faster, 50 mil lead spacing. These series have through hole, auto-insertable, surface mount, and 16 pin package types.
High-performance SMD/DIP LAN and Pulse Transformers for Ethernet isolation. Ideal for industrial equipment, main power, sensing, networking, and telecom/datacom. Supports Smart Grid and custom magnetic module solutions.
Yuan Dean can provide a variety of transformers, such as 6PIN DIL/DIP/SMD/14PIN DIP/SOIC and other packaging methods. All products are RoHS compliant, and can accept product customization.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
| Quantity: | |
|---|---|
| Part Number | Tums Ratio (±5%) | Primary Pins | Primary Sine Wave OCL(uH) (+/- 20%) | Primary ET-Constant (V-us MIN) | Rise Time | Interwinding Capacitance CWW' (pF MAX) | Leakage Inductance LL’ (µH MAX) | PRI.DCR (ΩMAX) | Shem. | Hipot (Vrms) |
|---|---|---|---|---|---|---|---|---|---|---|
| 23T-4001A2NL | 1:1 | 1-2/4-5/7-8 | 40(min) | 2.1 | 3.0 | 8 | 0.20 | 0.25 | A | 2000 |
| 20T-7501A2NL | 1:1 | 1-2/4-5/7-8 | 75 | 2.4 | 3.5 | 10 | 0.25 | 0.30 | A | 2000 |
| 22T-1011ANL | 1:1 | 1-2/4-5/7-8 | 100 | 2.1 | 3.0 | 10 | 0.20 | 0.30 | A | 500 |
